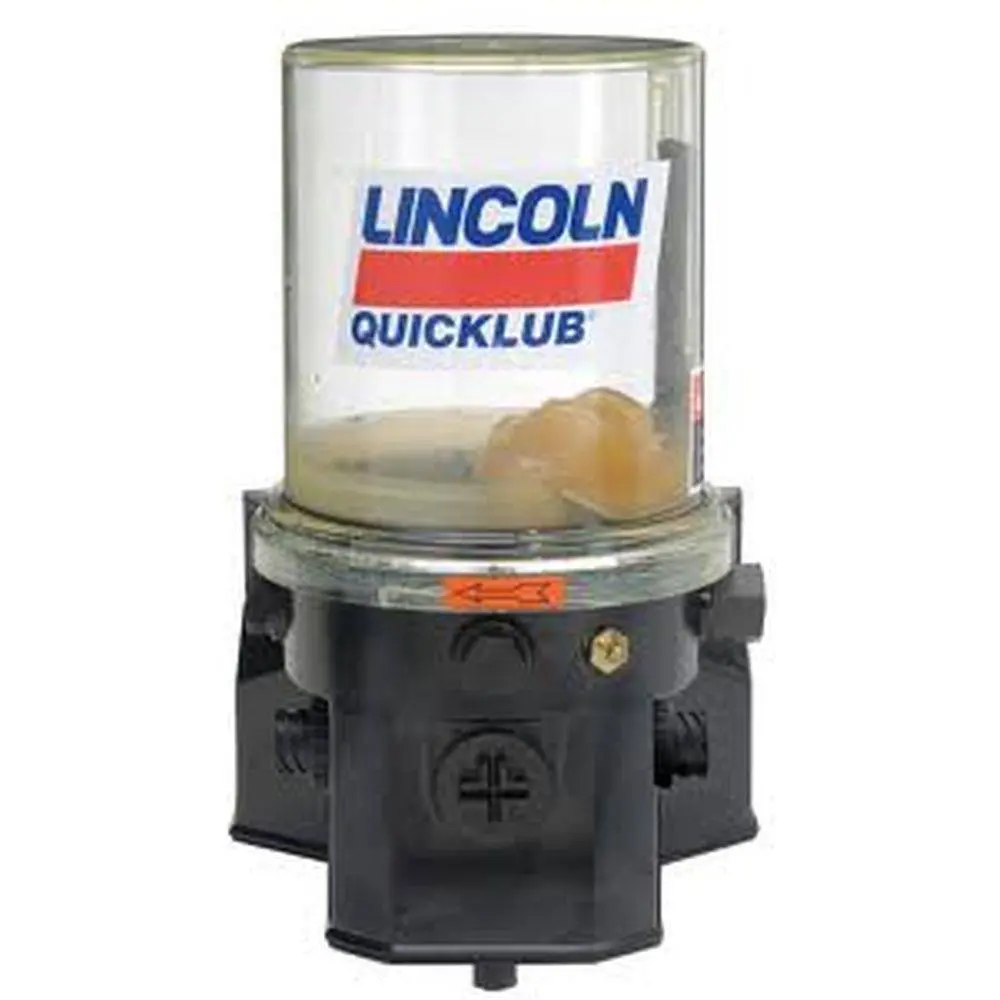

Lincoln Electric Grease Pump W/ RemoteLinc Technology – P203 Series – 12V
These pumps are electrically operated and are used in progressive-type automated lubrication systems. The proven and reliable P203 pump has been designed to develop high operating pressures allowing it to supply NLGI #2 grease in most ambient temperatures.
Easily interfaces with OEM and aftermarket telematics systems.
Allows users to: Remotely monitor and detect low lubricant levels and system faults. Reduce cost by receiving immediate, real-time alerts when lubricant is low or the system is in fault.
- Lubricant Outlet: 1/8″ NPT (F)
- Max. System Operating Pressure: 5000 psi
- Electrical Requirements: 12 VDC
- Reservoir Capacity: 2 liter
| Model No. | 94223-12 |
| Input | 12 VDC @3.5 amps, 24 VDC @ amps 94-265 VAC (50 to 60 Hz) |
| Enclosure Rating | IP6K9K |
| Interval Between Lube Cycles | Min. 4 minutes/Max. 15 hours |
| Pump Output | 0.171 cu. in./min/2.8 cc/min |
| Outlet Connection | 1/8″ NPT (f) |
| Reservoir Capacity | 2-,-4,8- or 15-liter |
| Maximum Recommended Operating Measure | 5000 psi/350 bar |
| Lubricant | Greases NLGI grade 2 (depending on operating temperature and type of lubricant) |
| Temperature Range | -13°F to +158°F |
| Pressure Relief Valve | 4000 psi, ±250 psi/276 bar, ±17 bar |
