Description

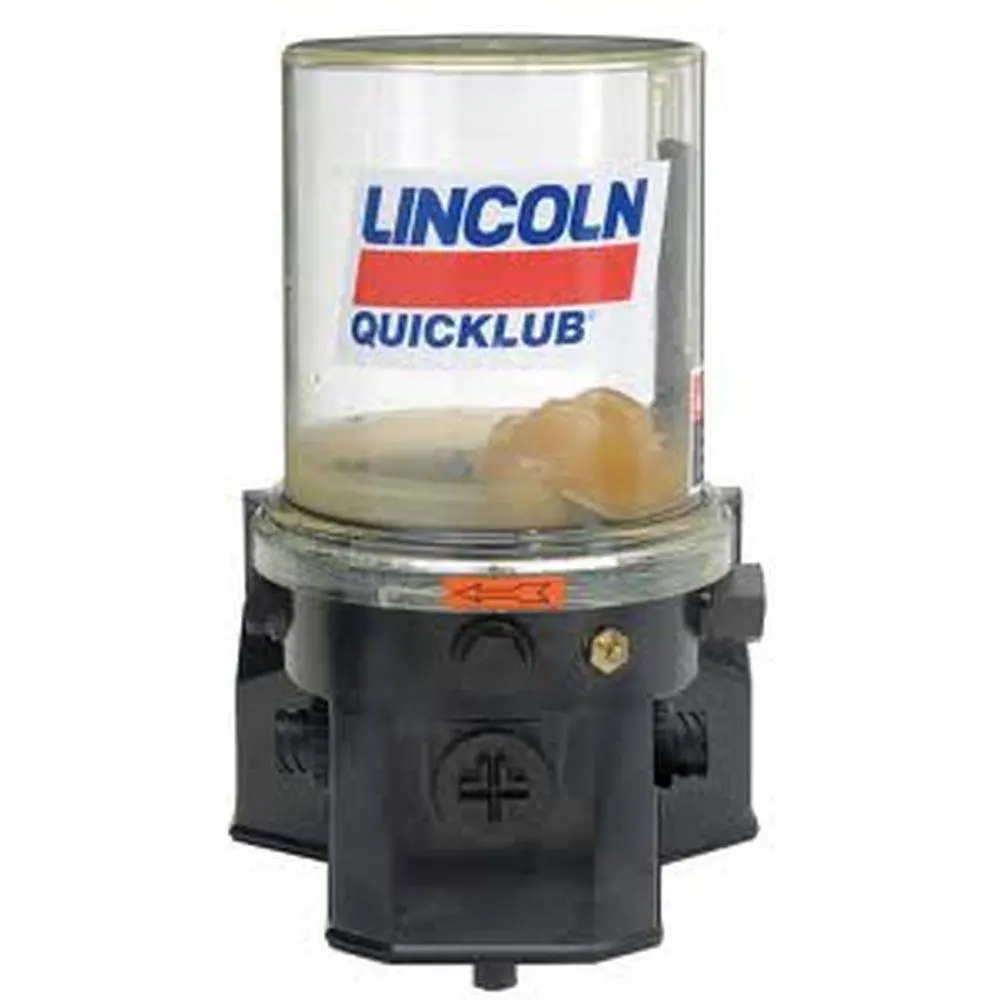

Lincoln Electric Grease Pump W/ Timer – No Lid
These pumps are electrically operated and are used in progressive-type automated lubrication systems. The proven and reliable P203 pump has been designed to develop high operating pressures allowing it to supply NLGI #2 grease in most ambient temperatures.
Versatile, compact and economical, this pump can be enhanced with several options including an integrated controller, low-level monitoring and system monitoring. Special configurations are available upon request.
Electric Grease Pumps with Integrated On/Off Controller:
- Output/Min Per Element: .171 cu. in./2,8 cc.
- Lubricant Outlet: 1/8″ NPT (f)
- Maximum System Operating Pressure: 5000 psi/350 bar
- Enclosure Rating: IP6K9K
- Operating Temperature Range: Min. -13°F/-25°C / Max. 158°F/70°C
- Reservoir Capacity: 2-, 4-, 8- or 15-liter
- Reservoir Fill Method: By grease fitting
- Pressure Relief Valve: 4000 psi, +/- 250 psi/276 bar, +/- 17 bar
| Model No. | 94412LDL |
| Electrical Requirements | 12 VDC/3.5 Amps |
| Interval Timer Setting Minimum (on time) | 2 minutes |
| Interval Timer Setting Maximum (on time) | 30 minutes |
| Interval Timer Setting Minimum (off time) | 1 hour |
| Interval Timer Setting Maximum (off time) | 15 hours |
| Reservoir Capacity | 8 lb. |
