Description

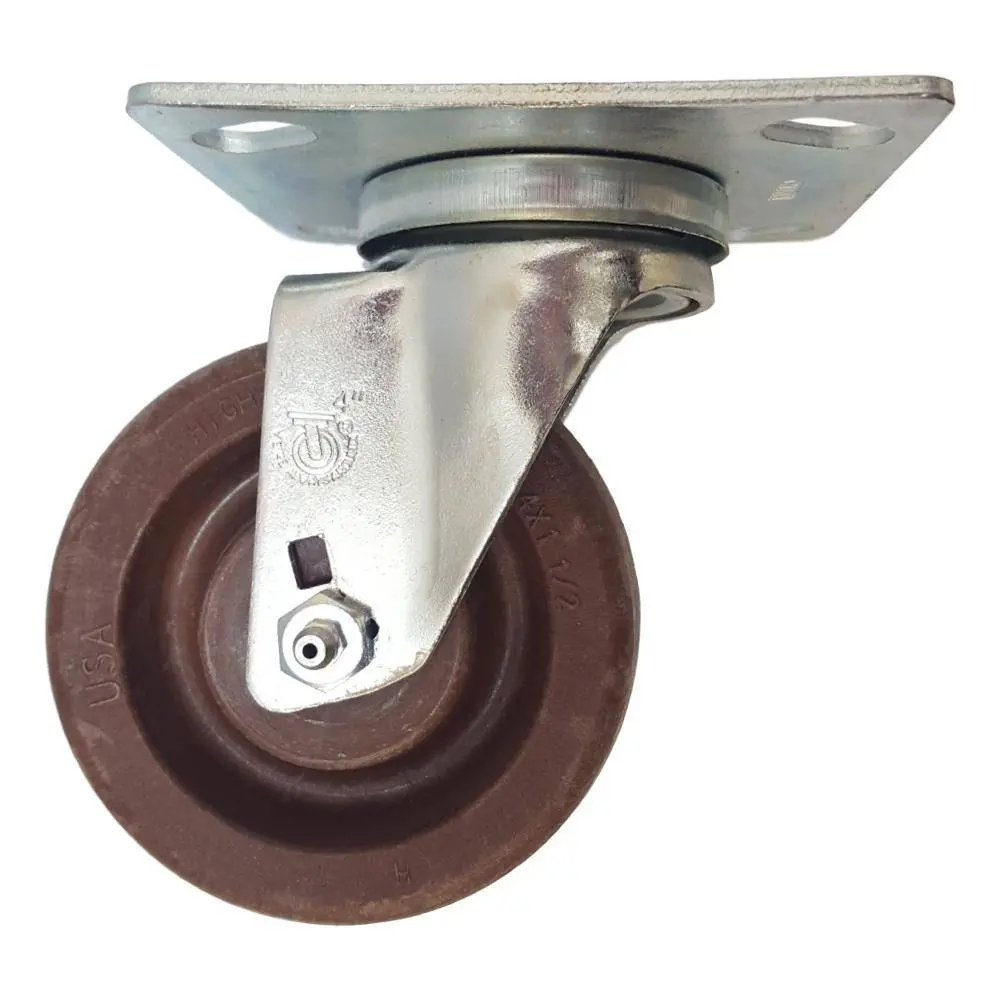

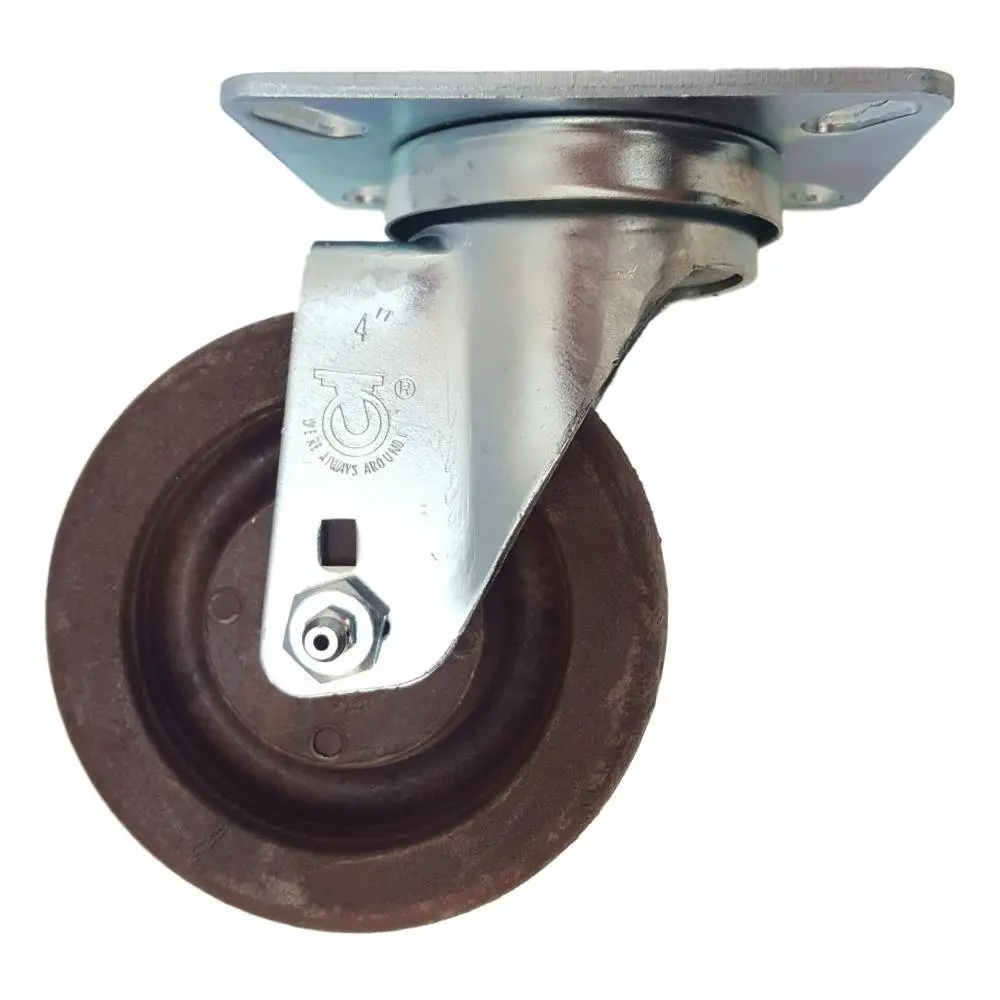

4″ x 1-1/2″ High Temp. Brimstone Wheel Swivel Caster
Brimstone wheels are made out of an exclusively engineered thermo compound designed for high temperature, autoclave, and steam cleaning wash-down applications. They provide excellent resistance to oil, grease, salt, and most acids, chemicals, and cleaning solutions.
Tread & Core: Solid Cast Thermo Compound
Bearing: Sleeve Bearing/ also known as a bushing
From our Caster Expert: “These casters use a bushing and are ungreased. They can be left that way, but they may build up rolling resistance over time. It’s recommended to add high-temp grease to make the casters last longer and roll more smoothly. These casters come with a zerk axle for adding grease. “
Rig Options:
– Zinc-plated swivel caster with swivel dust cap, 2-3/8″ x 3-5/8″ mounting plate
– Zinc-plated swivel caster with swivel dust cap, 3-1/8″ x 4-1/8″ mounting plate
– Zinc-plated swivel caster with swivel dust cap, 4″ x 4-1/2″ mounting plate
- Capacity: 350 Lbs.
- Color: Brown
- Durometer: Shore D 85 (+/-5)
- Temperature Range: -45°F to 425°F continuous, up to 550°F intermittent
| Load Capacity | 350 Lbs. |
| Wheel Diameter | 4″ |
| Tread Width | 1-1/2″ |
| Tread Type | Solid Cast Thermo Compound |
| Core Type | Solid Cast Thermo Compound |
| Bearing Type | Sleeve Bearing |
| Wheel Color | Brown |
| Overall Height | 5-1/8″ |
| Swivel Radius | 3-13/32″ |
| Plate Size | – 2-3/8″ x 3-5/8″ (06 plate) – 3-1/8″ x 4-1/8″ (11 plate) – 4″ x 4-1/2″ (17 plate) |
| Bolt Hole Pattern | – 1-3/4″ x 2-7/8″ to 1-3/4″ x 3″ (06 plate) – 1-3/4″ x 2-15/16″ to 2-3/8″ x 3-3/8″ (11 plate) – 2-5/8″ x 3-5/8″ to 3″ x 3″ (17 plate) |
| Bolt Hole Diameter | – 5/16″ (06 plate) – 3/8″ (11 plate) – 3/8″ (17 plate) |
| Durometer | Shore D 85 (+/-5) |
| Temperature Range | -45°F to 425°F continuous, up to 550°F intermittent |
