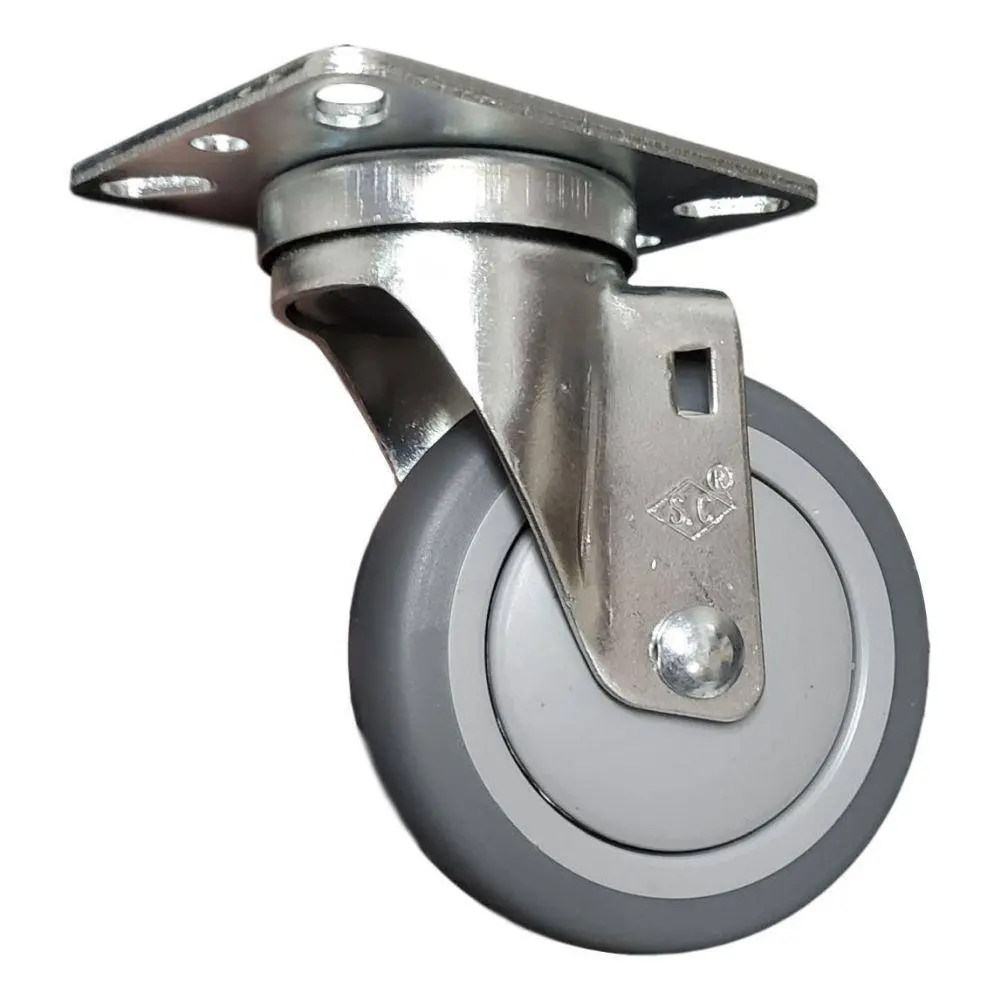

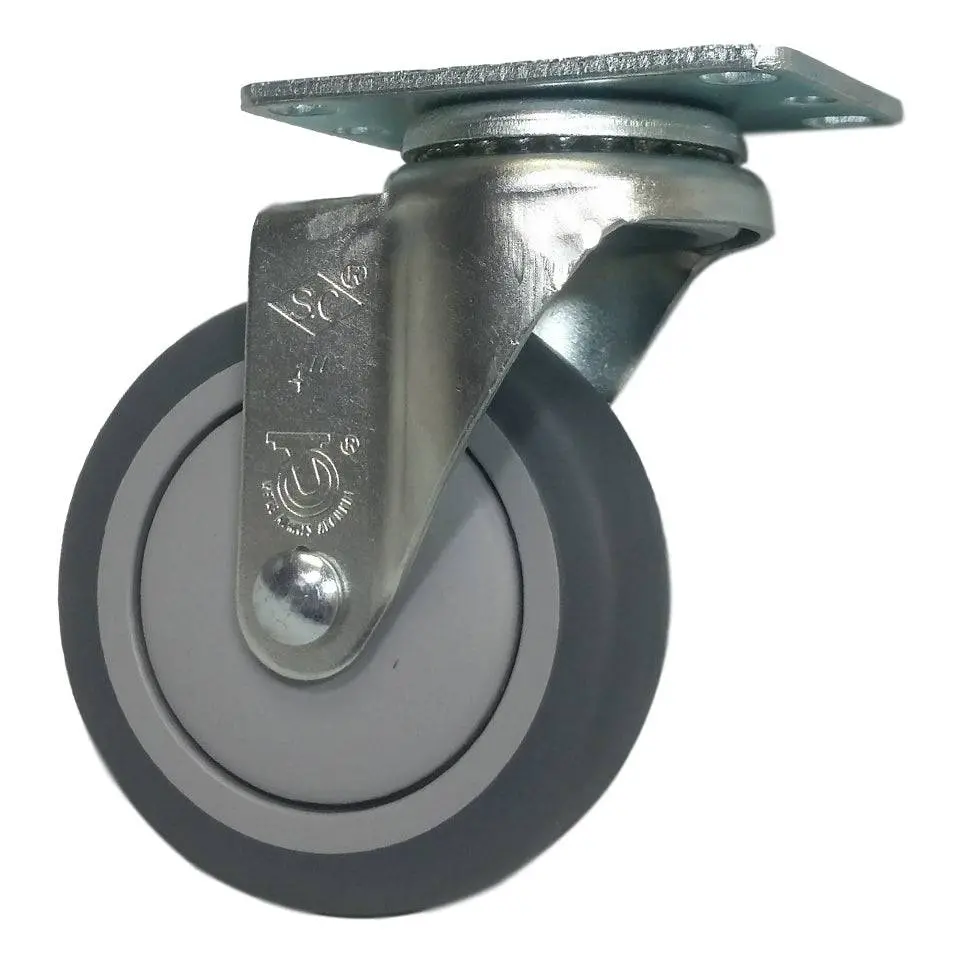

4″ x 1-1/4″ Thermo-Pro Wheel Swivel Caster
The thermo-pro wheel is made of highly resilient and versatile thermoplastic rubber providing shock absorption and floor protection. Also great for wash-down applications this wheel is ideal for warehouses, concrete, tile, and hardwood floors. This wheel is non-marking and allows for quiet rollability in a variety of different situations.
Tread: Non-Marking Thermoplastic Rubber
Core: Solid Polyolefin
Bearing: Ball Bearing
Rig: Zinc-Plated Swivel Rig With Swivel Dust Cap, Multiple Mounting Plate Options
- Capacity: 250 Lbs.
- Color: Gray on Gray
- Durometer: Shore A 75 (+/-5)
- Temperature Range: -20° F to 180° F
| Load Capacity | 250 Lbs. | |
| Wheel Diameter | 4″ | |
| Tread Width | 1-1/4″ | |
| Tread Type | Non-Marking Thermoplastic Rubber | |
| Core Type | Polyolefin Core | |
| Bearing Type | Sealed Precision Bearing | |
| Wheel Color | Gray/Gray | |
| Overall Height | 5-1/8″ | |
| Swivel Radius | 3-7/16″ | |
| 2-3/8″ x 3-5/8″ Plate | Bolt Hole Pattern | 1-3/4″ x 2-7/8″ slotted to 3″ |
| Bolt Hole Diameter | 5/16″ | |
| 3-1/8″ x 4-1/8″ Plate | Bolt Hole Pattern | 1-3/4″ x 2-15/16″ slotted to 2-3/8″ x 3-3/8″ |
| Bolt Hole Diameter | 3/8″ | |
| Durometer | Shore A 65 (+/-5) | |
| Temperature Range | -45° F to 180° F | |
