Description

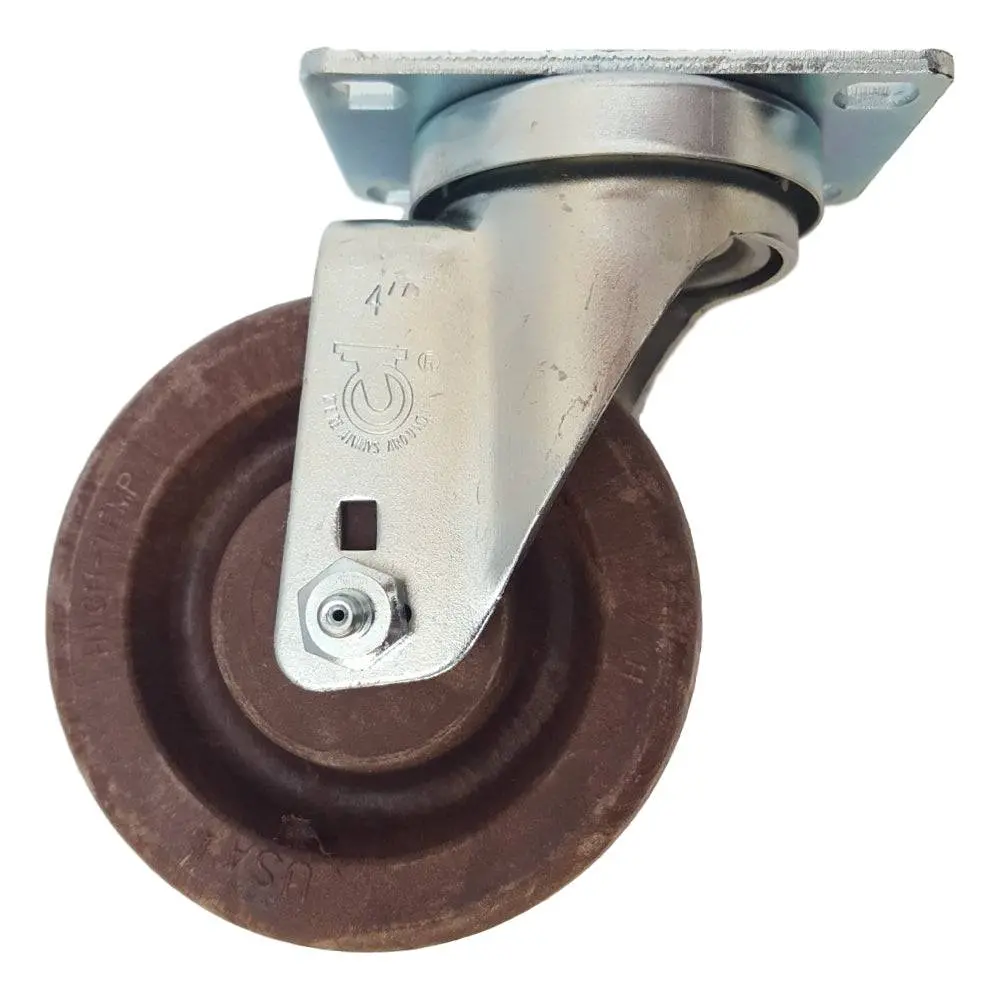

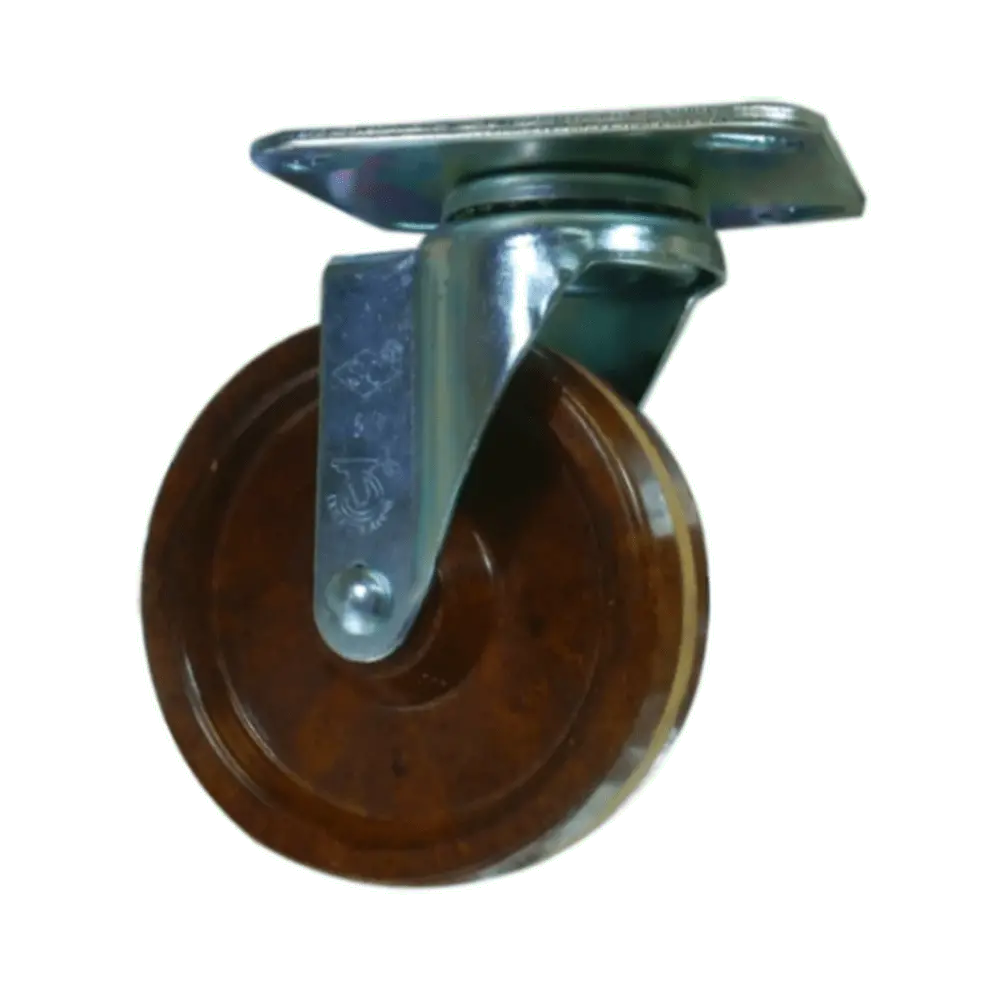

4″ x 1-1/2″ High Temp. Phenolic Wheel Swivel Caster
The high temp phenolic wheel combines phenolic resin and macerated canvas, making it ideal for dry heat applications. It has exceptional resistance to oil, grease, and most acids, chemicals, and cleaning solutions.
Tread & Core: Phenolic Resin With Macerated Canvas
Bearing: Stainless Steel Top Head Bearing
Rig: Zinc-Plated Swivel Caster With Swivel Dust Cap, 4″ x 4-1/2″ Mounting Plate
- Capacity: 350 Lbs.
- Color: Brown
- Durometer: Shore D 95 (+/-5)
- Temperature Range: -40° F to 475° F continuous, 550° F intermittent
| Load Capacity | 350 Lbs. |
| Wheel Diameter | 4″ |
| Tread Width | 1-1/2″ |
| Tread Type | Phenolic Resin With Macerated Canvas |
| Core Type | Phenolic Resin With Macerated Canvas |
| Bearing Type | Stainless Steel Top Head Bearing |
| Wheel Color | Brown |
| Overall Height | 4-9/16 |
| Swivel Radius | 3-1/4 |
| Plate Size | 4 x 4-1/2″ |
| Bolt Hole Pattern | 2-5/8″ x 3-5/8″ to 3″ x 3″ |
| Bolt Hole Diameter | 3/8″ |
| Durometer | Shore D 95 (+/-5) |
| Temperature Range | -40° F to 475° F continuous, 550° F intermittent |
