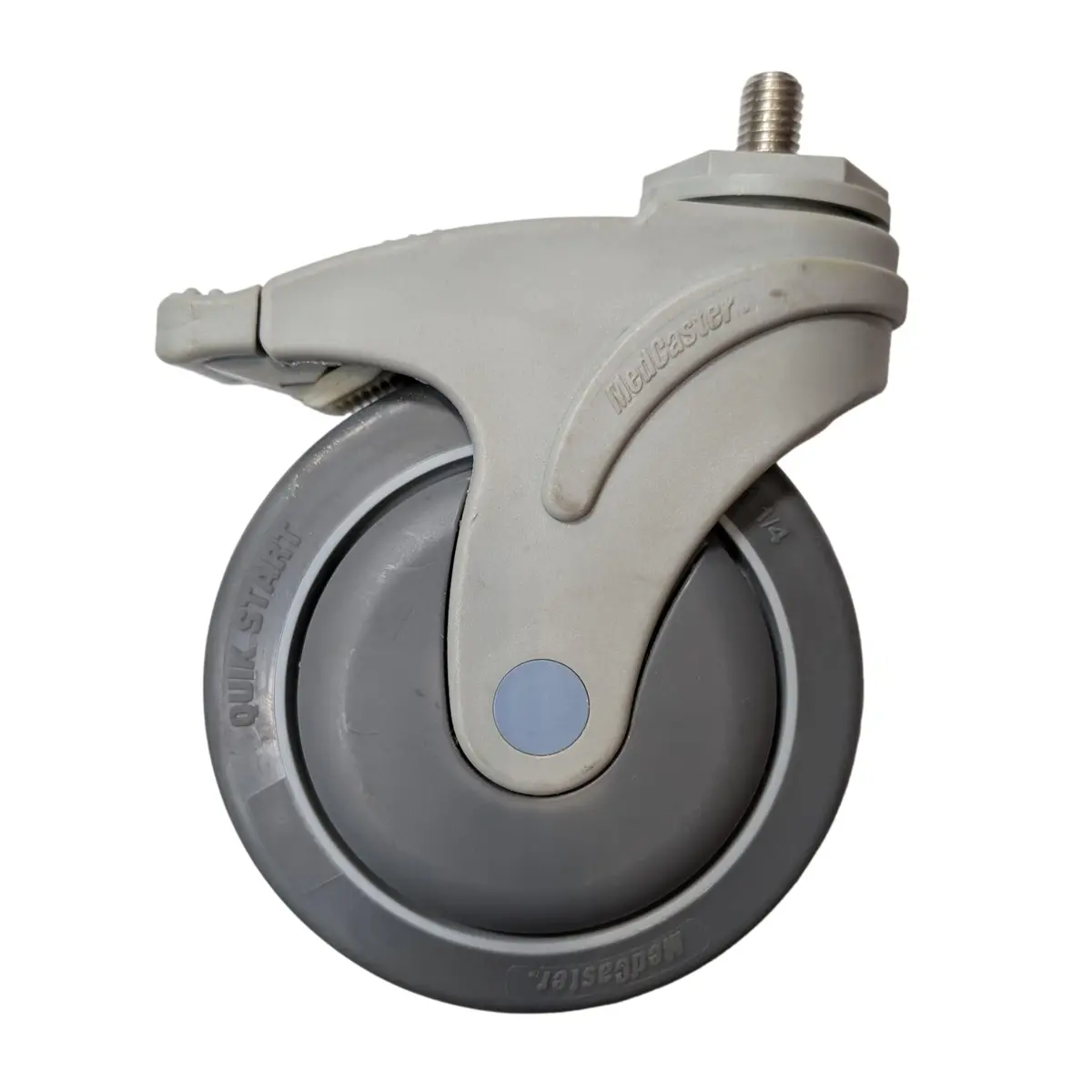

5″ x 1-1/4″ Next Generation Swivel Caster with Total Lock Brake – 300 lbs Capacity
Introducing the Next Generation 5″ QuikStart Swivel Caster, an advanced, maintenance-free caster designed to enhance mobility and safety in demanding environments. Constructed from glass-filled nylon, this caster offers unmatched durability and strength, making it resistant to most chemicals and suitable for various applications.
The precision ball bearings are insert-molded into a sealed raceway, ensuring smooth, quiet operation free from maintenance concerns. The wheel includes full-thread guards that help minimize debris entanglement, enhancing longevity and performance. Its recessed axles are neatly covered with plastic caps to protect against damage.
This caster features a total lock brake system that securely locks both the wheel and swivel simultaneously, providing stable positioning when required. With a wheel diameter of 5 inches and a tread width of 1.25 inches, it boasts a capacity of 300 lbs, suitable for a wide range of uses from shop floors to hospitals. The grip ring fastening allows easy installation, and the caster’s overall mount height is 6.5 inches, providing sufficient clearance for various setups.
- Capacity: 300 Lbs.
- Color: Gray on Gray
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 5″ |
| Tread Width | 1-1/4″ |
| Wheel Type | QuikStart |
| Core Type | Polyolefin |
| Bearing Type | Precision Ball Bearing |
| Wheel Color | Gray on Gray |
| Overall Height | 6-1/2″ |
| Fastening Size | 0.845″ x 2-3/16″ |
| Bolt Hole Pattern | 2-5/8″ x 3-5/8″ to 3″ x 3″ |
| Swivel Radius | 4.4375 |
| Fastening Type | Grip Ring |
| Tread Guard | Plastic |
