Description

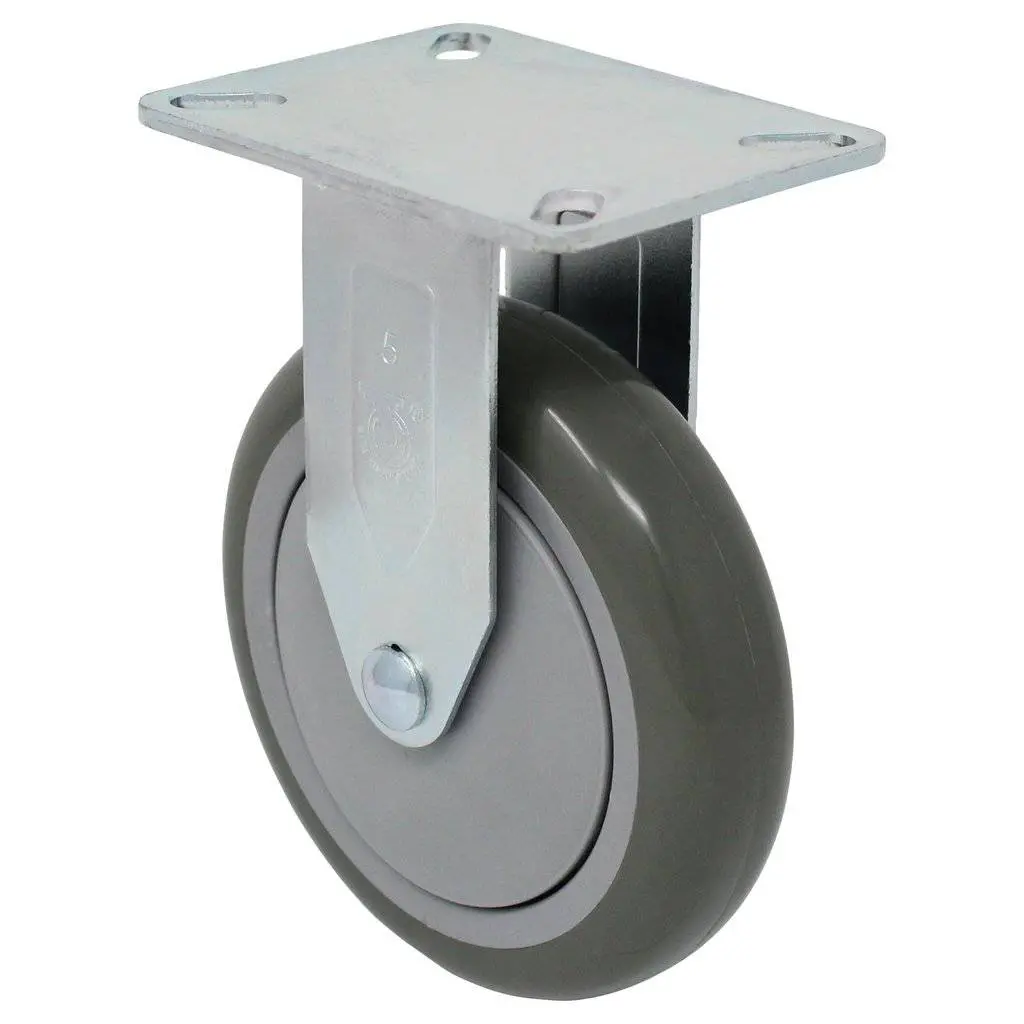

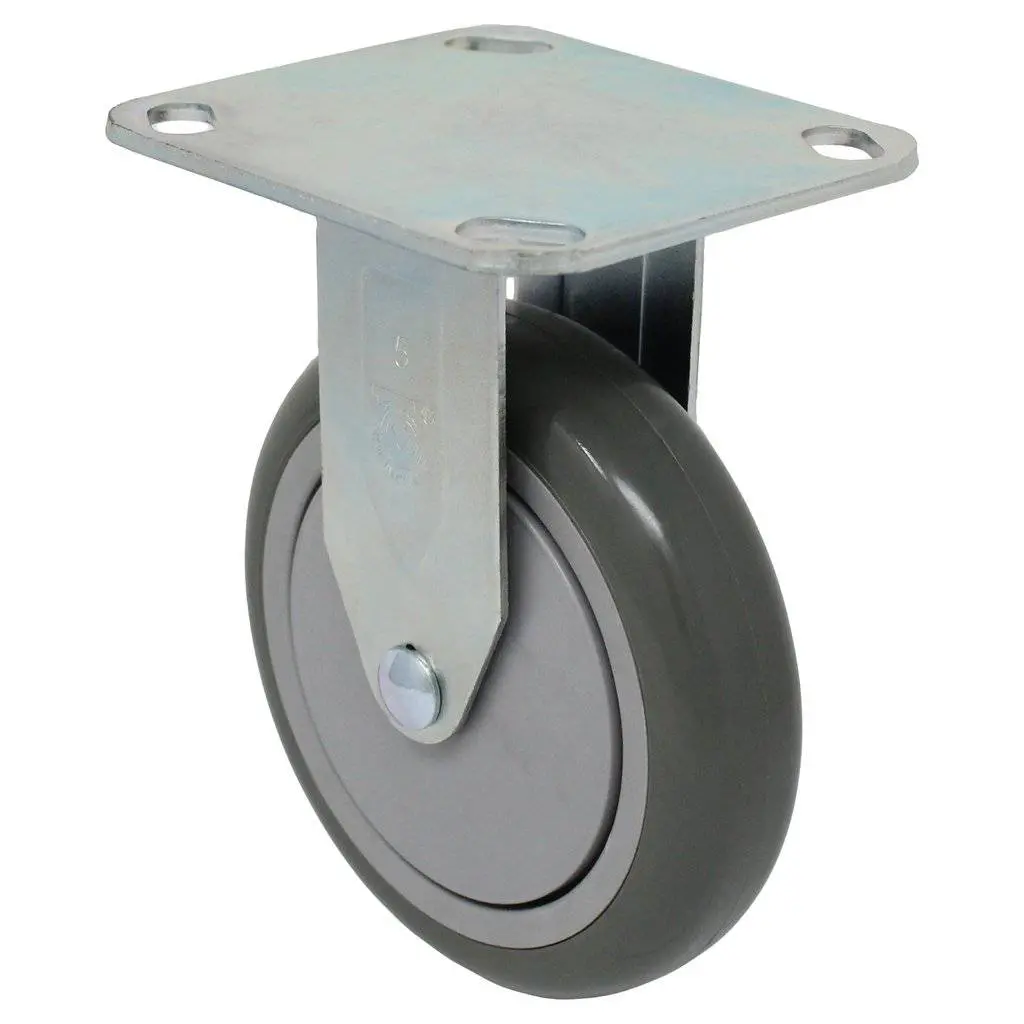

5″ x 1-1/4″ Poly-Pro Wheel Rigid Caster
The poly-pro wheel is one of our caster staples, providing plenty of durability with a firm tread. The polyurethane tread protects surfaces, and the annular bearings roll very smoothly. These casters work best for indoor applications; for outdoor use, please take a look at our Polymadic wheel casters with UV resistant materials.
Tread: Polyurethane, Non-Marking, Mechanically Locked To Core
Core: Polyolefin
Bearing: Ball Bearing
Rig: Zinc-Plated Rigid Caster, Multiple Mounting Plate Options
- Capacity: 350 Lbs.
- Color: Gray on Gray
- Durometer: Shore D 60 (+/-5)
- Temperature Range: -20° F to 180° F
| Load Capacity | 350 Lbs. | |
| Wheel Diameter | 5″ | |
| Tread Width | 1-1/4″ | |
| Tread Type | Polyurethane, Non-Marking, Mechanically Locked To Core | |
| Core Type | Polyolefin Core | |
| Bearing Type | Sealed Precision Bearing | |
| Wheel Color | Gray/Gray | |
| Overall Height | 6-1/8″ | |
| 2-3/8″ x 3-5/8″ Plate | Bolt Hole Pattern | 1-3/4″ x 2-7/8″ slotted to 3″ |
| Bolt Hole Diameter | 5/16″ | |
| 3-1/8″ x 4-1/8″ Plate | Bolt Hole Pattern | 1-3/4″ x 2-15/16″ slotted to 2-3/8″ x 3-3/8″ |
| Bolt Hole Diameter | 3/8″ | |
| 4″ x 4-1/2″ Plate | Bolt Hole Pattern | 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ |
| Bolt Hole Diameter | 3/8″ | |
| Lock Type | Top Lock Brake | |
| Durometer | Shore D 60 (+/-5) | |
| Temperature Range | -20° F to 180° F | |
