Description

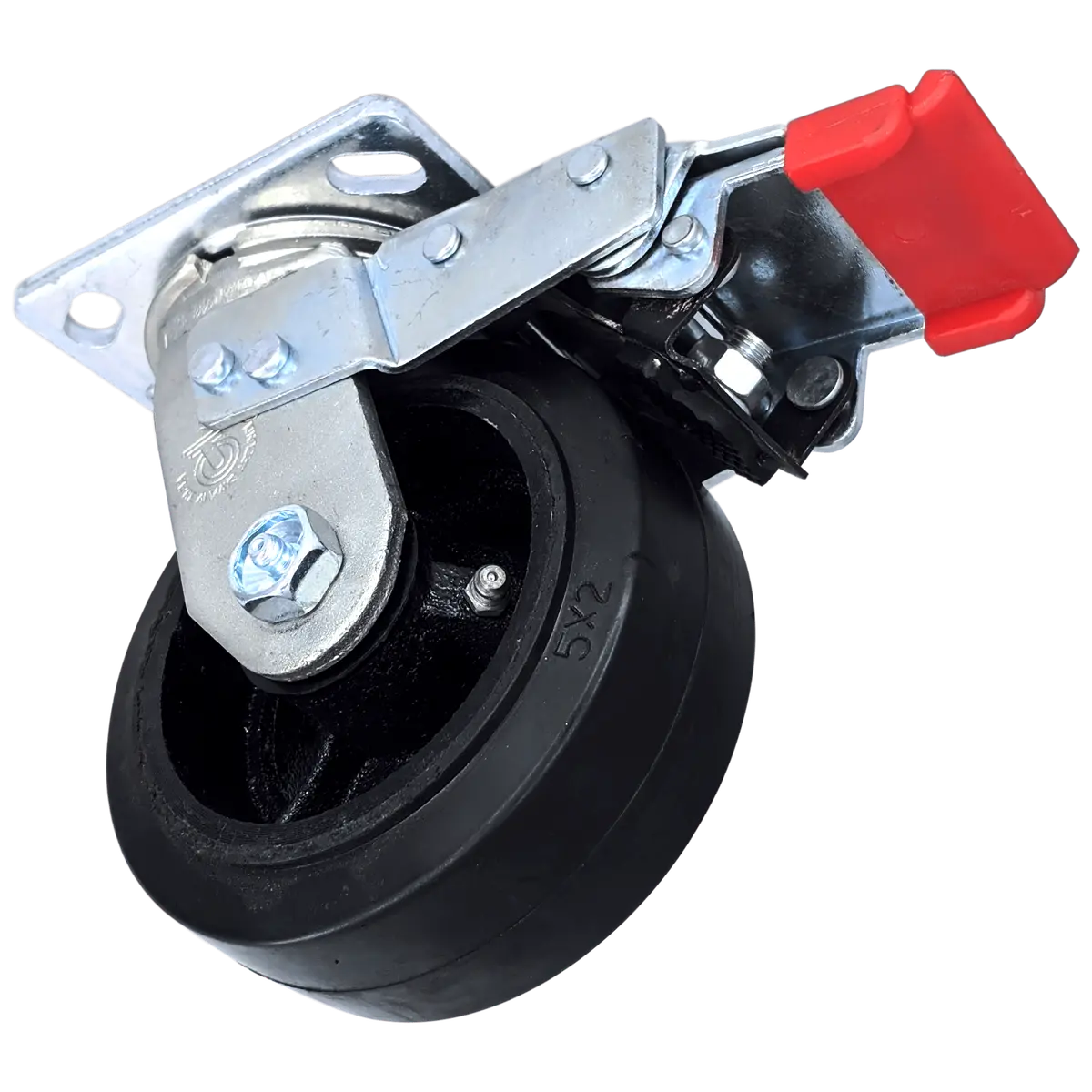

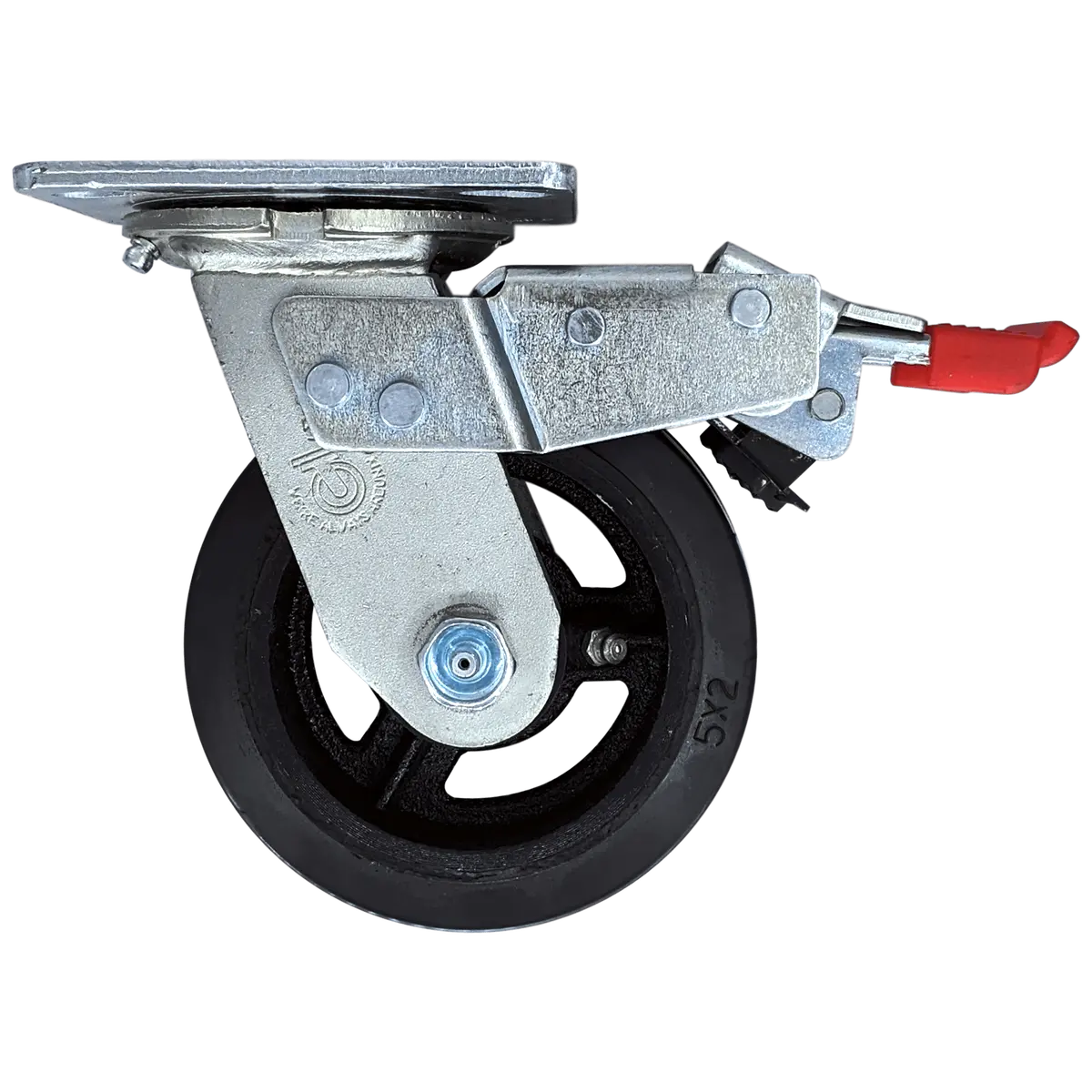

5″ x 2″ Mold On Rubber Cast Wheel Swivel Caster with Total Lock Brake
The mold-on rubber cast wheel is an economic wheel, providing cushion while rolling on a strong cast iron core. This wheel performs best in dry applications.
Tread: Rubber, Vulcanized To Core
Core: Cast Iron
Bearing: Roller Bearing
Rig: Zinc-Plated Swivel Caster, 4″ x 4-1/2″ Mounting Plate, Total Lock Brake
- Capacity: 400 Lbs.
- Color: Black
- Durometer: Shore A 80 (+/-5)
- Temperature Range: -40° F to 180° F
| Load Capacity | 400 Lbs. |
| Wheel Diameter | 5″ |
| Tread Width | 2″ |
| Tread Type | Rubber, Vulcanized To Core |
| Core Type | Cast Iron |
| Bearing Type | Roller Bearing |
| Wheel Color | Black |
| Overall Height | 6-1/2″ |
| Swivel Radius | 6-1/4″ |
| Plate Size | 4″ x 4-1/2″ |
| Bolt Hole Pattern | 2-5/8″ x 3-5/8″ to 3″ x 3″ |
| Bolt Hole Diameter | 3/8″ |
| Lock Type | Total Lock Brake |
| Durometer | Shore A 95 (+/-5) |
| Temperature Range | -45° F to 180° F |
