Description

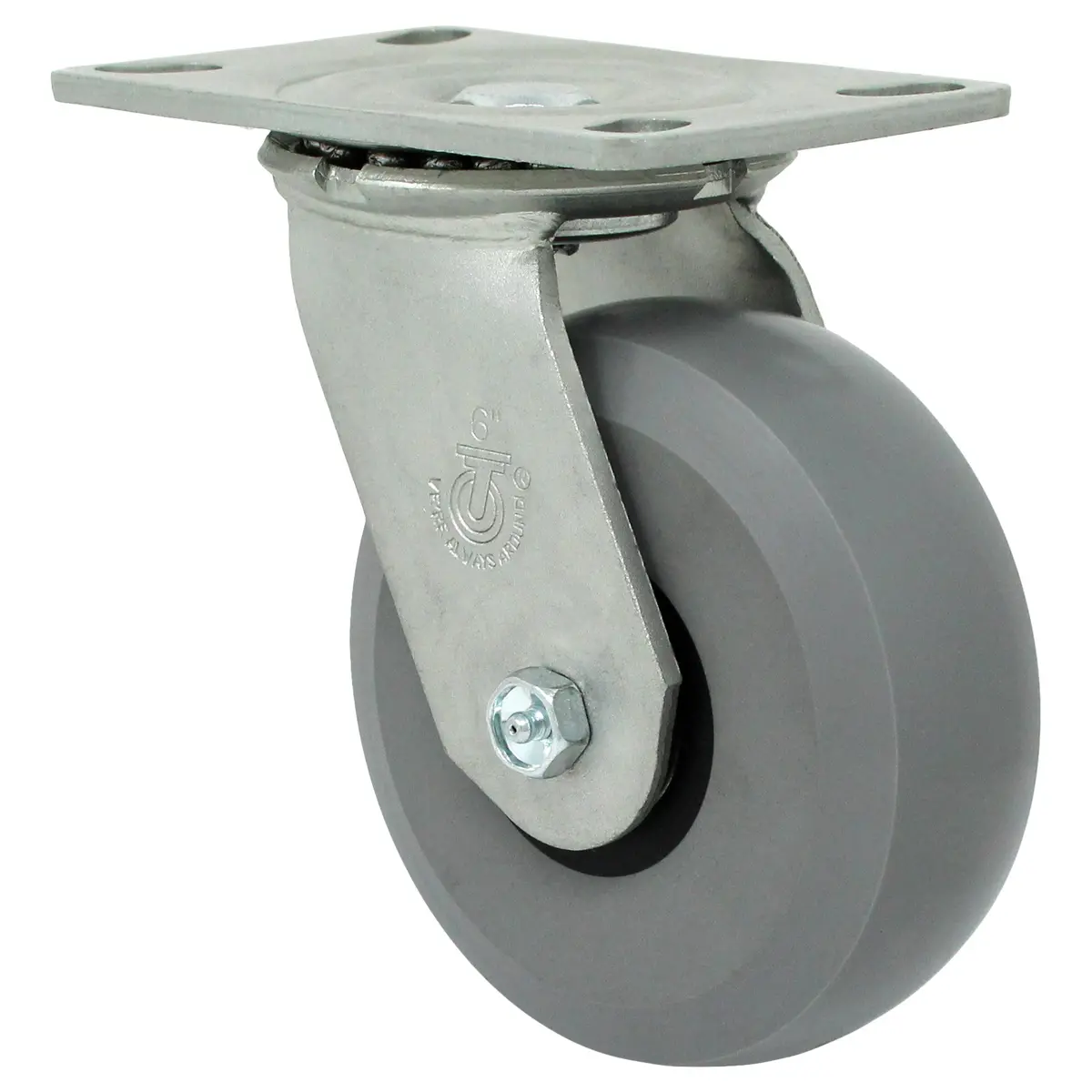

6″ x 2″ Champion Wheel Swivel Caster
The Ergolastomer wheel is our toughest wheel that can provide some cushion for heavy-duty applications. These casters excel in harsh conditions, like rolling on asphalt. They are washable, chemical resistant, provide extreme impact strength, and will not produce flat spots.
Tread: Ultra-flex polyurethane elastomer
Core: Aluminum
Bearing: Sealed Precision Bearing
Rig: Zinc-Plated Swivel Caster, 4-1/2″ x 6-1/4″ Mounting Plate
- Capacity: 1,200 Lbs.
- Color: Gray
- Durometer: Shore A 70 (+/-5)
- Temperature Range: -40° F to 180° F
| Load Capacity | 1,200 Lbs. |
| Wheel Diameter | 6″ |
| Tread Width | 2″ |
| Tread Type | Ultr-flex polyurethane elastomer |
| Core Type | Aluminum |
| Bearing Type | Sealed Precision Bearing |
| Wheel Color | Green / Gray |
| Overall Height | 7-1/2″ |
| Swivel Radius | 4-9/16 |
| Plate Size | 4-1/2″ x 6-1/4″ |
| Bolt Hole Pattern | 2-7/16″ x 4-15/16″ to 3-3/8″ x 5-1/4″ |
| Bolt Hole Diameter | 1/2″ |
| Durometer | Shore A 70 (+/-5) |
| Temperature Range | -40° F to 180° F |
