Description

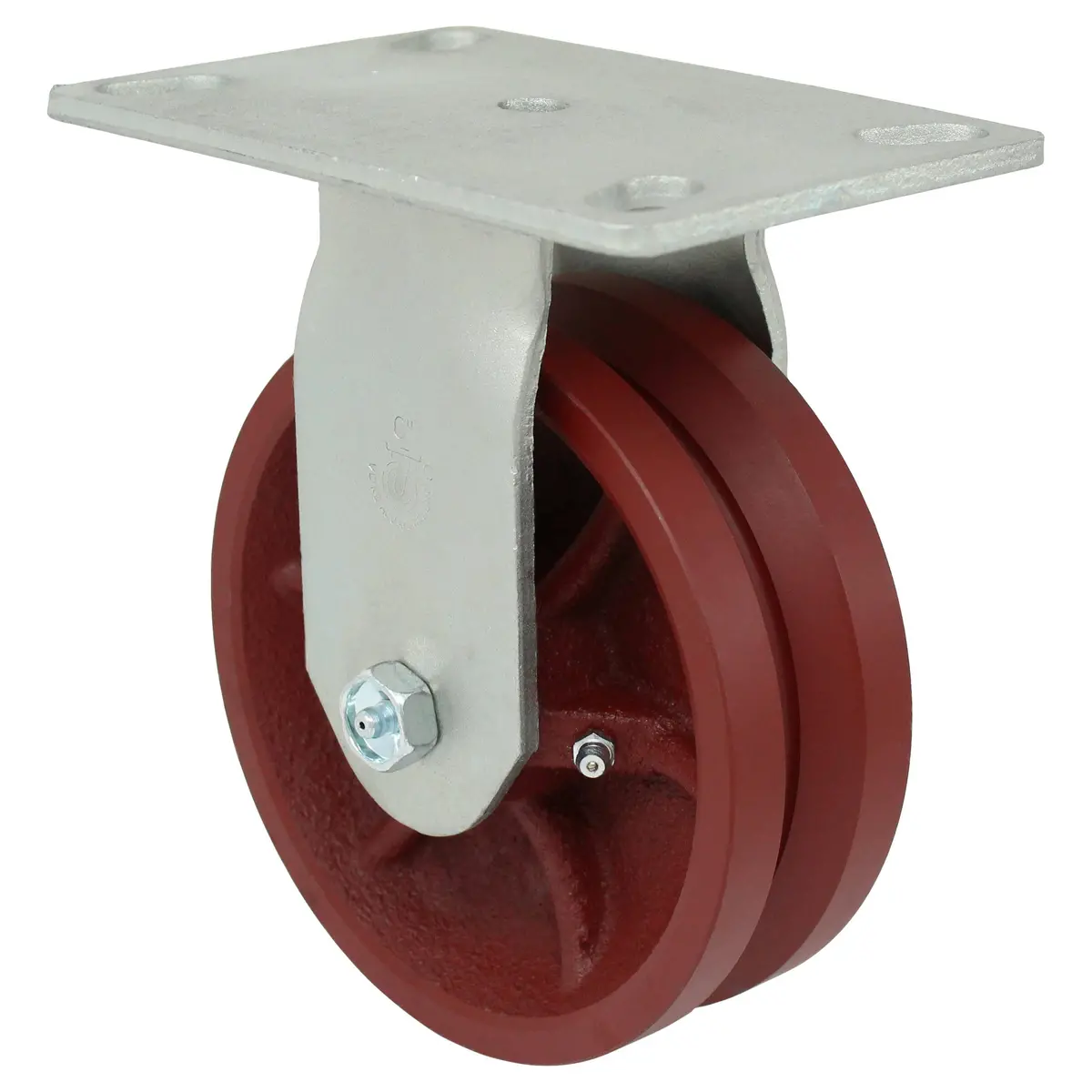

6″ x 2″ V-Groove Ductile Steel Wheel Rigid Caster
The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you’ll be hard-pressed to find a job that needs a stronger wheel. The v-groove allows this wheel to easy travel along integrated tracks.
Tread: Solid Cast Ductile Steel with 7/8″ V-groove
Core: Solid Cast Ductile Steel
Bearing: Roller Bearing
Rig: Zinc plated rigid caster, 4-1/2″ x 6-1/4″ mounting plate
- Capacity: 1,500 Lbs.
- Color: Red
- Durometer: Shore D 85 (+/-5)
- Temperature Range: -45° F to 250° F
| Load Capacity | 1500 Lbs. |
| Wheel Diameter | 6″ |
| Tread Width | 2″ |
| Tread Type | Solid Cast Ductile Steel with 7/8″ V-groove |
| Core Type | Solid Cast Ductile Steel |
| Bearing Type | Roller Bearing |
| Wheel Color | Red |
| Overall Height | 7-1/2″ |
| Plate Size | 4″ x 4-1/2″ |
| Bolt Hole Pattern | 2-5/8″ x 3-5/8″ to 3″ x 3″ |
| Bolt Hole Diameter | 1/2″ |
| Durometer | Shore D 85 (+/-5) |
| Temperature Range | -45° F to 250° F |
