Description

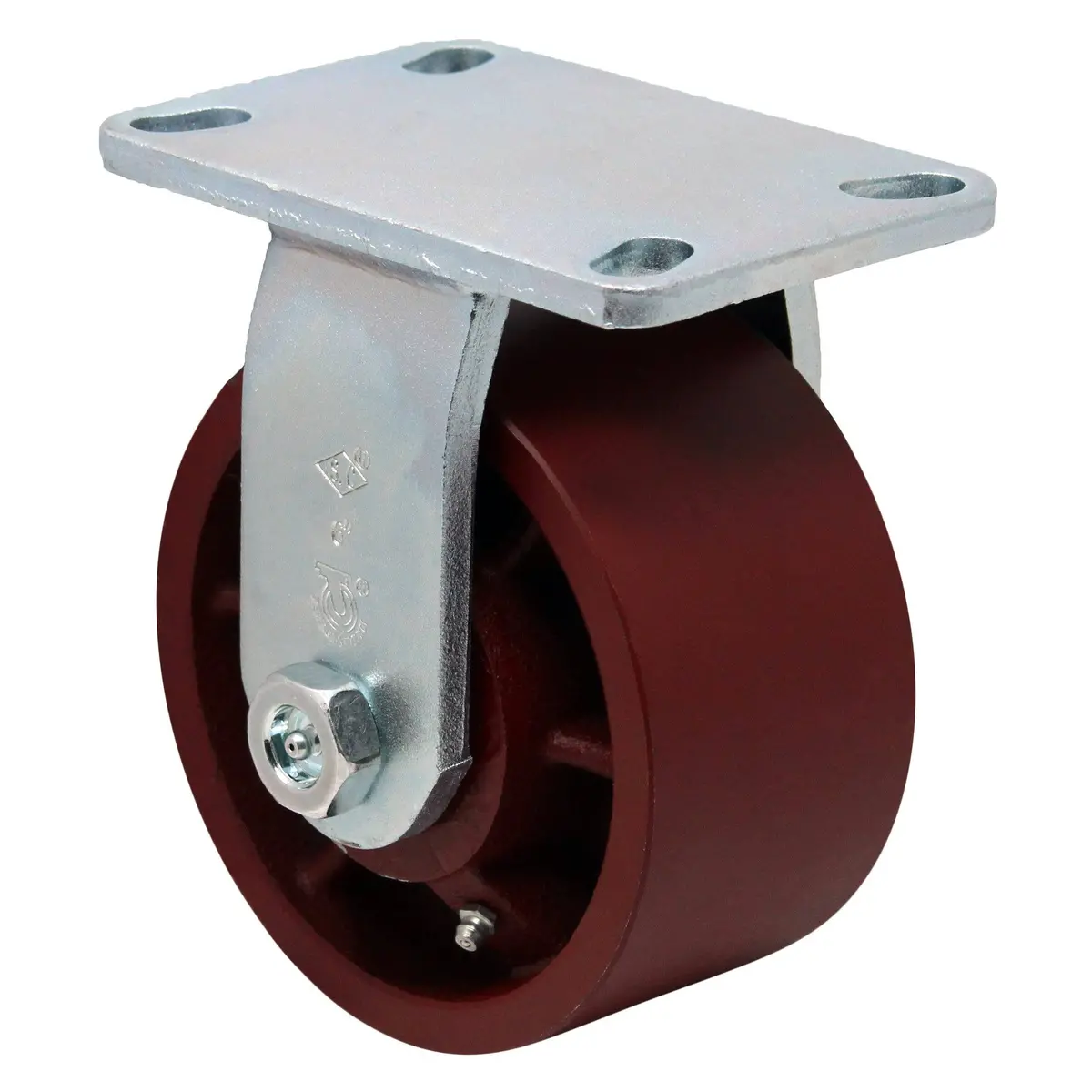

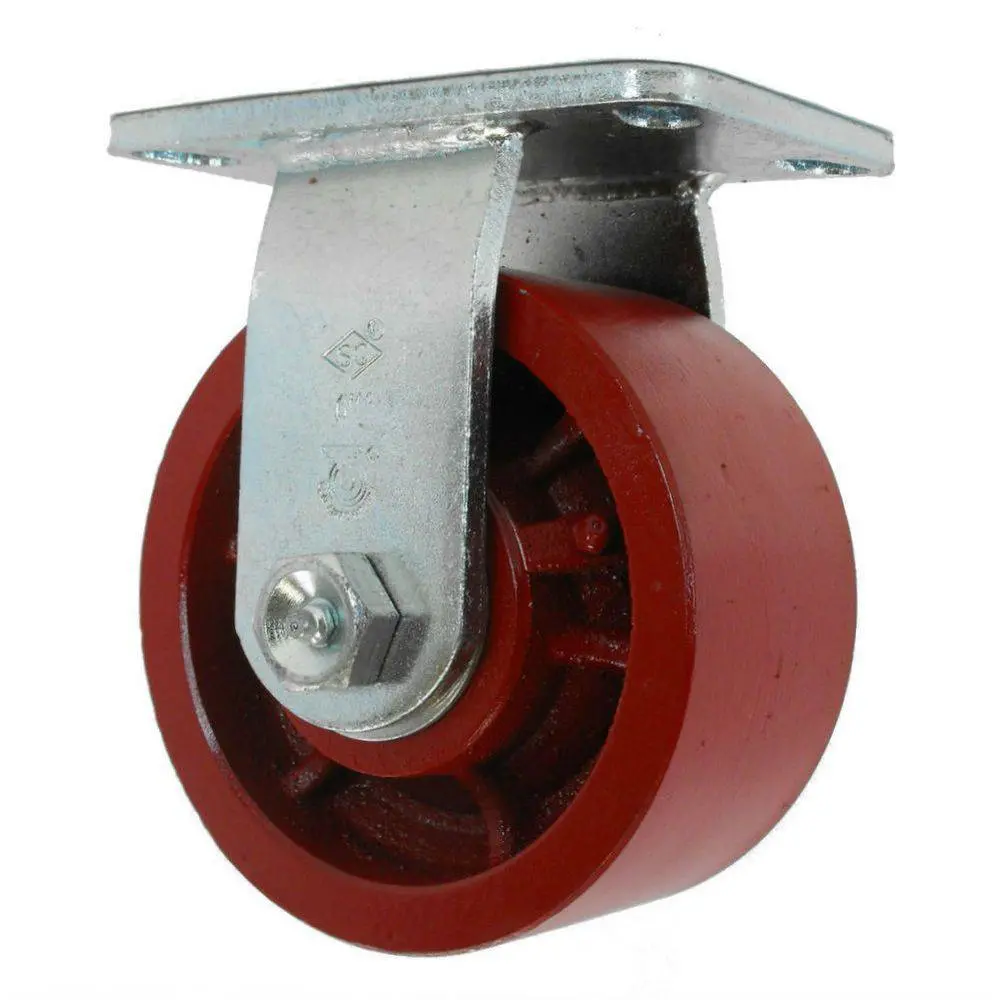

6″ x 3″ Heavy Duty Ductile Steel Wheel Rigid Caster
The Ductile Steel wheel provides extreme weight capacity for its size. The ductile steel is graphite-rich, which is stronger and more durable than even our standard semi-steel wheels. With a tensile strength of 45,000 PSI, you’ll be hard-pressed to find a job that needs a stronger wheel.
Tread & Core: Solid Cast Ductile Steel
Bearing: Roller Bearing
Rig: Forged steel rigid caster, 4-1/2″ x 6-1/4″ mounting plate
- Capacity: 2,400 Lbs.
- Color: Red
- Tensile Strength: 45,000 PSI
- Temperature Range: -45° F to 800° F
| Load Capacity | 2,400 Lbs. |
| Wheel Diameter | 6″ |
| Tread Width | 3″ |
| Tread Type | Solid Cast Ductile Steel |
| Core Type | Solid Cast Ductile Steel |
| Bearing Type | Roller Bearing |
| Wheel Color | Red |
| Overall Height | 7-1/2″ |
| Plate Size | 4-1/2″ x 6-1/4″ |
| Bolt Hole Pattern | 2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″ |
| Bolt Hole Diameter | 1/2″ |
| Tensile Strength | 45,000 PSI |
| Temperature Range | -45° F to 800° F |
