Description

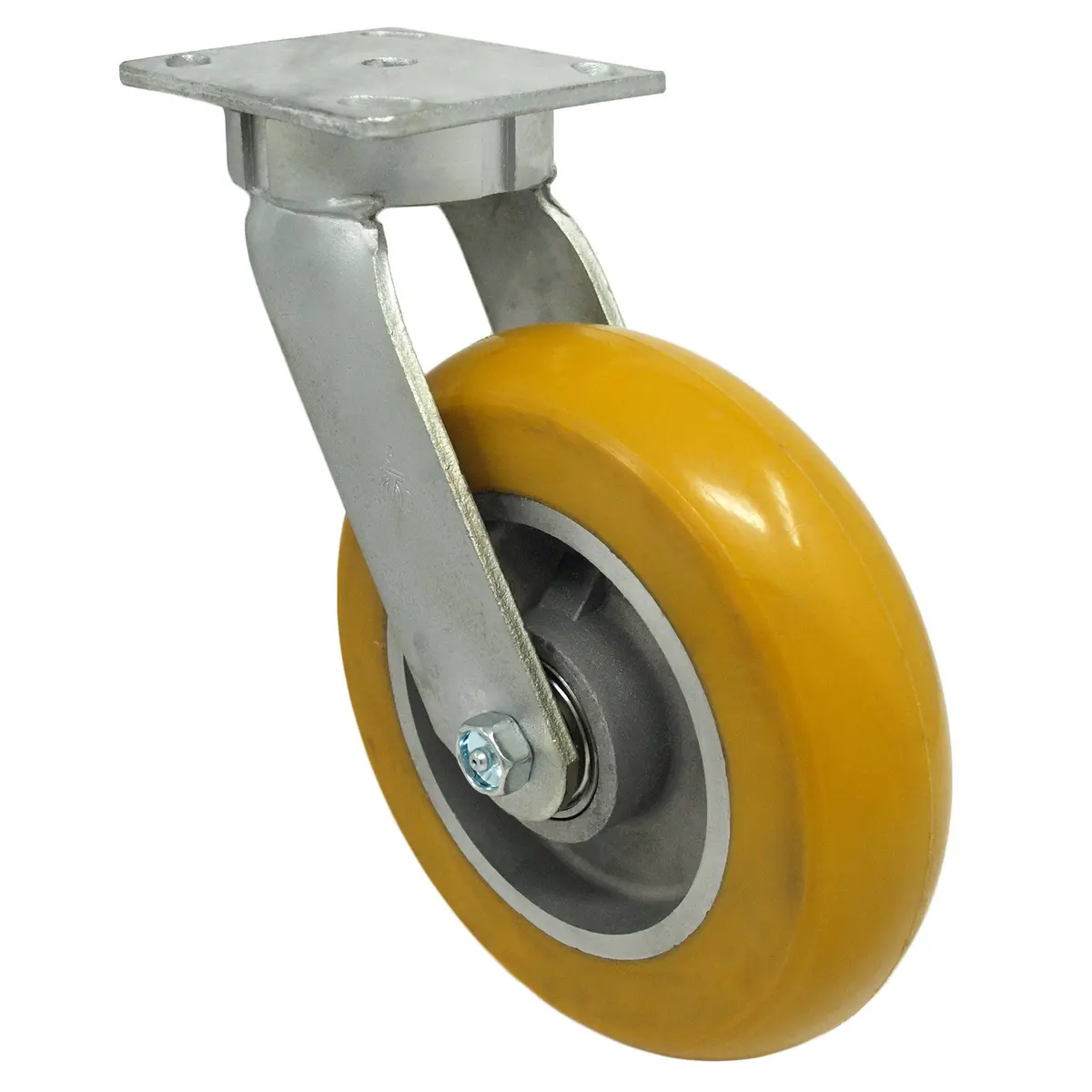

8″ x 2″ Ultraflex Wheel Swivel Kingpinless Caster
The Ultraflex is uniquely formulated for best ergonomic push/pull after set and in-line operation. Extra thick polyurethane tread gives best rebound strength and cushion ride. Swivel device is a combination of ball thrust bearings and tapered roller bearings for maximum performance.
Tread: Extra thick polyurethane
Core: Steel
Bearing: Sealed Precision Bearing
Rig: Zinc-plated swivel caster, 4″ x 4-1/2″ mounting plate
- Capacity: 1,200 Lbs.
- Color: Yellow
- Durometer: Shore A 80 (+/-5)
- Temperature Range: -50° F to 180° F
| Load Capacity | 1200 Lbs. |
| Wheel Diameter | 8″ |
| Tread Width | 2″ |
| Wheel Type | Ultraflex super elastomer |
| Bearing Type | Sealed Precision Bearing |
| Wheel Color | Yellow |
| Overall Height | 9-1/2″ or 10-1/8″ |
| Swivel Radius | 5″ or 5-1/2″ |
| Plate Size | 4″ x 4-1/2″ |
| Bolt Hole Pattern | 2-5/8″ x 3-5/8″ to 3″ x 3″ |
| Bolt Hole Diameter | 3/8″ |
| Durometer | Shore A 80 (+/-5) |
| Temperature Range | -50° F to 180° F |
