Description

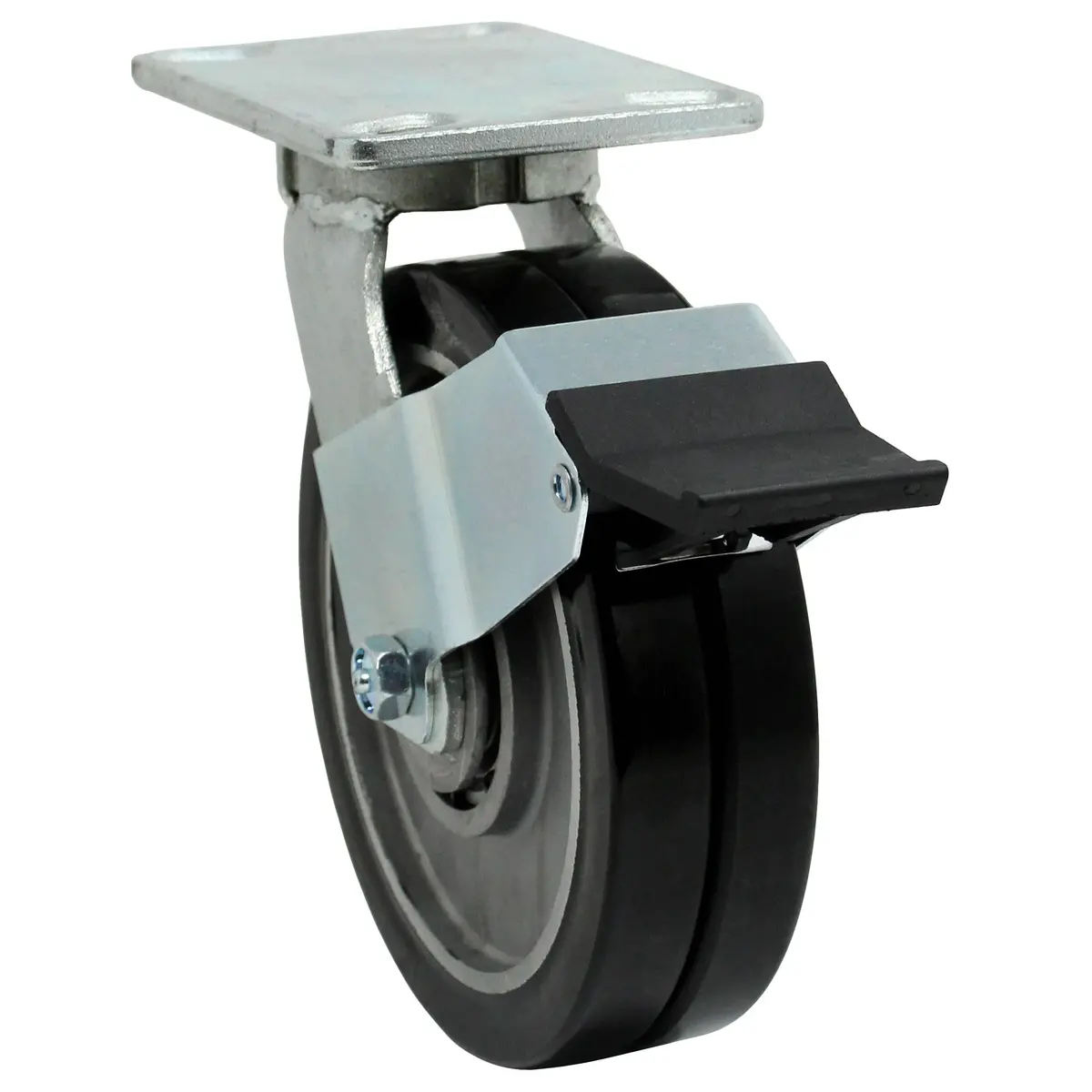

8″ x 2″ Dual Wheel Swivel Caster with Pedal Brake
High quality polyurethane tread mechanically and chemically molded onto aluminum core. Each wheel is 1″ wide together making for a 2″ wide total footprint. Two wheels makes swiveling and rotating easier by improving load distribution at sharp turns. Less rolling resistance makes for a low initial start force easy turning and extended life and performance.
Tread: High quality polyurethane
Core: Aluminum
Bearing: Sealed Precision Bearing
Rig: Zinc-plated swivel caster with top lock brake, 4-1/2″ x 6-1/4″ mounting plate
- Capacity: 1,500 Lbs.
- Color: Blue / Gray
- Durometer: Shore A 70 (+/-5)
- Temperature Range: -40° F to 180° F
| Load Capacity | 1500 Lbs. |
| Wheel Diameter | 8″ |
| Tread Width | 1″ x (2) |
| Tread Type | Polyurethane elastomer |
| Core Type | Aluminum |
| Bearing Type | Sealed precision bearing |
| Wheel Color | Black / Gray |
| Overall Height | 9-1/2″ |
| Swivel Radius | 6-1/4″ |
| Plate Size | 4-1/2″ x 6-1/4″ |
| Bolt Hole Pattern | 2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″ |
| Bolt Hole Diameter | 1/2″ |
| Lock Type | Pedal wheel lock |
| Durometer | Shore A 70 (+/-5) |
| Temperature Range | -40° F to 180° F |
