Description

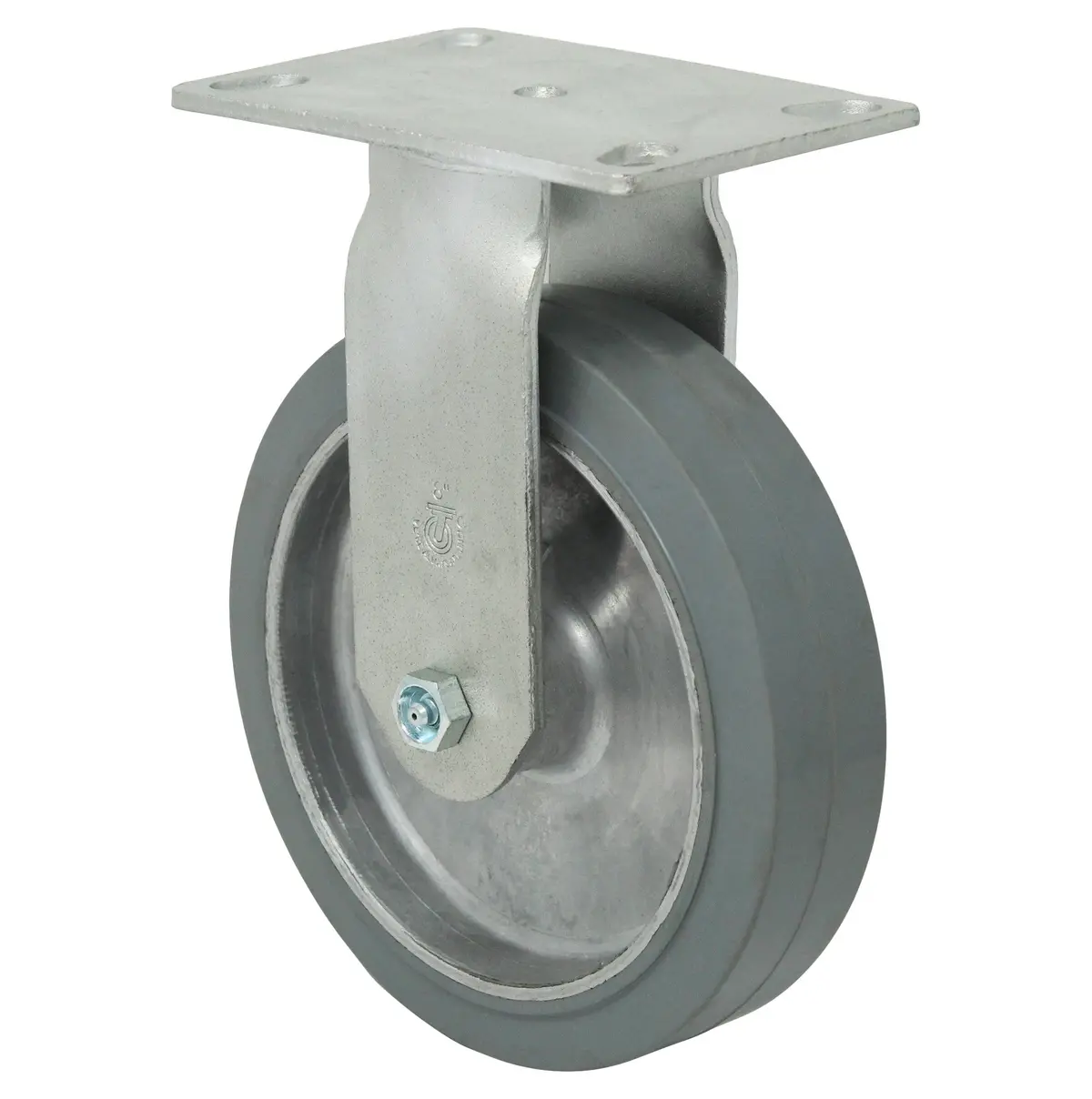

8″ x 2″ Mold On Rubber Aluminum Wheel Rigid Caster
The mold-on rubber aluminum wheel is a lightweight alternative to the traditional cast iron core, providing the same load capacity with a cushioned tread and an attractive look.
Tread: Non-marking Gray Rubber, Vulcanized to Core
Core: Aluminum
Bearing: Sealed Precision Ball Bearing
Rig: Zinc-Plated Rigid Caster, 4-1/2″ x 6-1/4″ Mounting Plate
- Capacity: 600 Lbs.
- Color: Gray and Silver
- Durometer: Shore A 80 (+/-5)
- Temperature Range: -40° F to 160° F
| Load Capacity | 600 Lbs. |
| Wheel Diameter | 8″ |
| Tread Width | 2″ |
| Tread Type | Rubber, Vulcanized To Core |
| Core Type | Aluminum |
| Bearing Type | Sealed Precision Bearing |
| Wheel Color | Gray and Silver |
| Overall Height | 9-1/2″ |
| Plate Size | 4-1/2″ x 6-1/4″ |
| Bolt Hole Pattern | 2-7/16″ x 4-15/16″ to 3-3/8″ x 5-1/4″ |
| Bolt Hole Diameter | 1/2″ |
| Durometer | Shore A 80 (+/-5) |
| Temperature Range | -40° F to 160° F |
