Description
The Bronco Sport is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This Baja Designs lighting kit includes a pair of Squadron Sport LED auxiliary lights in spot, along with a set of wide cornering, and Driving/Combo lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a relay style harness with toggle switch, and Bronco sport specific A-pillar brackets. The installation process of this kit is extremely simple and does not require any cutting or drilling.
Features:
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
S1 Specifications:
- Lumens: 2,375 Utilizing 1 LED
- Wattage/Amps: 20W / 1.45A
- Dimensions: 2.1″ x 2.1″ x 2.1″
- Safe Voltage Range: 9-28V
- Weight: 0.4 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

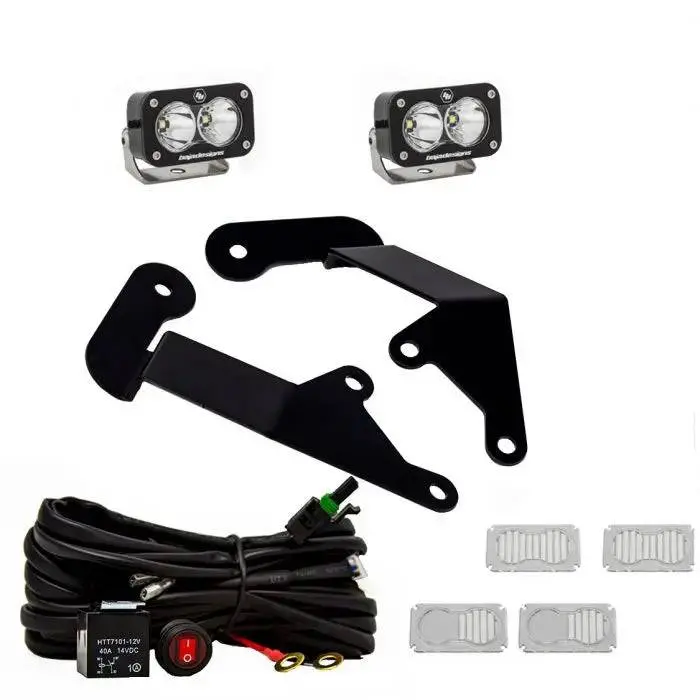

S1 Kit Includes:
- S1 Spot LED (Pair)
- x2 S1 Wide Cornering, Clear Lenses
- Bronco Sport A-Pillar Brackets (PS/DS)
- Relay Harness with Red Toggle Switch
S2 Pro Specifications:
- Lumens: 2,450 Utilizing 2 LEDs
- Wattage/Amps: 24W / 1.70A
- Dimensions: 2.93″ x 1.76″ x 1.68″
- Weight: 8 oz
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
S2 Pro Kit Includes:
- S2 Spot LED (Pair)
- x2 S2 Wide Cornering, Clear Lenses
- x2 S2 Driving/Combo, Clear Lenses
- Bronco Sport A-Pillar Brackets (PS/DS)
- Relay Harness with Red Toggle Switch
Squadron Sport Specifications:
- Lumens: 3,150 Utilizing 4 LED
- Wattage/Amps: 26W / 2A
- Dimensions: 3.07″ x 2.77″ x 3.07″
- Weight: 12 oz
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)

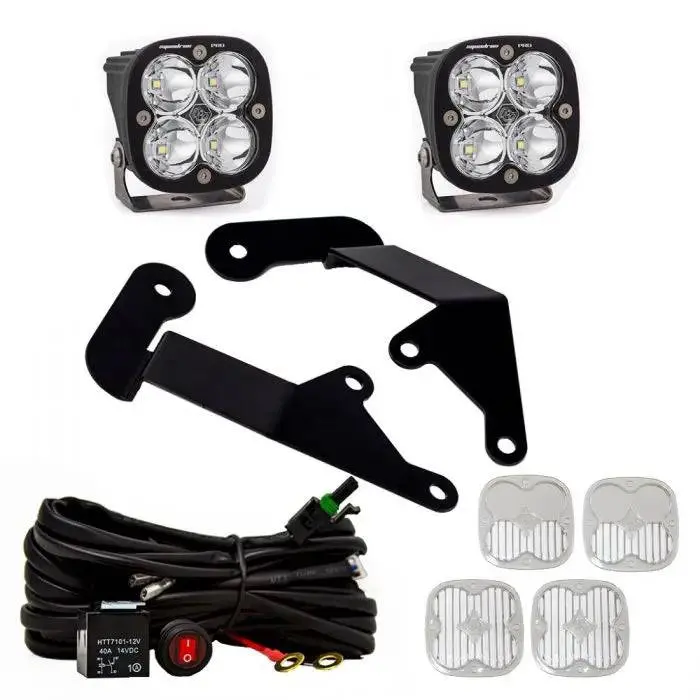

Squadron Sport Kit Includes:
- Squadron Sport Spot LED (Pair)
- x2 Squadron Wide Cornering, Clear Lenses
- x2 Squadron Driving/Combo, Clear Lenses
- Bronco Sport A-Pillar Brackets (PS/DS)
- Relay Harness with Red Toggle Switch
Squadron Pro Specifications:
- Lumens: 4,600 Utilizing 2 types of Cree LEDs
- Wattage/Amps: 40W / 2.90A
- Dimensions: 3..07″ x 2.77″ x 3.07″
- Weight: 12 Oz
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Squadron Pro Kit Includes:
- Squadron Pro, Pair Spot LED
- x2 Squadron Wide Cornering, Clear Lenses
- x2 Squadron Driving/Combo, Clear Lenses
- Bronco Sport A-Pillar Brackets (PS/DS)
- Relay Harness with Red Toggle Switch
Installation Instructions
