Description

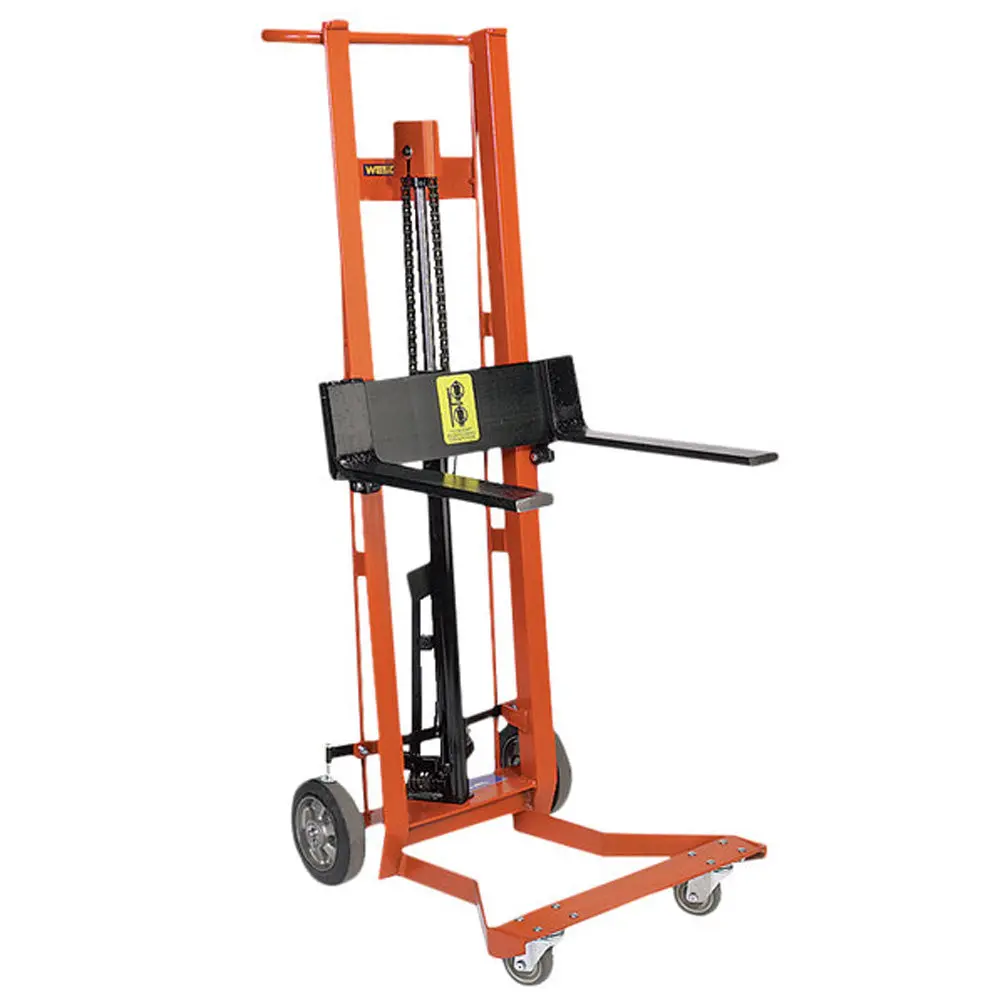

Four-wheeled hydraulic Lift with Foot Pump and Adjustable Forks, 750 lb Capacity
The Four-Wheeled Hydraulic Lift offers a robust lifting solution with a 750 lb capacity. This lift features a Wesco-manufactured hydraulic Pedalift Jack with over 35 years of proven quality. The foot-operated hydraulic pump raises the platform, and the foot-release pedal lowers it smoothly. The platform sits 5.75″ above the floor for easy loading and unloading.
Designed for low maintenance, this lift comes with standard wheel locks for added safety. The frame and lift heights vary among models, with all 54″ lifts having an overall height (O.A.H.) of 60.5″ and all 40″ lifts having an O.A.H. of 48.5″. The lift is equipped with 8″ x 2″ wheels with 0.75″ precision ball bearings and 3.5″ diameter polyurethane ball-bearing front swivel casters. Adjustable forks are available on certain models to meet various lifting needs.
The Four-Wheeled Hydraulic Lift comes with a 1-year warranty, ensuring durability and reliability for material handling operations.
Specifications
| Specification | Part Number: 260008 | Part Number: 260009 | Part Number: 260010 | Part Number: 260011 | Part Number: 260012 |
|---|---|---|---|---|---|
| Model | DPL-40-1620 | DPL-54-2222 | DPL-54-2230 | DPL-40-F | DPL-54-F |
| Capacity | 750 lb | 750 lb | 750 lb | 750 lb | 750 lb |
| Wheel | (2) 8″ x 2″ | (2) 8″ x 2″ | (2) 8″ x 2″ | (2) 8″ x 2″ | (2) 8″ x 2″ |
| Swivel Caster | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane |
| Lift Height | 40″ | 54″ | 54″ | 40″ | 54″ |
| Platform Width | 20″ | 22″ | 30″ | N/A | N/A |
| Platform Length | 16″ | 22″ | 22″ | N/A | N/A |
| Width Forks | N/A | N/A | N/A | 3″ | 3″ |
| Length Forks | N/A | N/A | N/A | 18″ | 18″ |
| Load Center | 10″ | 10″ | 15″ | 10″ | 10″ |
| O.A.H. | 48.5″ | 60.5″ | 60.5″ | 48.5″ | 60.5″ |
| Overall Width | 22.5″ | 22.5″ | 30″ | 22.5″ | 22.5″ |
| Overall Height | 48.5″ | 60.5″ | 60.5″ | 48.5″ | 60.5″ |
| Overall Depth | 32″ | 32″ | 32″ | 32″ | 32″ |
| Weight | 119 lb | 166 lb | 172 lb | 138 lb | 172 lb |
