Description

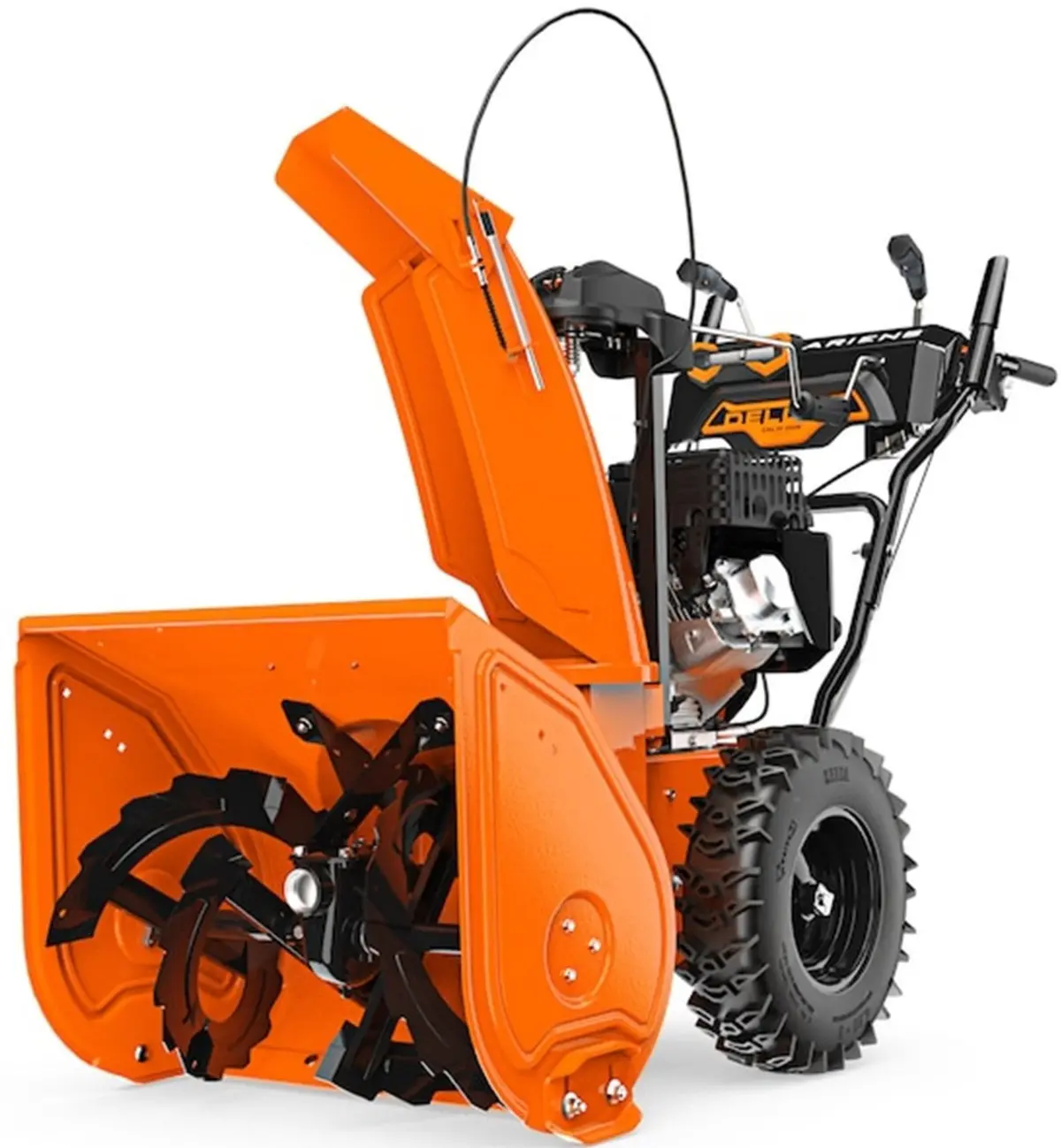

Tackle everything from sidewalks and driveways to large commercial areas with the powerful but compact Deluxe 24.
User friendly features like Auto Turn steering, electric start, remote chute control and in-dash headlight.
Heavy duty, all steel construction for years of dependable performance.
FEATURES:
- 254cc Ariens AX snow engine with 12.5 ft. lbs. of torque for snow-devouring power
- 24 in. clearance width
- 21 in. intake height to efficiently clear residential or commercial areas
- Self-propelled with 6 forward speeds and 2 reverse speeds, allowing you to work at your own pace
- 14 gauge steel auger housing
- 14 in. steel serrated augers
- 14 in. impellers are tough enough to power through all snow conditions
- Heavy duty cast iron top-load gear case with alloy steel gears
- 120-Volt electric push button start gets you going on even the coldest winter days
- 205° remote chute and deflector throws snow up to 50 ft.
- Large in-dash halogen headlight helps provide extended snow removal time and added safety
- Simple assembly instructions will be included
SPECIFICATIONS:
| TITLE | DELUXE 24 | ||
|---|---|---|---|
| MODEL NUMBER | 921045/921069 | ||
| ENGINE | Ariens AX® | ||
| STAGE TYPE | Two Stage | ||
| CLEARING WIDTH (IN/CM) | 24 In / 60.9cm | ||
| STARTING SYSTEM | 120v / Electric | ||
| TIRE SIZE | 16 In / 40.6cm | ||
| TIRE TYPE | Directional Snow Tread | ||
| STEERING | Auto-Turn | ||
| DRIVE TYPE | Disc-O-matic | ||
| SPEEDS | 6 Forward/2 Reverse | ||
| LENGTH | 58.6 In / 148.8cm | ||
| WIDTH | 26.4 In / 67cm | ||
| HEIGHT | 45.3 In / 115cm | ||
| WEIGHT (ASSEMBLED) | 245.5 lb / 111.3 kg | ||
| GEAR CASE | Cast Iron | ||
| GEAR CASE WARRANTY | 5 Year Consumer, 1 Year Commercial | ||
| HOUSING HEIGHT | 21 In / 53.3cm | ||
| THROWING DISTANCE | 3 ft – 50 ft | ||
| CHUTE TURNING RADIUS | 200 | ||
| DEFLECTOR CONTROL | In-Dash Lever | ||
| IMPELLER PROFILE | Steel 3 Blade | ||
| IMPELLER DIAMETER | 14 In / 35.5cm | ||
| AUGER DIAMETER | 14 In / 35.5cm | ||
| AUGER TYPE | Steel Serrated | ||
| SKID SHOES | Steel Reversible | ||
| SCRAPER BAR | Steel Adjustable | ||
| CHUTE ROTATION | 2.5x Ice Drill | ||
| FEATURES AT A GLANCE | Light Type: LED Handwarmers: Optional Remote Deflector Control: Standard Drift Cutters: Optional One Hand Interlock: Standard |
||
| PRODUCT WARRANTY | 3 years residential use. 90 days commercial use |
