Description

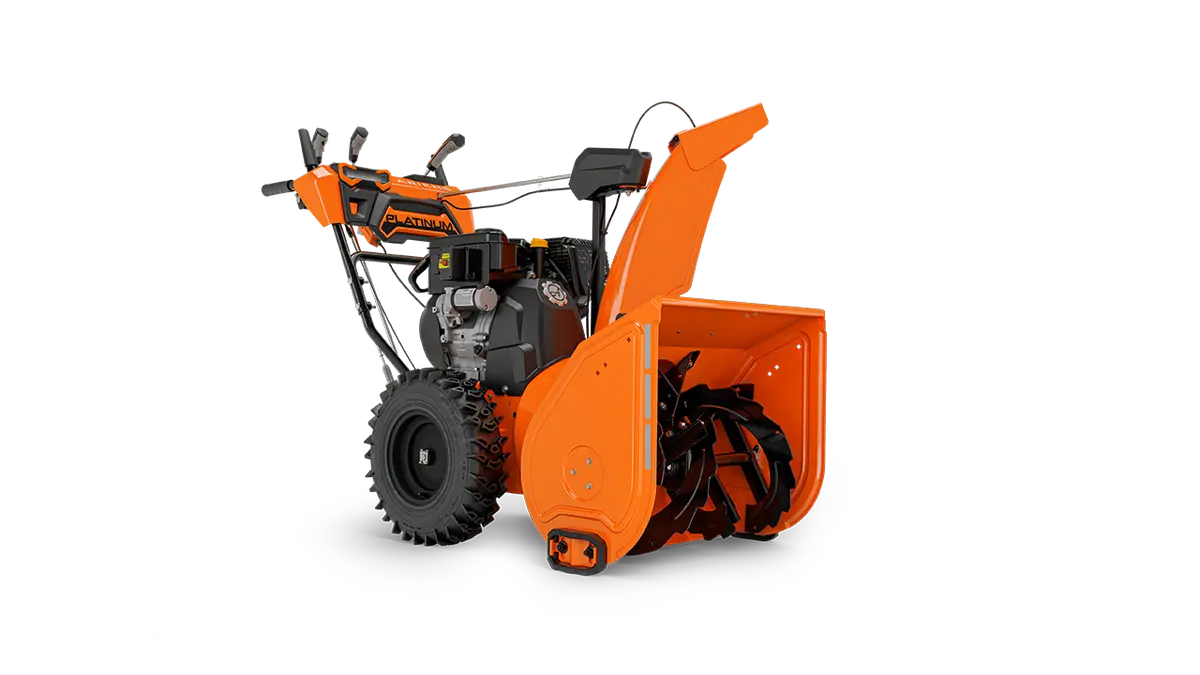

Ariens Platinum 24 SHO (24″) 369cc Two-Stage Snow Blower
FEATURES:
Powerful 369cc Ariens AX369 Engine
•Designed to function in sub-zero conditions
•120-volt electric start w/recoil (cord not included)
Super High-Output Impeller (SHO)
•Faster impeller speeds by way of modified belts and pulleys
•Improved output and throwing distance
Heavy Duty Disc-O-Matic Drive With Large Cast Iron Gear Case
•Easily shift into any of the six forward or two reverse speeds
•Provides additional power in extreme snow conditions
New Improved Quick Turn Chute Control
•No more finicky cable adjustment with separate pull back motion
•Rotates up to 200 degrees using single lever
Remote Chute Deflector Control
•Dash-mounted control to change position & angle of the deflector
Auto-Turn Steering Technology
•Senses change in direction automatically as you turn
•Adjusts power to the inside wheel to make turning easier
Hand Warmers
•Keeps your fingertips toasty warm in sub-zero weather
SPECIFICATIONS
Engine
Engine Brand Ariens
Engine Type 4-Cycle OHV
CC 369 CCs
Starting System 120-Volt Electric /w Recoil
Fuel Tank 0.8 Gallons
Torque 15 lbs
Auger Housing / Chute Control
Auger Diameter 14 Inches
Impeller Diameter 14 Inches
Profile Steel 3-Blade
Auger Material Serrated Steel
Chute Material Steel
Chute Rotation Quick-Turn
Turning Radius 200 degrees
Max Throwing Distance 55 Feet
Clearing Width 24 Inches
Intake Height 21 Inches
Drive System
Drive Disc-O-Matic
Steering Auto-Turn
Gear Case Cast Iron
Reverse Speeds 2 Reverse
Tire Type Directional Snow Tread
Forward Speeds 6 Forward
Tire Size 16″ x 4.8″
Options
Remote Deflector Controls Yes
Drift Cutters Sold Separately
Front Weights Sold Separately
Interlocking Controls Yes
Hand Warmers Yes
Headlights Halogen
Skid Shoes Included – Reversible
Overview
Weight 286 Pounds
Product Length 58.3 Inches
Product Width 26.4 Inches
Product Height 45.9 Inches
WARRANTY
Consumer Warranty 3 Years
Commercial Warranty 90 Days
