Description

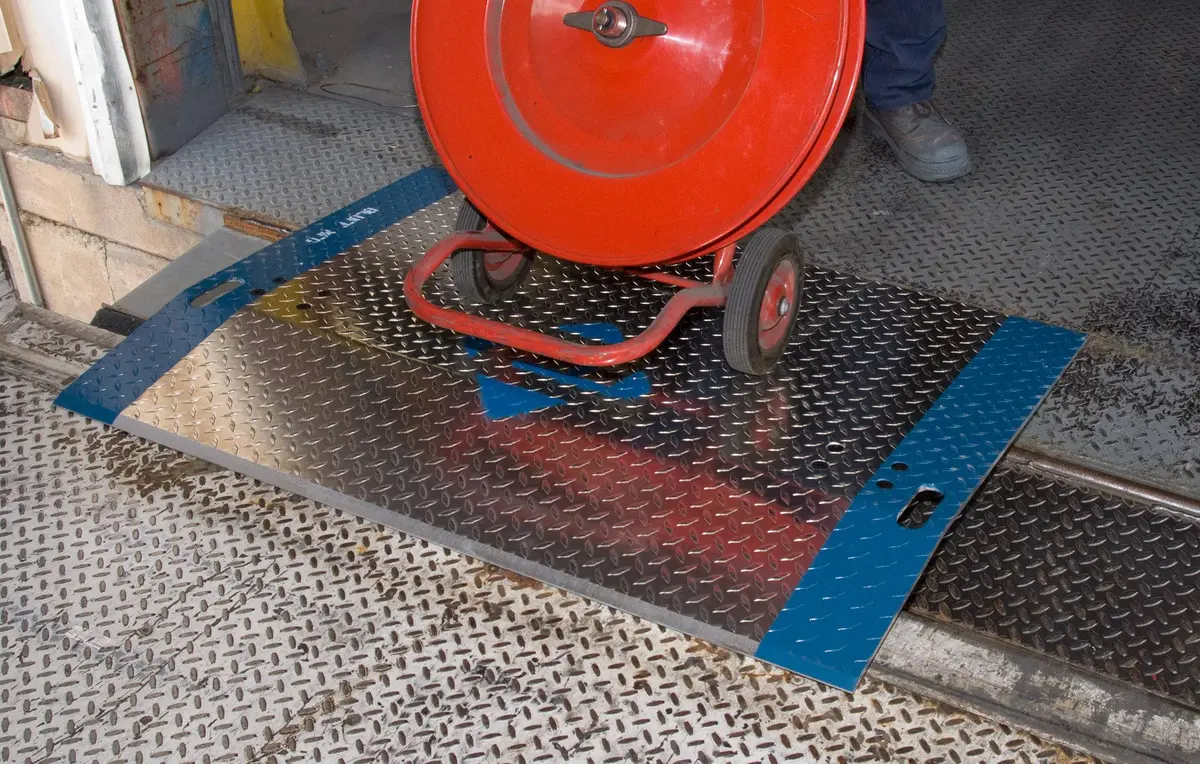

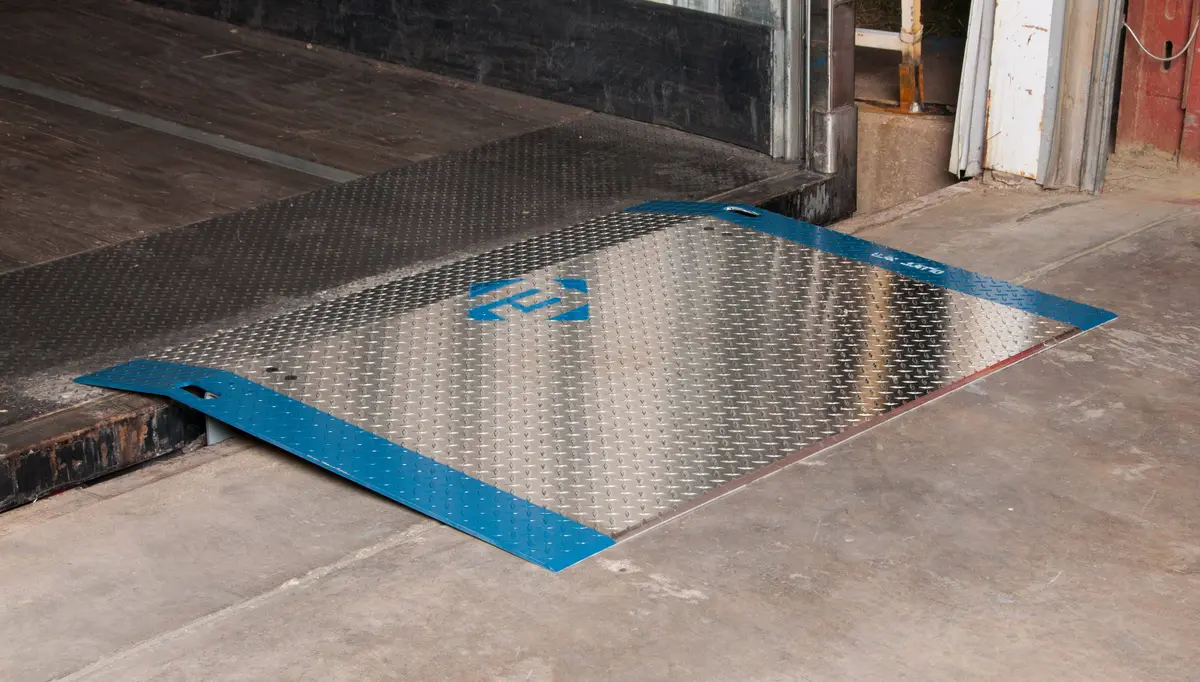

Bluff Aluminum Dock Plate 1/2″ Thick
- Recommended for non-powered loading applications
- Low-cost solution to light activity applications

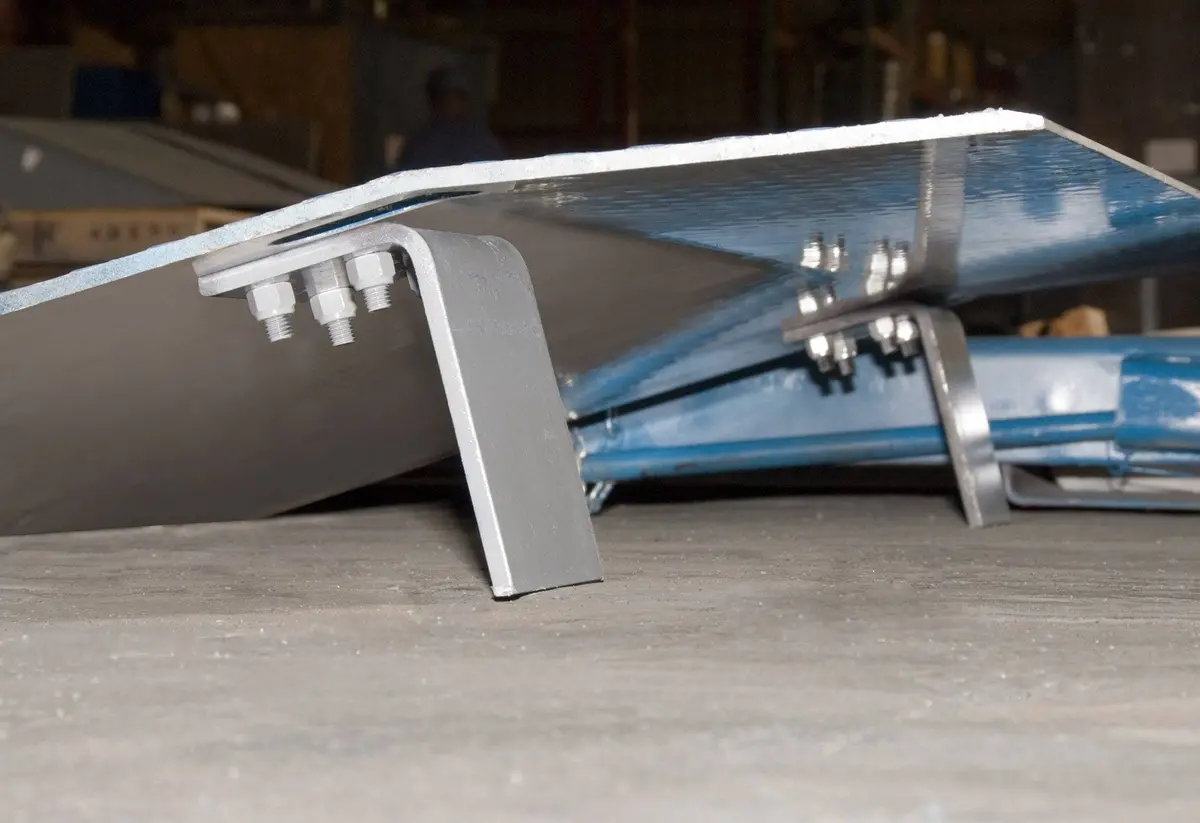

- Bolt-on steel legs for securing position between the dock and the trailer
- Lip bend is 11°. Standard lip length for conventional trailers is 11″; option of 14″ for refrigerated applications
- Designed to work well with pallet trucks or other non-powered loading equipment
- Machine-beveled deck edges allow for a smooth transition
| Material is Diamond Plated 1/2″ Aluminum for all models. | |||
| Model No | Capacity | Weight | Difference of Height Reach |
| B3636 | 4,175 lbs. | 79 lbs. | 3″ |
| B3648 | 3,550 lbs. | 106 lbs. | 5″ |
| B3660 | 2,800 lbs. | 130 lbs. | 7″ |
| B4836 | 6,554 lbs. | 101 lbs. | 3″ |
| B4848 | 4,895 lbs. | 133 lbs. | 5″ |
| B4854 | 4,200 lbs. | 150 lbs. | 6″ |
| B6036 | 9,580 lbs. | 104 lbs. | 2″ |
| B6048 | 5,900 lbs. | 161 lbs. | 5″ |
| B7236 | 9,450 lbs. | 144 lbs. | 3″ |
