Description

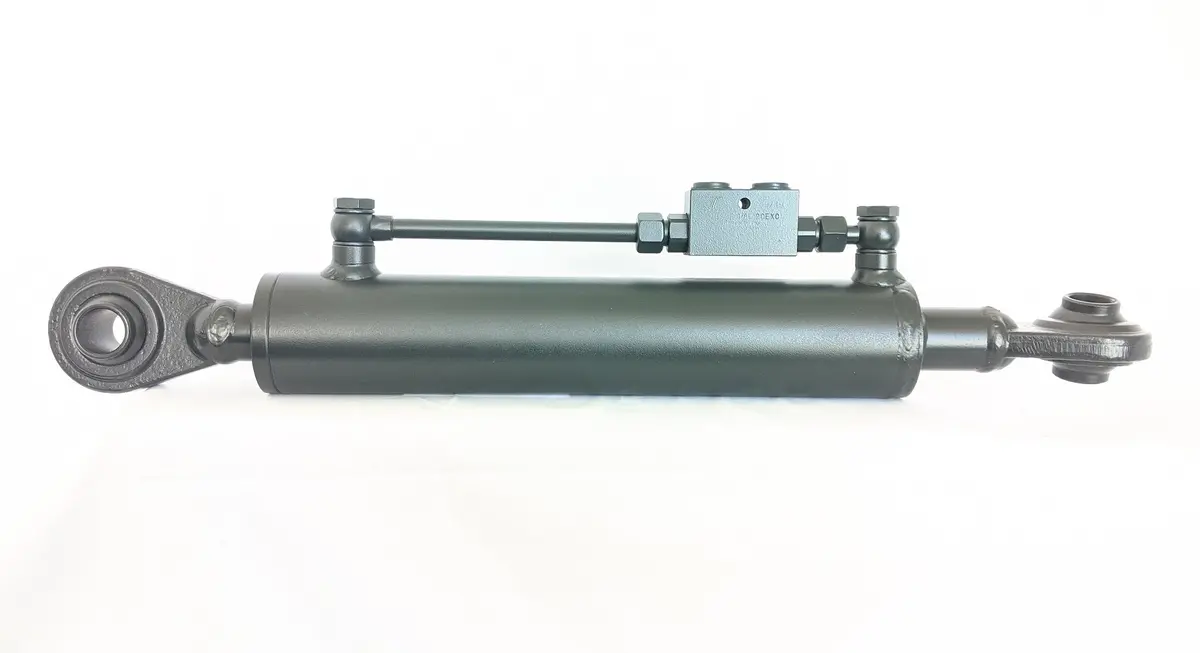

Our Category 2 Hydraulic Top Link with double-piloted check valve prevents cylinder drift and holds cylinder in position. This feature makes our hydraulic top link the best in the market!
Cylinder Features:
Part Number 91840
The tractor end of this cylinder is rotated 90° from our normal top link ends; this means that the check valve will come off the side of the cylinder when it’s mounted to help with clearance issues.
Category: 2
Pin hole: 1″
Min length: 21 9/16″
Max length: 29 13/16″
(Min and max lengths are taken from pin center to pin center)
Stroke: 8 1/4″
Cylinder bore: 3 1/8″
Rod diameter: 1 9/16″
The following two measurements are general guidelines, calculated on a working pressure of 2175 psi:
– Pushing capacity: 17,100 lbs
– Lifting capacity: 12,900 lbs
Double-piloted check valve
Ports 3/8″ BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite
Available hydraulic hose kits:
– kit with 1/2″ valve type couplers – 36″ long
– kit with 1/2″ ball type couplers – 36″ long – kit with 1/2″ valve type couplers – 24″ long
– kit with 1/2″ ball type couplers – 24″ long
Not sure which top link you need? This article may help: Hydraulic Top Link Cylinders
