Description

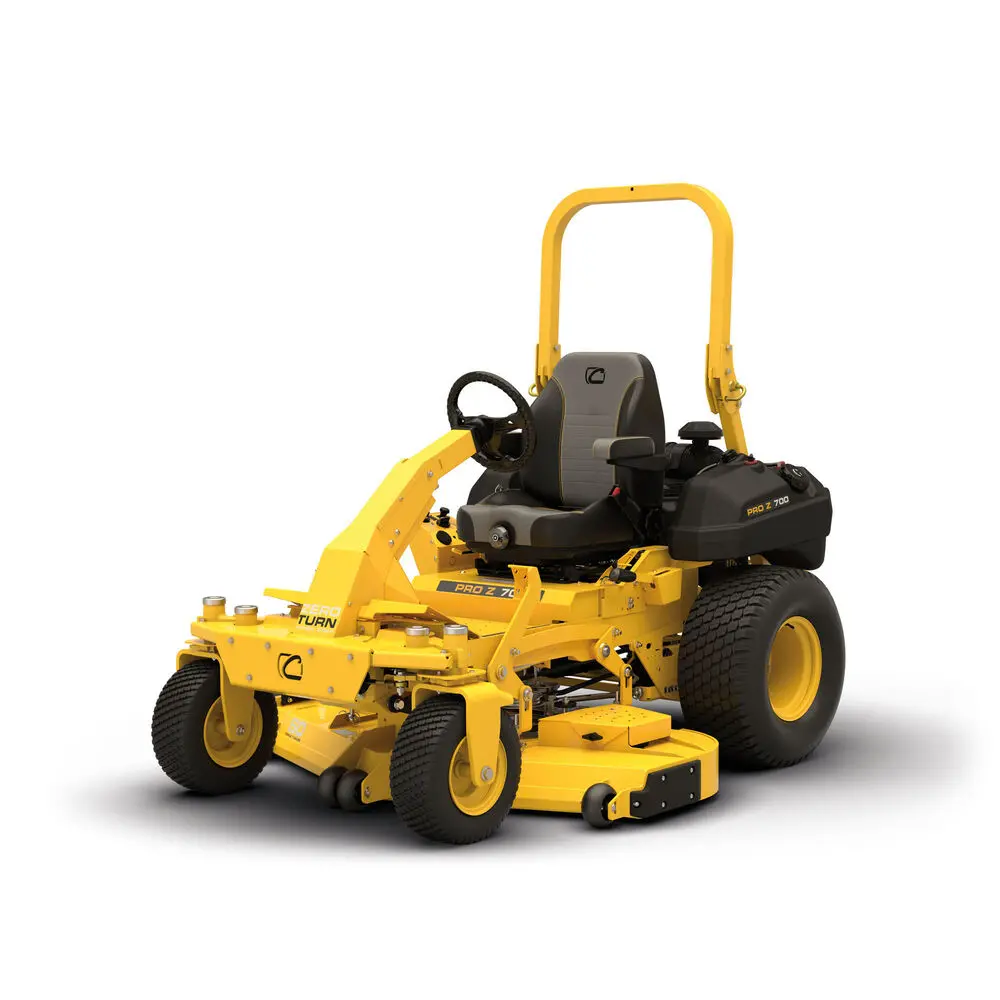

31HP / 999cc / KW FX921v 14cc PARKER HTG 60″Fab Deck-Triple 7
- 60” triple-7-gauge fabricated steel cutting deck with top, bottom and side reinforcements
- 3-year limited commercial warranty (no hour limitations)
- 31 HP Kawasaki FX921v (999cc) engine and 14cc Parker HTG transmission
Dependable for the long haul
Specifications
MOWER DECK
BLADE-TIP SPEED (APPROX)
18,500 fpm
BOTTOM REINFORCEMENT
7ga. (.187″) bottom plate
ROLLED LEADING EDGE REINFORCEMENT
1/4″ (.250″) steel
SIDE CONSTRUCTION
5/16″(.313) steel on trim and discharge sides
SPINDLE COVERS
Steel – Tool-less Quick Release
TOP REINFORCEMENT(S)
7ga. (.187″) top plate
TRIM-SIDE WEAR GUARD
3/4″ Thick UHMW-PE Replaceable Trim-side Wear Guard
DECK MATERIAL
fabricated 7ga. (.187”) steel shell
ANTI-SCALPING
2 Front HD w/ Bushings & Grease Zerk
DECK BLADES
Triple-blade / High-lift blade (standard) Marbain Blade
DECK HEIGHT ADJUSTMENT
Foot pedal with spring assist
16 Positions
DECK SIZE/TYPE
60″ FABRICATED DECK
DECK STYLE/CONSTRUCTION
7ga. top plate
7ga. bottom reinforcement
¼” rolled leading edge
DISCHARGE CHUTE
Heavy-duty Flex chute (impact resistant)
CUTTING HEIGHT
1″ – 5″
GENERAL
CRUISE CONTROL
N/A
CUP HOLDER
Integrated into Side Pod
FRONT TIRES
16″ x 6.5″ – 8″ turf
FRAME
Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
FRONT AXLE / YOLKS
2″ x 3″ solid axle tube with ISO dampening suspension and 1/2″ thick steel front yokes
LENGTH / WIDTH / HEIGHT*DISCHARGE CHUTE UP WIDTH*ROP’S UP HEIGHT
80″ L x 50″ W x 58″ H
PTO CLUTCH
Warner PTO Clutch (200 ft. lb.)
PARK BRAKE / BRAKING
Hand-operated lever with integrated hydro pump release lever
ROPS
2″x2″ Foldable 3 Position Low Profile Clearance
REAR BUMPER
5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
REAR TIRES
24″ x 12″ – 12″ (Turf Tread)
SEAT TYPE
High-back dial suspension with EVC cushion,
padded arm rests
ISO mounted base (lateral suspension)
angle back adjust and lumbar support
seat belt
THROTTLE/PTO/KEY SWITCH
HD Low-profile throttle lever, sealed key switch & electronic fingertip engagement pto
WEIGHT (APPROX)
1060 LBS.
HOUR METER
Standard electronic
SAFETY SYSTEMS
Operator presence
Engine & Drive System
ENGINE TYPE
Kawasaki FX921v
FUEL CAPACITY
Twin 7.45 gal. tanks (14.9 gal. total) with electronic fuel gauge
HORSEPOWER / CC’S
31hp – 999cc
TRANSMISSION
Parker HTJ Series
12cc pump / 260cc wheel motor
GROUND SPEED
Fwd: 12 mph / Rev: 6 mph
STEERING
LAP BAR / STEERING WHEEL ADJUSTMENT
Multi-position Quick-adjust steering column
LAP BAR / STEERING WHEEL CONTROL
High Performance Steering Wheel & Foot-pedal Control
SPECIFICATIONS
WARRANTY
3 year / no hour limit commercial warranty
