Description

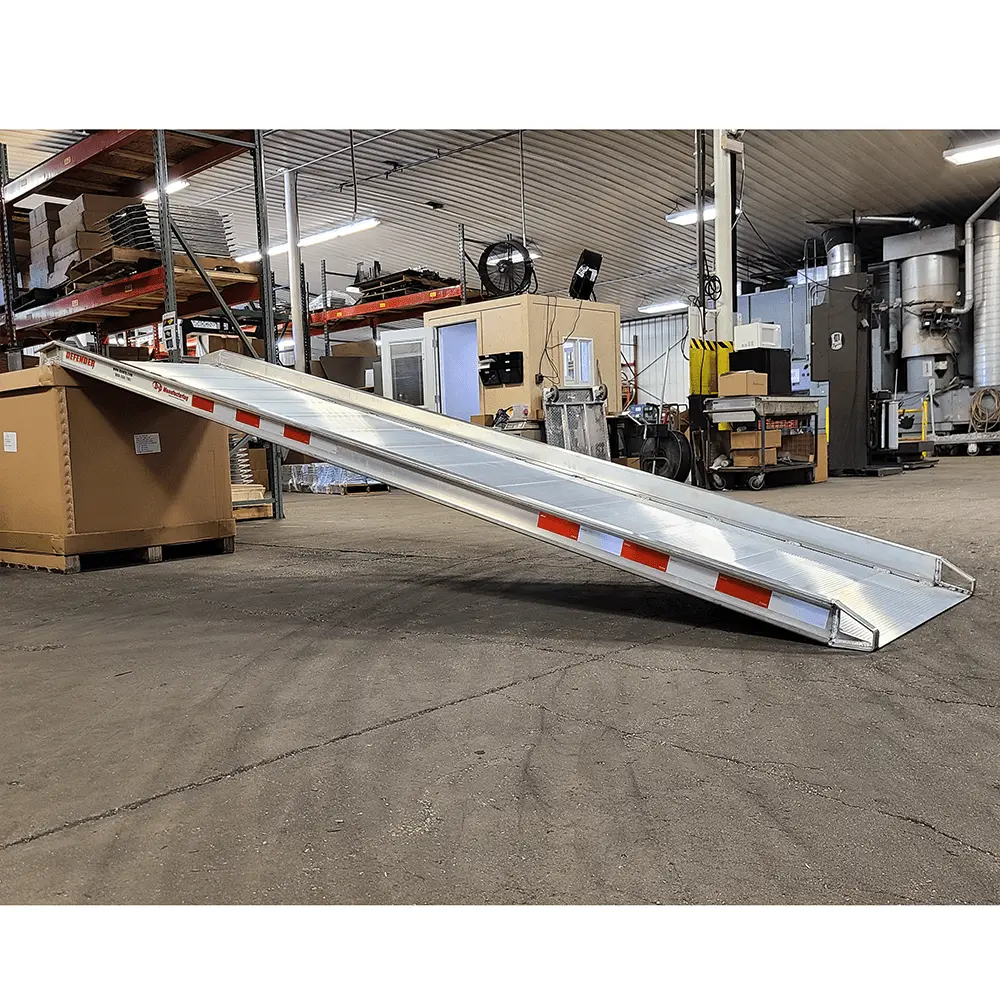

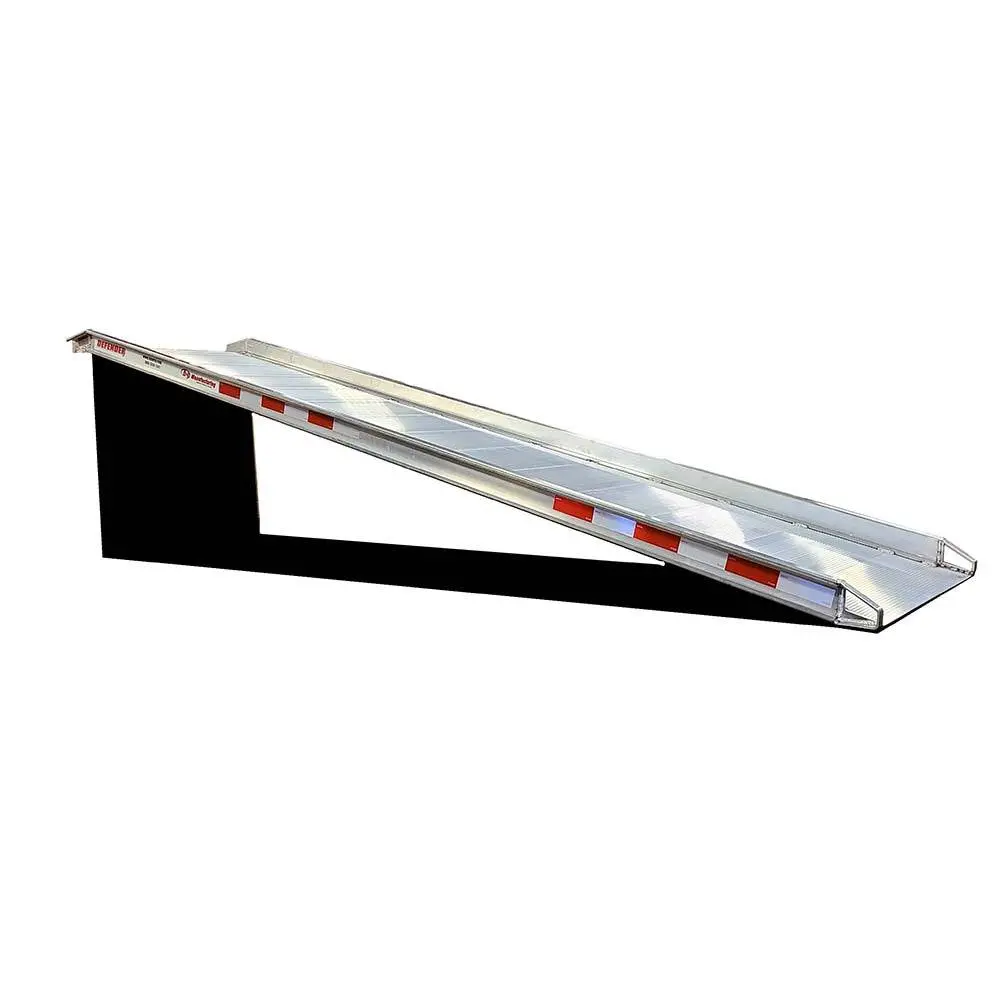

B&P Manufacturing – High Capacity Defender Series Walk Ramps
These ramps are designed to provide a smooth transition from the ramp to the ground. Constructed of 6000 series aluminum, fully contoured side rails add superior strength resulting in a load capacity of 4,000 lbs. Integrated welded handles added for ease of deployment and storage. Superior traction is provided by the Twin Tooth decking found on the walkway of these ramps. A necessity in inclement weather. Safety locking pin included on the apron end and a stop on the underside serve to maintain position of the ramp.
- Fully Contoured Oversized Rail for superior strength.
- Integrated, welded handles for reliability and ease of deployment/storage.
- Twin Tooth decking provides excellent traction in inclement weather.
- New side rail design helps prevent hand truck wheels from riding up and is made of 6000 series aluminum.
- Features a safety locking pin on apron end and stop on underside to maintain the correct position.
- DOT reflective tape on both sides for low light visibility.
| SKU | Capacity | Size(W x L x H) | Weight |
| HCR-3006 | 4,000 lbs. | 30″ x 72″ x 7″ | 78 lbs. |
| HCR-3012 | 4,000 lbs. | 30″ x 144″ x 7″ | 153 lbs. |
| HCR-3014 | 4,000 lbs. | 30″ x 168″ x 7″ | 178 lbs. |
| HCR-3016 | 4,000 lbs. | 30″ x 192″ x 7″ | 203 lbs. |
| HCR-3506 | 4,000 lbs. | 35″ x 72″ x 7″ | 85 lbs. |
| HCR-3512 | 4,000 lbs. | 35″ x 144″ x 7″ | 166 lbs. |
| HCR-3514 | 4,000 lbs. | 35″ x 168″ x 7″ | 194 lbs. |
| HCR-3516 | 4,000 lbs. | 35″ x 192″ x 7″ | 220 lbs. |
| HCR-3906 | 4,000 lbs. | 39″ x 72″ x 7″ | 89 lbs. |
| HCR-3912 | 4,000 lbs. | 39″ x 144″ x 7″ | 174 lbs. |
| HCR-3914 | 4,000 lbs. | 39″ x 168″ x 7″ | 202 lbs. |
| HCR-3916 | 4,000 lbs. | 39″ x 192″ x 7″ | 231 lbs. |
