Description

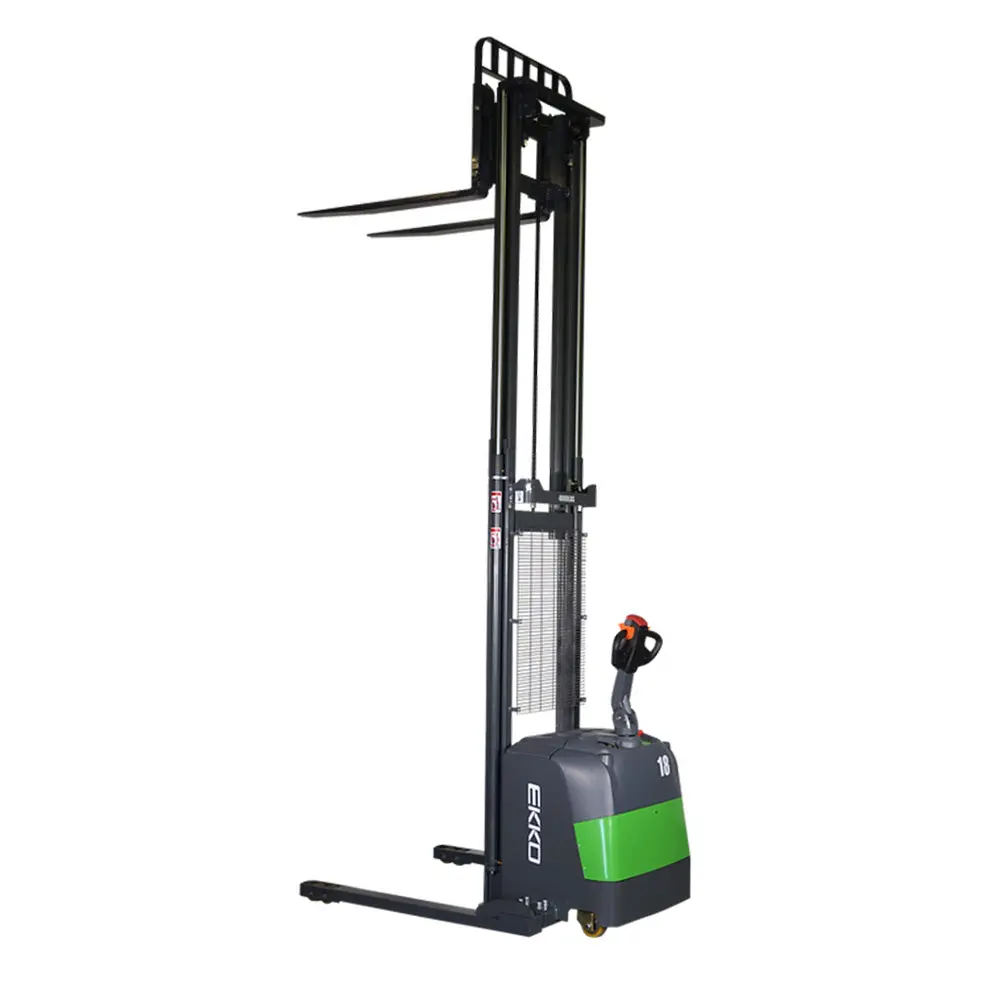

Discover the powerful performance of the EKKO EB18C-LI Electric Straddle Stacker, an ideal blend of a forklift, reach truck, and walkie stacker, engineered for optimal functionality in diverse industrial environments.
Constructed from premium steel and equipped with high-quality components, this straddle stacker excels in various operational conditions, ensuring reliability and durability. The stacker offers a significant load capacity of 4000 lbs and a lift height of 118/138/145 inches, suited for high-demand applications.

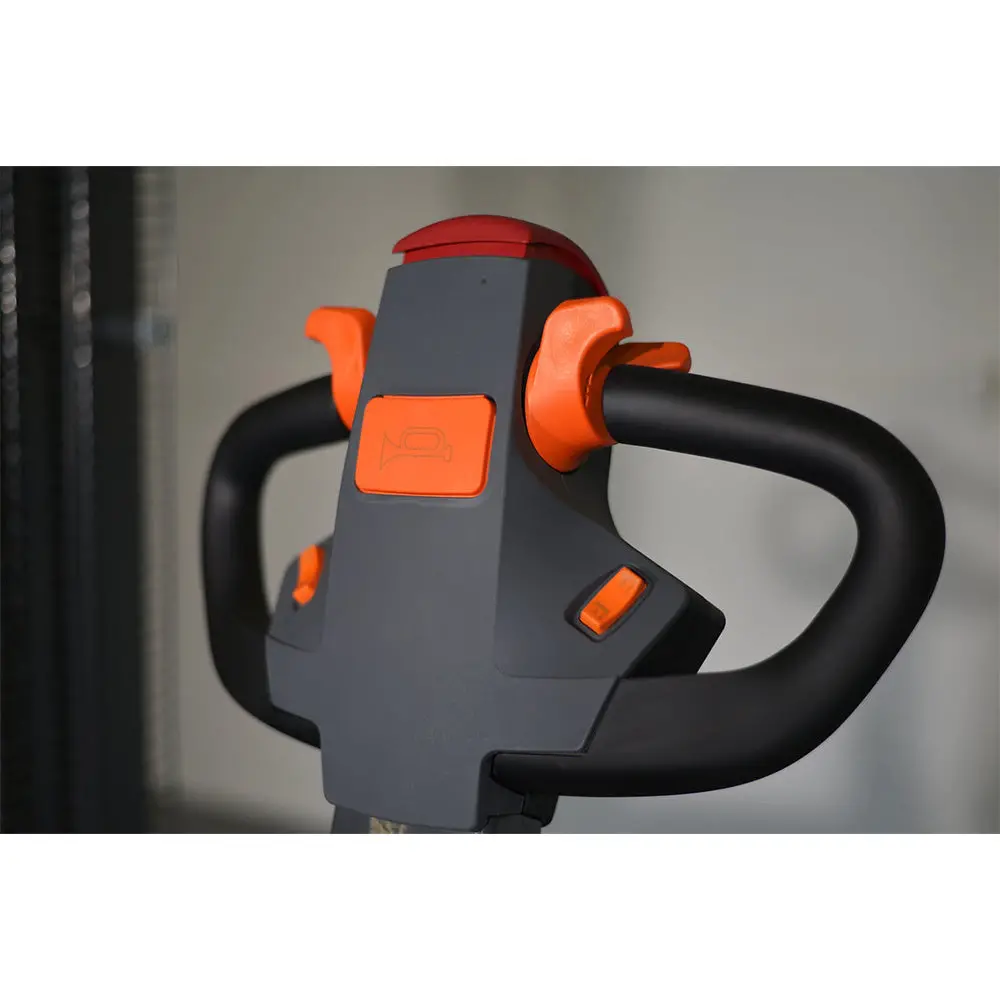

Featuring a Curtis controller, 24V AC drive motor, and a 24V lift motor, powered by a 24V/90Ah lithium battery, this stacker provides efficient power management and extended operation times. Its ergonomic handle, adjustable forks and legs, and polyurethane wheels make it a versatile choice for warehouses and manufacturing floors.
Key Specifications:
|
Model |
EB18C-118 |
|
|
Load capacity |
(lb) |
4000 |
|
The max. lifting height |
(in) |
118 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
3.94 |
|
Overall fork width |
(in) |
8.66 |
|
Lowered fork height |
(in) |
2.56 |
|
overall length |
(in) |
76.18 |
|
Adjustable legs |
(in) |
39.76-55.55 |
|
Turning radius |
(in) |
62.83 |
|
Max width |
(in) |
61 |
|
Extended mast height |
(in) |
147.64 |
|
Lowered mast height |
(in) |
79.33 |
|
Battery voltage |
(V/Ah) |
24/90 Lithium |
|
The charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt |
|
Driving Motor |
(W) |
750 Watt |
|
Service Weight |
(lb) |
2270 |
|
Model |
EB18C-138 |
|
|
Load capacity |
(lb) |
4000 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
3.94 |
|
Overall fork width |
(in) |
8.66-82.09 |
|
Lowered fork height |
(in) |
2.56 |
|
overall length |
(in) |
76.18 |
|
Adjustable legs |
(in) |
39.76-55.55 |
|
Turning radius |
(in) |
62.83 |
|
Max width |
(in) |
61 |
|
Extended mast height |
(in) |
166.93 |
|
Lowered mast height |
(in) |
89.17 |
|
Battery voltage |
(V/Ah) |
24/90 Lithium |
|
The charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt |
|
Driving Motor |
(W) |
750 Watt |
|
Service Weight |
(lb) |
2360 |
|
Model |
EB18C-145 |
|
|
Load capacity |
(lb) |
4000 |
|
The max. lifting height |
(in) |
145 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
3.94 |
|
Overall fork width |
(in) |
8.66-82.09 |
|
Lowered fork height |
(in) |
2.56 |
|
overall length |
(in) |
76.18 |
|
Adjustable legs |
(in) |
39.76-55.55 |
|
Turning radius |
(in) |
62.83 |
|
Max width |
(in) |
61 |
|
Extended mast height |
(in) |
174.8 |
|
Lowered mast height |
(in) |
93.19 |
|
Battery voltage |
(V/Ah) |
24/90 Lithium |
|
The charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt |
|
Driving Motor |
(W) |
750 Watt |
|
Service Weight |
(lb) |
2380 |
