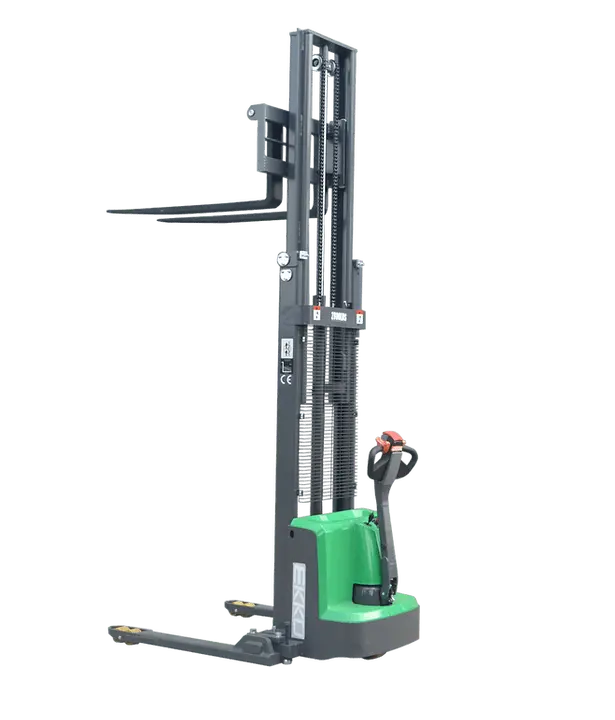

EKKO EB13E-LI Full Powered Straddle Stacker
The EKKO EB13E-Li Lithium Electric Straddle Stacker is a cutting-edge material handling solution that combines the functionality of a forklift, reach truck, and a walkie stacker. This stacker is ideal for various tasks such as loading and unloading trucks, working in loading docks, stock rooms, manufacturing floors, and warehousing. With a load capacity of 2800 lbs and a raised height of 119, 138, or 145 inches, the EB13E-Li is built from high-quality steel and components, ensuring durability and adaptability to any terrain and operational demands.
Key Features:
- Versatile Load Handling: Capable of lifting loads up to 2800 lbs.
- High Lifting Capability: Achieves a lifting height of 119, 138, or 145 inches.
- Adjustable Forks and Legs: Provides flexibility for handling a range of pallet sizes.
- Efficient Power System: Equipped with a Curtis Instrument controller, 24V center drive motor, and lift motor.
- Lithium Battery Power: Includes a 24V/50Ah Lithium battery for long-lasting performance.
- Ergonomic Design: Features an ergonomic handle and controls for ease of operation.
- Robust Construction: Steel is built with robotic welding for enhanced durability.
- Warranty: Comes with a 3-year limited warranty.
Specifications:
- Model: EB13E-LI
- Turning Radius: 52.6 inches
- Service Weight: 1,325 lbs
EKKO EB13E-Li Electric Straddle Stacker: An excellent choice for businesses seeking a powerful, versatile, and reliable electric material handling tool.
- Load Capacity 2800 lb
- Raised Height 119, 138, or 145″
- Adjustable Forks 8.3-33.5″
- Adjustable Legs 45.7-59.1″
- Fork Length 45.3″
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Year Limited Warranty
|
Model |
EB13E-LI |
|
|
Load Capacity |
(lbs) |
2800 |
|
The max. lifting height |
(in) |
119, 138, or 145″ |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
135 |
|
Lowered mast height |
(in) |
82 |
|
Battery voltage (dimensions) |
(in) |
24V/50Ah Lithium |
|
Internal Charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
|
Service Weight |
(lbs) |
1325 |
