Description

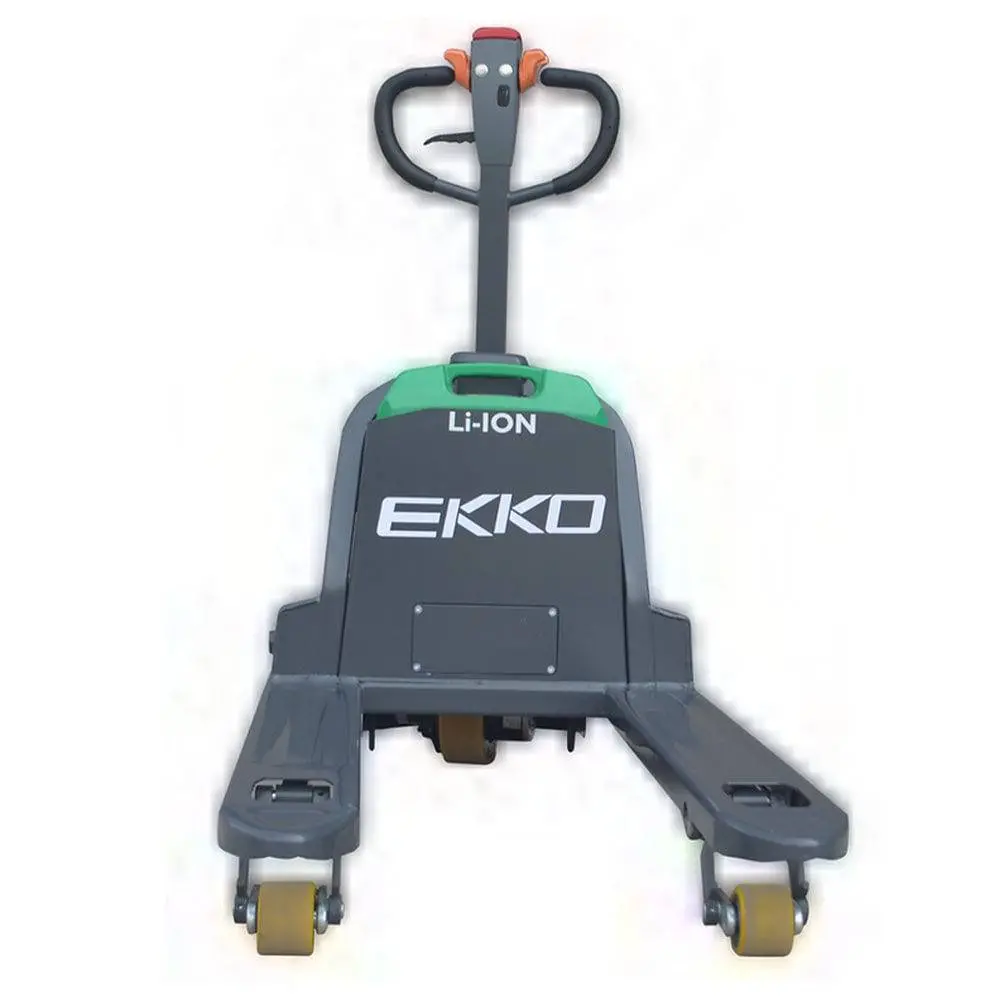

Lithium-Ion Pallet Jack – 3300 lbs Capacity
The EKKO EP15SLI Lithium Iron Phosphate Electric Walkie Pallet Jack is an advanced material handling solution, designed to offer the functionality of a conventional pallet jack with the added benefits of full power lifting and driving. It is perfectly suited for tasks in loading docks, warehouses, stock rooms, and manufacturing areas. With a load capacity of 3300 lbs and a range of ergonomic features, the EP15SLI is built for durability and ease of use in various operational settings.
Key Features:
- High Load Capacity: Supports up to 3300 lbs, ideal for a range of industrial applications.
- Lithium Iron Phosphate Battery: Equipped with a 24V/30Ah LiFePO4 battery, providing long-lasting and efficient power.
- User-Friendly Design: Features an ergonomic handle and controls for comfortable operation.
- Pinwheel Capability: Enhances maneuverability in tight spaces.
- Durable Construction: Made with high-quality steel and components for robustness and longevity.
- Polyurethane Wheels: Ensure smooth movement and stability on different surfaces.
- Built-In Charger: Adds to the convenience and consistent power supply.
- Quiet Operation: Operates at a noise level of 70 dB(A) for a comfortable working environment.
- Warranty: Includes a 3-year limited warranty for added assurance.
Specifications:
- Model: EP15SLI
- Service Weight: 370 lbs
- Fork Size: 27×48 inches
EKKO EP15SLI Electric Walkie Pallet Jack: A powerful, efficient, and convenient solution for businesses seeking an advanced electric pallet jack for their material handling needs.
- Lithium 24V Powered
- Load Capacity 3300 lb
- Fork Size 27×48
- Raised Height 7.87″
- Lowered Height 3.35″
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- (1) Lithium Iron LiFePO4 Battery Included 24V/30Ah
- 3 Years Limited Warranty
| Model | EP15SLI | |
| Drive type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 3300 |
| Load Centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 39.92 |
| Wheel Base | y (Inch) | 51.69 |
| Tire material | PU | |
| Driving wheel size | w(Inch) | 8.27-2.76 |
| Bearing wheel size | w(Inch) | 3.15-3.35 |
| Qty of wheel, Front/Rear(x=driving wheel) | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| The height of handle in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/ b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min. Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turning Radius | Wa (Inch) | 57.8 |
| Driving Speed, load/unload | (km/h) | 4.2/4.5 |
| Maximum gradeability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/40 |
| Battery Weight(±5%) | LBS | 22.4 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | 70 |
| Service Weight(with battery) | LBS | 370 |
