Description
Lincoln Tie Rod for Modular UV Divider Valves w/ 5 Sections

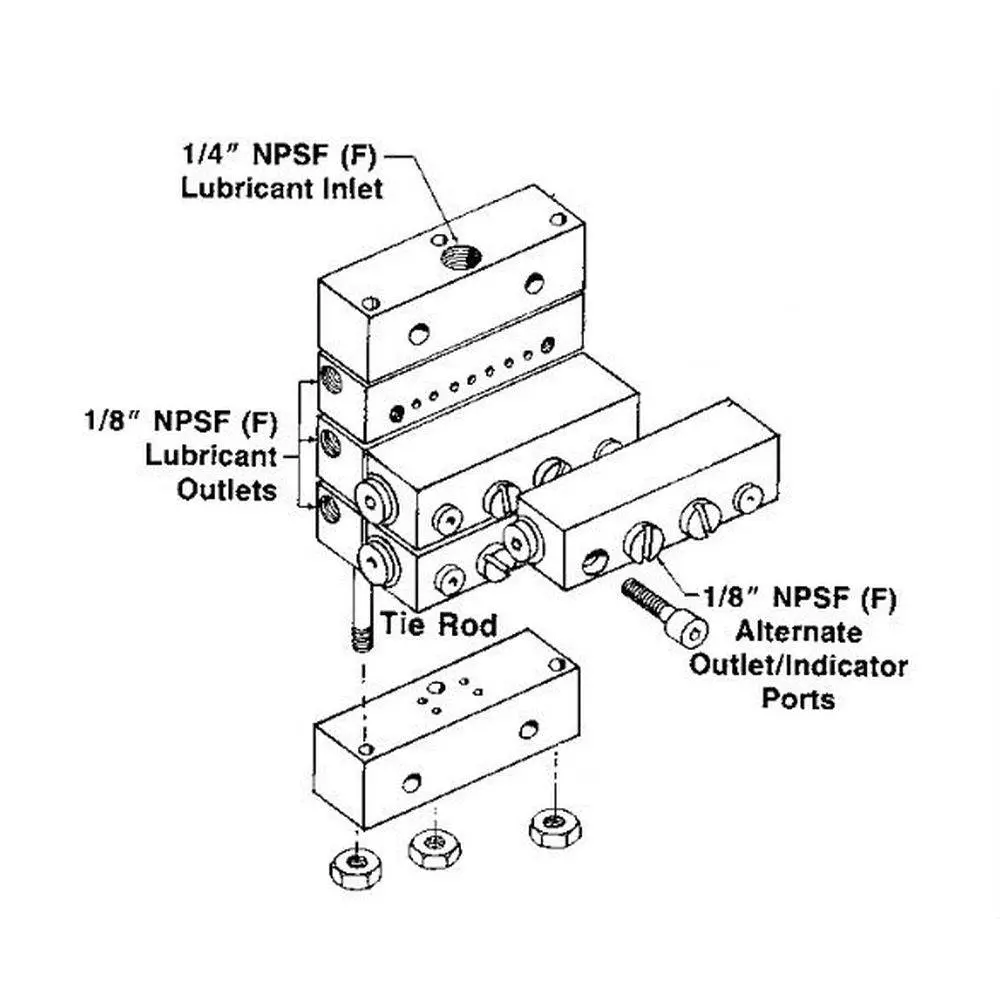

UV divider valves are designed to meter oil or grease in automatic or manual systems installed on all types of industrial machinery. Segmented baseplate assembly contains all inlet and outlet connections. Alternate outlet ports are located on the face of the divider valve which may be used for installation of performance indicators.
Here are links to the modular UV Divider Valves (882051, 882052), Inlet Sections (87918), Intermediate Sections (87919) and End Sections (87920)
| Model No. | 250292 |
| Brand | Lincoln |
| Maximum Lube Points/Assembly | 16 |
| Maximum Operation Pressure | 3500 psi/240 bar |
| Inlet Section Model | 87918 |
| Inlet Section Thread | 1/4″ NPSF (f) |
| Intermediate Section Model | 87919 |
| Intermediate Section Thread | 1/8″ NPSF (f) |
| Performance Indicator Port | 1/8″ NPSF (f) |
| Material of Construction | Yellow chromate plated steel |
| Seal Construction | Flourelastomer |
