Description

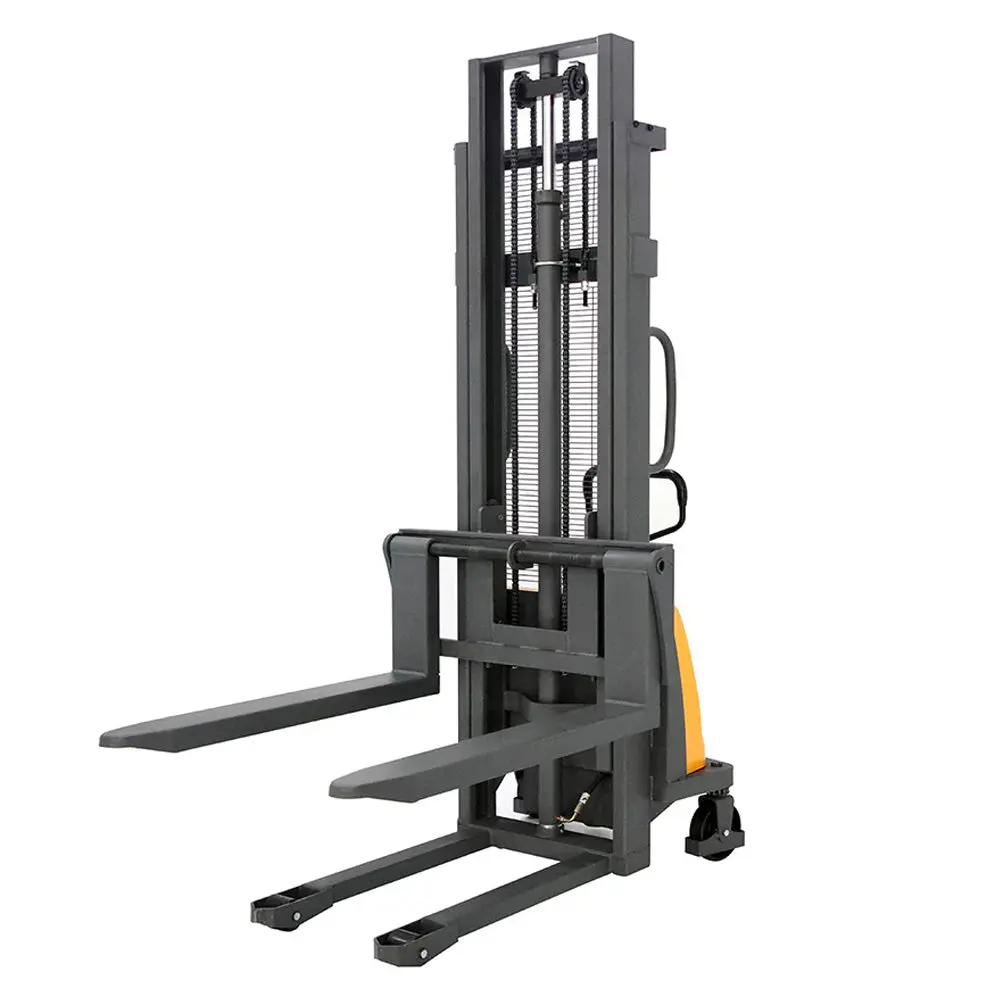

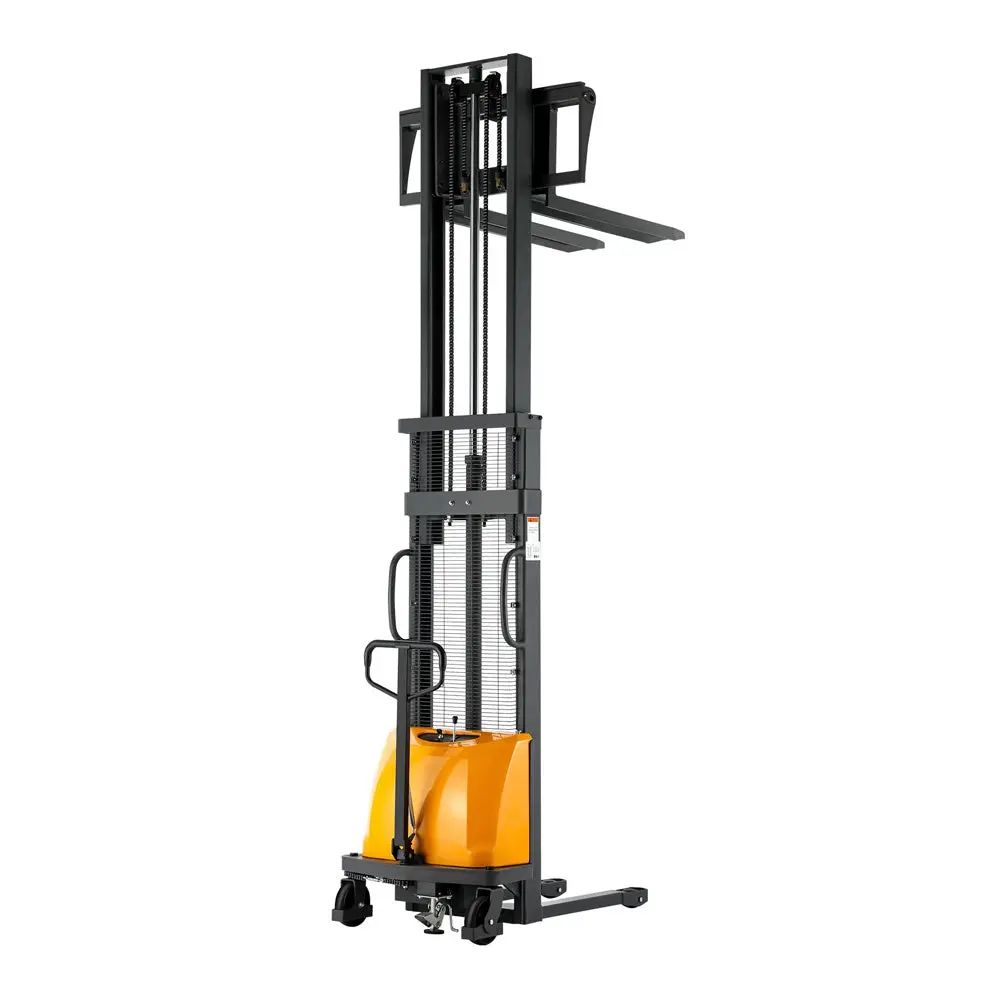

Power Lift Fixed Stacker, 3300 lbs Capacity, 98″-118″ Lifting Height
The Power Lift Fixed Stacker combines manual push and pull with powered lifting and lowering, making it an ideal solution for material handling tasks in warehouses and industrial settings. With a load capacity of 3300 lbs and lifting heights ranging from 98″ to 118″, it offers robust performance and versatility.
Featuring a 1,500-watt lift motor and a special chain steering system, this stacker ensures easy operation for lifting and lowering. The strong battery with a 12V/100AH capacity includes an overcharge protection design for extended battery life. Adjustable forks and fixed legs provide flexibility and stability for various load sizes.
Dimensions
- Overall Length: 68.7″
- Overall Width: 37.8″
- Recommended Aisle Width: 90″
- Turning Radius: 56″
- Mast Height Lowered: 82.7″
- Mast Height Raised: 140.3″
- Load Center: 15.7″
- Wheel Diameter: 7″/3.15″
Forks
- Fork Height, Lowered: 3.5″
- Thickness: 2.3″
- Width: 5.6″
- Length: 42″
- Adjustable Fork Width: 11.8″-36.6″
Features
- Foot pedal brake for safety and ramp usage
- Equipped with an explosion-proof valve to prevent sudden drop of forks and ensure operator safety
- Hydraulic leveler control for lifting and lowering with adjustable speed
Speed
- Lifting Speed (laden/unladen): 2/3.2 mph
- Lowering Speed (laden/unladen): 3.9/3.5 mph
Specifications
- Not explosion proof
- Designed for use on flat ground
- Avoid uneven grounds with potholes and large ramps
- Normal ambient temperature range: -13°F to +104°F
- Fully charge the battery before use to avoid damaging cells
- Charger plugs into standard 110V-120V outlets
- Charge the truck once a month even if not in use
Model A-3011
- Load Capacity: 3300 lbs
- Legs Type: Straddle
- Battery Capacity: 12V/100AH
- Lifting Height: 98″
- Height Lowered: 3.5″
- Weight: 950 lbs
Model A-3012
- Load Capacity: 3300 lbs
- Legs Type: Straddle
- Battery Capacity: 12V/100AH
- Lifting Height: 118″
- Height Lowered: 3.5″
- Weight: 990 lbs
Model A-3016
- Load Capacity: 3300 lbs
- Legs Type: Fixed
- Battery Capacity: 12V/100AH
- Lifting Height: 118″
- Height Lowered: 3.5″
- Weight: 910 lbs
