Description

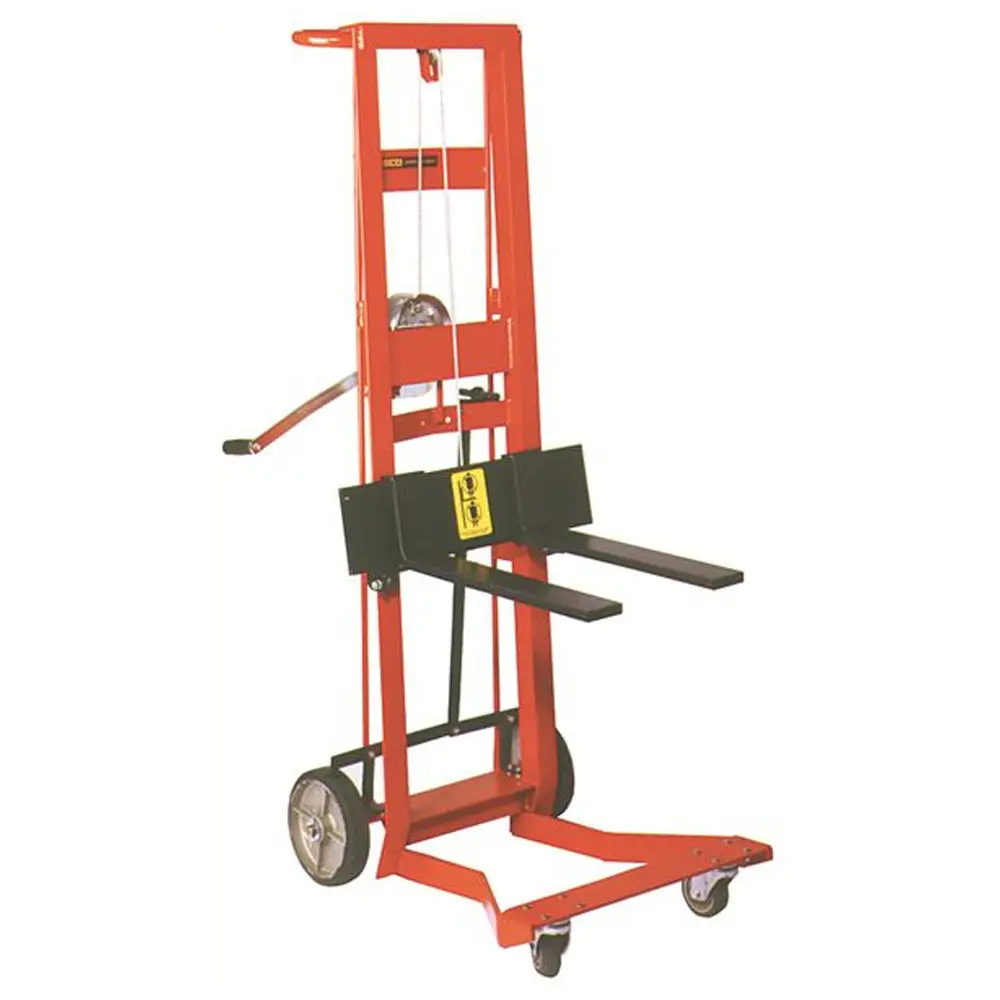

Four-wheeled winch Lift with Adjustable Forks and Auto Brake, 750 lb Capacity
The Four-Wheeled Winch Lift offers a reliable solution for heavy lifting with a 750 lb capacity. This lift features a low-maintenance design and a winch that allows for easy horizontal storage and transportation. All models come standard with wheel locks for added safety.
The platform on the four-wheeled model sits 5.75″ above the floor, and the lift heights vary among models to suit different applications. All 54″ lifts have an overall height of 60.5″, while all 40″ lifts have an overall height of 48.5″. The lift is equipped with 8″ x 2″ wheels with 0.75″ precision ball bearings and 3.5″ diameter polyurethane ball bearing front swivel casters.
This lift comes with a 1-year warranty, providing peace of mind for durability and reliability in material handling operations. Adjustable forks are available on certain models to meet various lifting needs.
Specifications
| Specification | Part Number: 260020 | Part Number: 260021 | Part Number: 260022 | Part Number: 260023 | Part Number: 260024 |
|---|---|---|---|---|---|
| Model | WDPL-40-1620 | WDPL-54-2222 | WDPL-54-2230 | WDPL-40-F | WDPL-54-F |
| Capacity | 750 lb | 750 lb | 750 lb | 750 lb | 750 lb |
| Wheel | (2) 8″ x 2″ | (2) 8″ x 2″ | (2) 8″ x 2″ | (2) 8″ x 2″ | (2) 8″ x 2″ |
| Swivel Caster | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane | (2) 3.5″ Polyurethane |
| Lift Height | 40″ | 54″ | 54″ | 40″ | 54″ |
| Platform Width | 20″ | 22″ | 22″ | N/A | N/A |
| Platform Length | 16″ | 22″ | 30″ | N/A | N/A |
| Width Forks | N/A | N/A | N/A | 3″ | 3″ |
| Length Forks | N/A | N/A | N/A | 18″ | 18″ |
| Load Center | 10″ | 10″ | 15″ | 10″ | 10″ |
| O.A.H. | 48.5″ | 60.5″ | 60.5″ | 48.5″ | 60.5″ |
| Overall Width | 22.5″ | 22.5″ | 30″ | 22.5″ | 22.5″ |
| Overall Height | 48.5″ | 60.5″ | 60.5″ | 48.5″ | 60.5″ |
| Overall Depth | 32″ | 32″ | 32″ | 32″ | 32″ |
| Weight | 113 lb | 153 lb | 163 lb | 132 lb | 163 lb |
