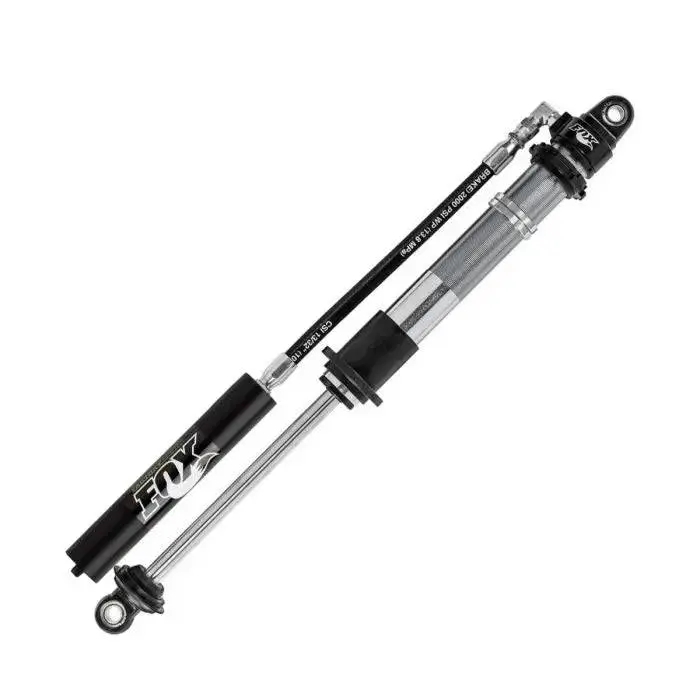

Fox 2.0 Factory Race Coilover Shock with Remote Reservoir — 7/8″ Shaft

Description

Fox’s Factory Race Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

Shock Family Features:

• Body – Smooth bore and honed seamless steel
• Body Plating – Zinc plated and clear coated for a long lasting finish
• Components – Black anodized, CNC machined 6061-T6 billet aluminum
• Valving – Tunable, velocity sensitive deburred valve shims
• Hose – Stainless Steel braided -8 hose for improved durability features high flow crimped fittings
• Seals – Redundant sealing pack system with main seal, wiper seal and scraper seal
• Oil – JM92 Advanced Suspension Fluid for improved performance at variable temperatures
• Shafts – 7/8″ 17-4 H900 hard chrome plated stainless steel
• Bearing – Spherical -8 series, PFTE-lined, heat-treated alloy steel

All coil-over shocks come with required spring hardware, including lower spring retainer, upper preload adjuster, preload lock ring, spring slider/divider, and dual rate cross over rings.

Each shock includes 2 rubber reservoir mounting blocks and 2 stainless steel worm drive hose clamps. Typical mounting locations for the reservoir include to the body of the shock or to cage tubework

• 1.25″ mounting width with 1/2″ bolt
• Fox 50/70 valving

Uses 2.5″ ID springs (Sold separately)
Sold Individually, not as a pair or set

No DSC Adjuster:

Travel	Shaft Size	Compressed	Extended	Reservoir Size	Reservoir Hose Length
10	7/8″	16.1	26.1	2.0×11.0	14″
12	7/8″	19.1	31.1	2.0×11.0	14″
14	7/8″	21.1	35.1	2.0×11.0	14″
16	7/8″	24.1	40.1	2.0×11.0	14″
18	7/8″	26.1	44.1	2.0×11.0	14″

Yes DSC Adjuster:

Travel	Shaft Size	Compressed	Extended	Reservoir Size	Reservoir Hose Length
10	7/8″	16.1	26.1	2.5×10″	17.75″
12	7/8″	19.1	31.1	2.5×10″	17.75″
14	7/8″	21.1	35.1	2.5×10″	17.75″
16	7/8″	24.1	40.1	2.5×10″	17.75″
18	7/8″	26.1	44.1	2.5×10″	17.75″

Rotating, -10 Heims

Travel	Shaft Size	Compressed	Extended	Reservoir Size	Reservoir Hose Length
10	7/8″	16.18	26.15	2.0×11.0	17.75″
12	7/8″	19.18	31.15	2.0×11.0	17.75″
14	7/8″	21.18	35.15	2.0×11.0	17.75″
16	7/8″	24.18	40.15	2.0×11.0	17.75″
18	7/8″	26.18	44.15	2.0×11.0	17.75″

PDF:

605-00-035_REV_B
