Description

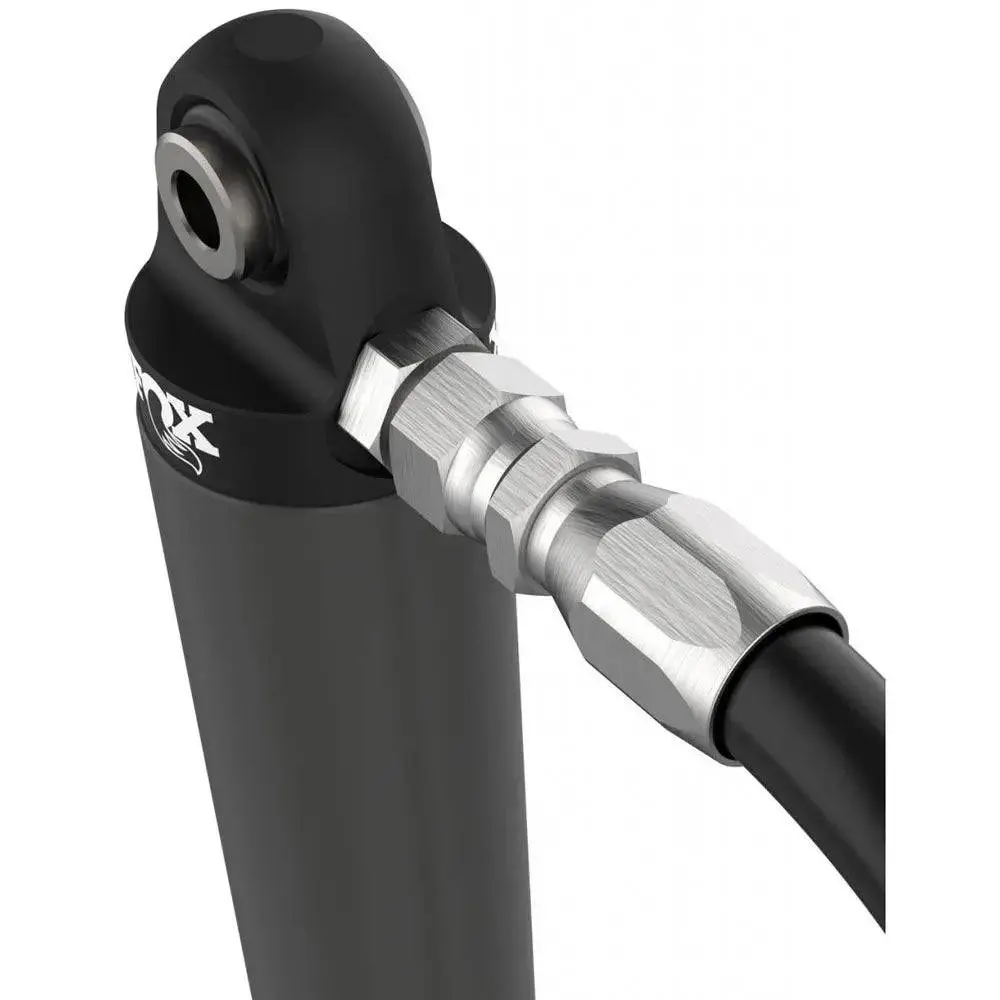

Factory Race Series Smooth Body shocks deliver race winning damping performance and proven components in an easy-to-mount assembly. Smooth Body shocks are ideal for applications that are already equipped with a primary spring to suspend the vehicle’s weight (i.e. leaf springs or torsion bar).
Features:
- Body Finish: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
- Bearing: Wire ring bearing design
- Seals: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
- Wear Band: PTFE coated bronze impregnated steel piston wearband
- Eyelet: 1.95” black anodized billet aluminum lower eyelet standard
- FAV Cap: Orange anodized billet aluminum FAV cap
- Top Mount: Eyelet
- Bottom Mount: Eyelet
- Reservoir: Remote
- Reservoir Hose: -10 x 18.00″
- Mounting: 1/2″ x 1-1/2″
Sold Individually, not as a pair or set
| Travel | Extended | Collapsed | Reservoir Size |
| 8 (7.95″) | 24.45″ | 16.5″ | 2.55″ x 10″ |
| 10 (9.95″) | 28.45″ | 18.5″ | 2.55″ x 10″ |
| 12 (11.95″) | 32.45″ | 20.5″ | 2.55″ x 10″ |
| 14 (13.95″) | 37.45″ | 23.5″ | 2.55″ x 14″ |
| 16 (15.95″) | 41.45″ | 25.5″ | 2.55″ x 14″ |
