Description
Factory Race Series coil-over shocks are the foundation of race-winning suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.
Features:
- BODY FINISH: Dual coated body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat for improved corrosion resistance and durability
- BEARING: Wire ring bearing design
- SPRING DIVIDER: Black anodized, CNC machined 6061-T6 billet aluminum spring divider
- COMPONENTS: Black anodized, CNC machined 6061-T6 billet aluminum

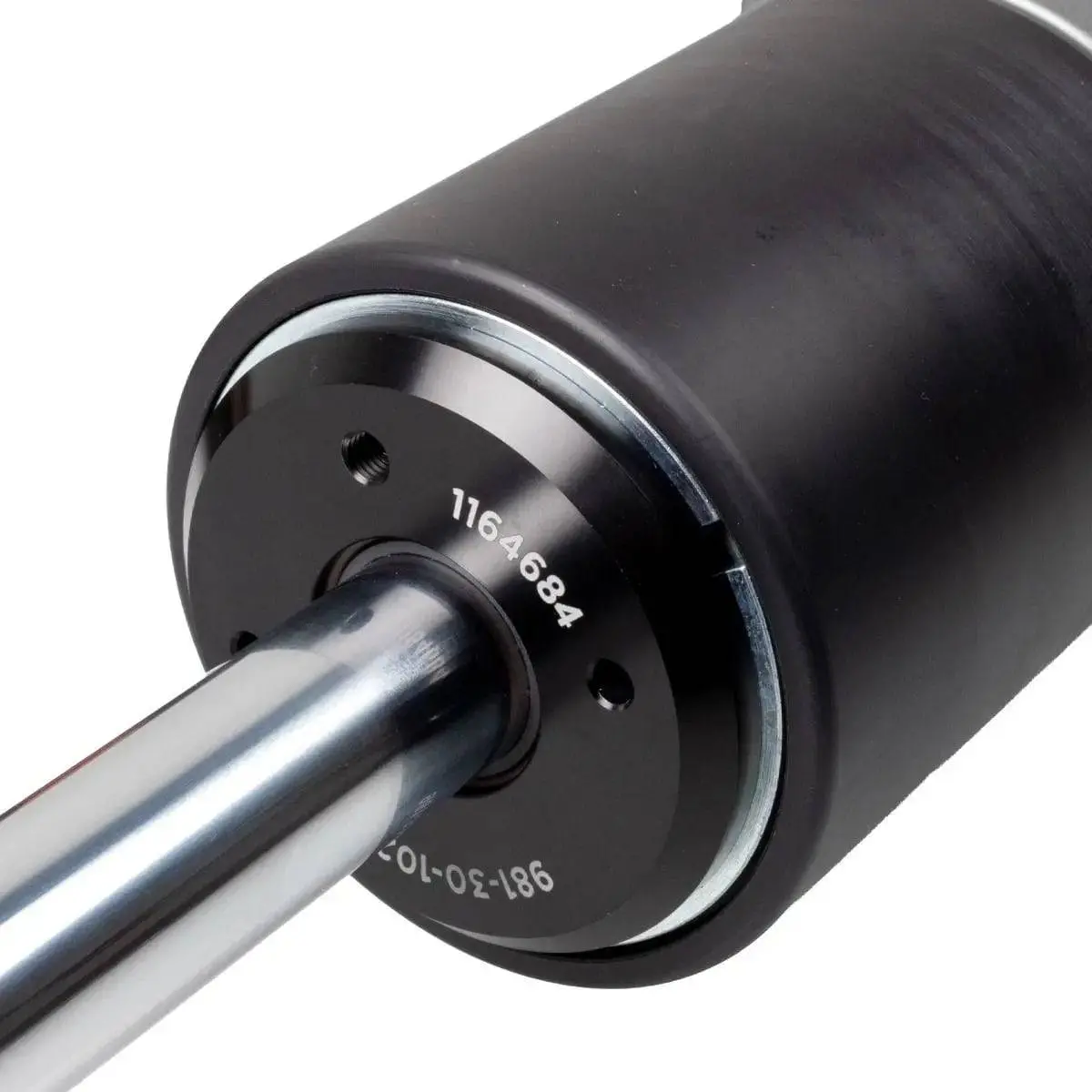

- BODY: Smooth bore and honed seamless steel
- SHAFT: 1″ hard chrome plated 17-4 H900 stainless steel shafts
- PISTON: 7075 hard-anodized billet aluminum 9-port high-flow piston
- VALVING: Tunable, velocity sensitive deburred valve shims
- SEALS: High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
- OIL: JM92 Advanced Suspension Fluid for superior race proven performance from 0-400° F

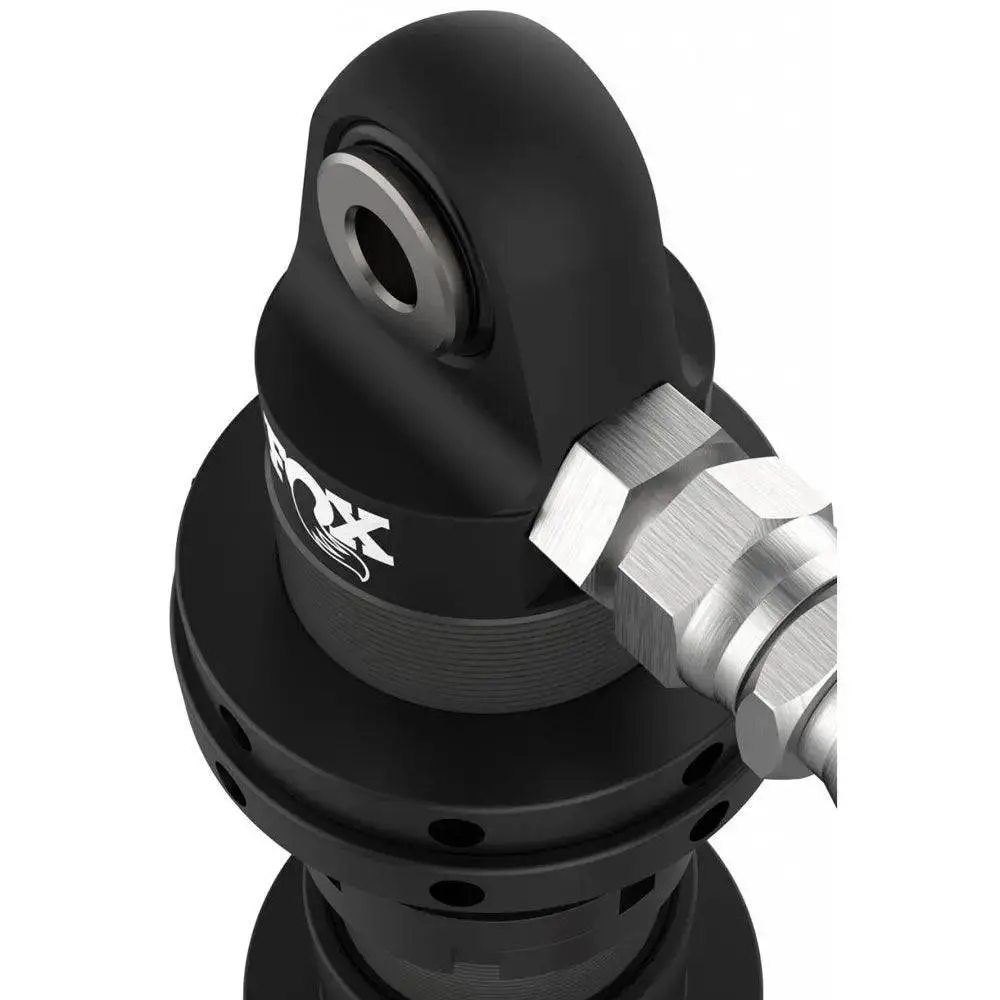

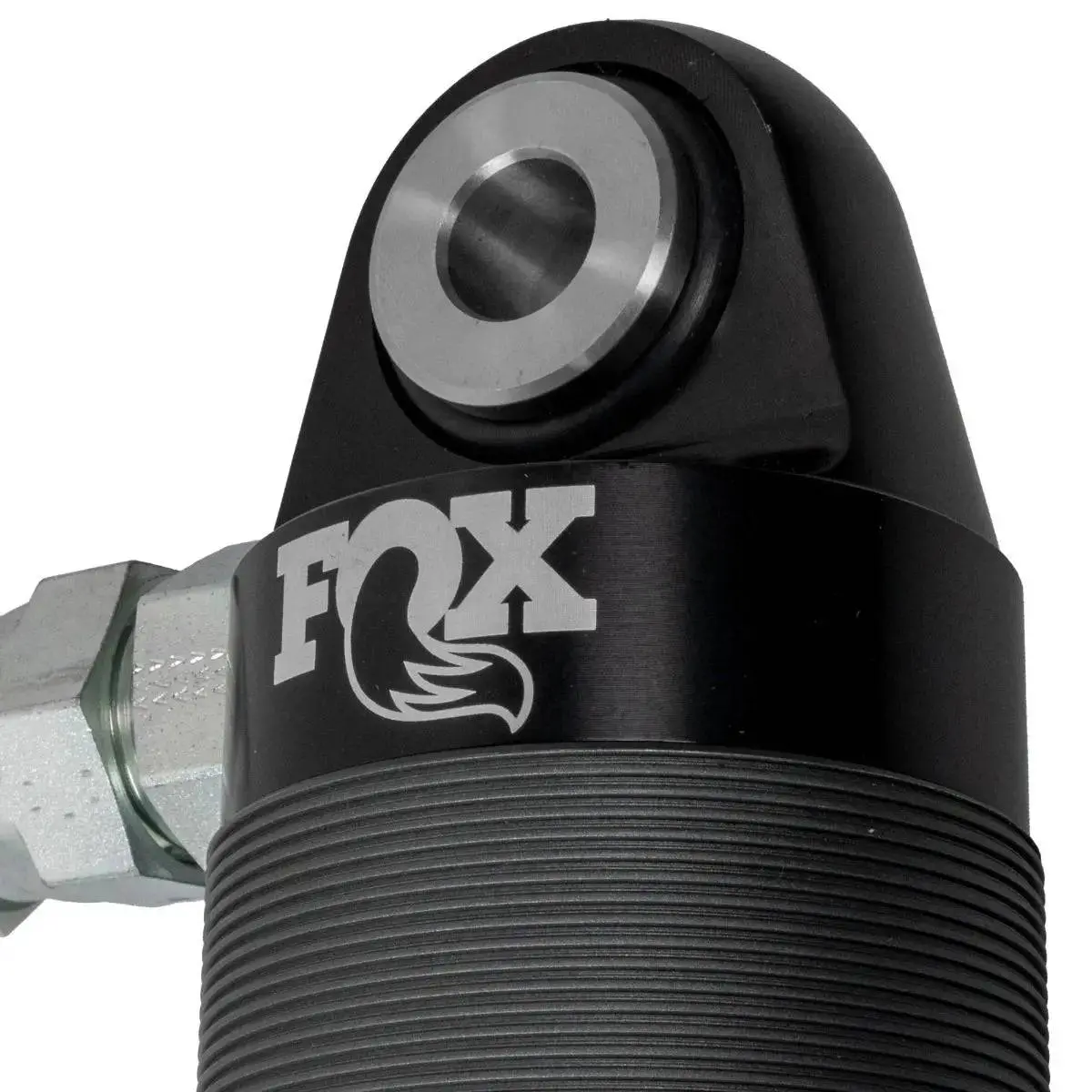

- HEIMS: PFTE-lined, heat-treated steel spherical bearings
- HOSE/FITTINGS: Reusable ORB O-ring port hose fittings for superior seal
- INCLUDED ACCESSORIES: Adjustable preload rings, crossover rings, spring divider and spring retainer
- ADJUSTMENTS: Piston Valving – Compression, Rebound | Spring preload | Spring dual-rate crossover point
Configuration:
- RESERVOIR: Remote
- ADJUSTER: Non-adjustable
- EYELET LENGTH: 2.50″
- MOUNTING: 5/8″ x 1.50″
- SPRING COMPATIBILITY: 3.75″ ID
Uses 3.75″ ID springs (Sold separately)
Sold Individually, not as a pair or set
| Travel | Compressed | Extended | Reservoir Size |
| 10 | 19.5 | 29.5 | 3.0×12.0 |
| 12 | 21.5 | 33.5 | 3.0×12.0 |
| 14 | 24.5 | 38.5 | 3.0×14.0 |
| 16 | 26.5 | 42.5 | 3.0×16.0 |
