Description

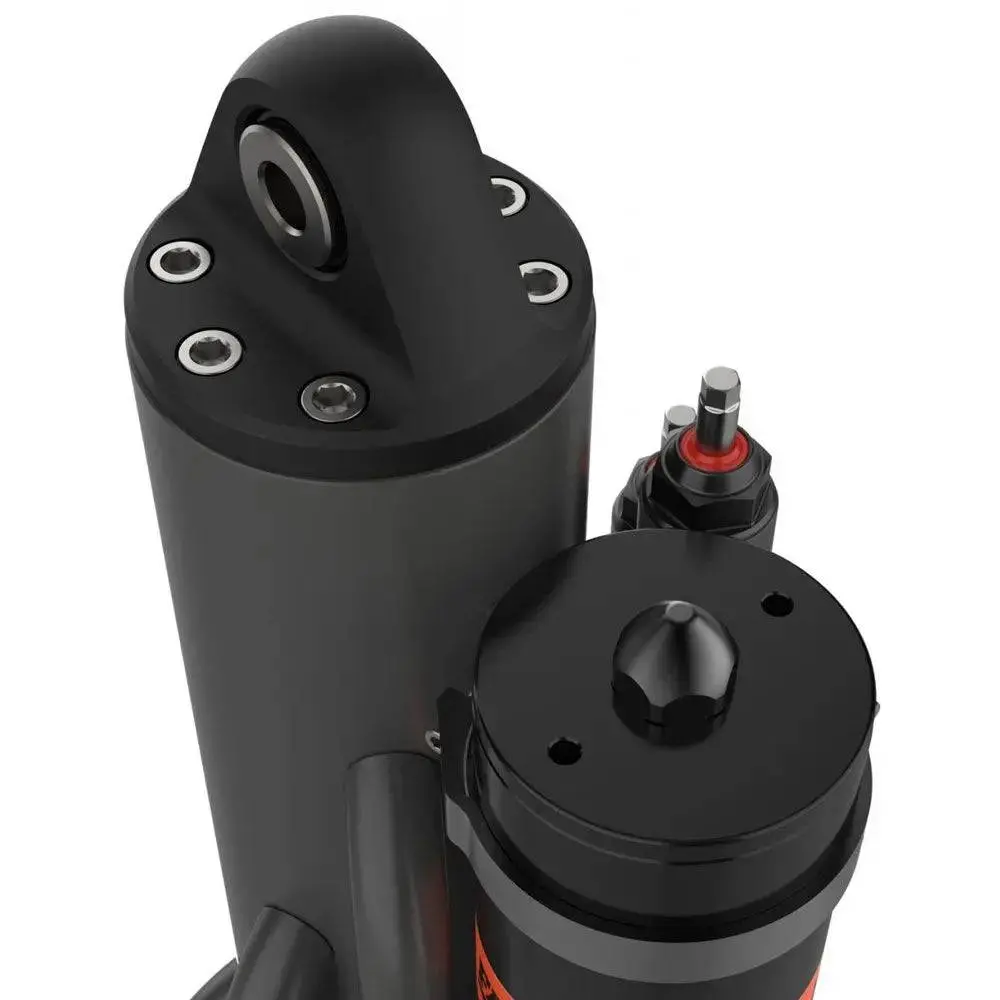

FOX External Bypass shocks have racked up countless wins across the globe over the past 30 years. There’s no questioning whether they’re race proven, but in the words of Bob Fox, “we’re never done.” In that spirit, we’ve revitalized our tried-and-true externally adjustable position-sensitive damping architecture to deliver all-new standards of performance and durability, all while streamlining the production process.
Features:
- Dual coated steel body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat
- All-new Gen 3 clicker adjuster for 1” bypass tubes
- Revised Gen 2 clicker adjuster for 3/4” bypass tubes
- Black anodized billet aluminum reservoir clamp
- Top Mount: Eyelet
- Bottom Mount: Eyelet
- Mounting: 5/8″ x 1-1/2″
Sold Individually, not as a pair or set
Note: Left and Right Shocks are mirrored from each other. See reference image.
| Travel | Number of Tubes | Extended | Collapsed | Reservoir Size |
| 12 | 4 | 34.92 | 22.89 | 3.5 x 11.50 |
| 14 | 4 | 38.92 | 24.89 | 3.5 x 14.00 |
| 16 | 5 | 43.92 | 27.89 | 3.5 x 15.50 |
| 18 | 5 | 47.92 | 29.89 | 3.5 x 17.50 |
