Description
Full Electric Walkie Stacker 3300lbs Cap. Straddle Legs with 118in lifting

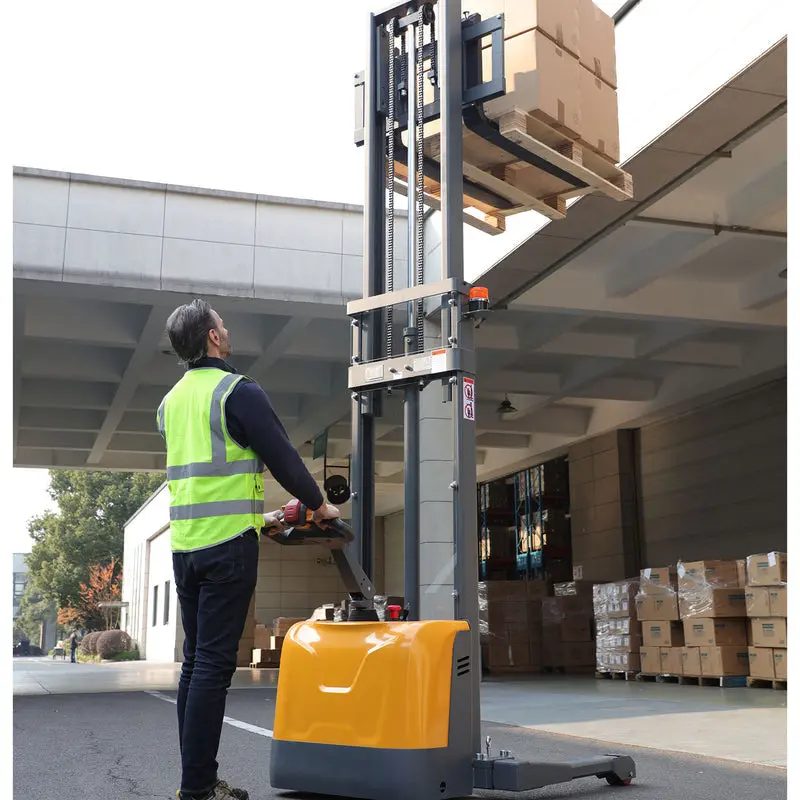

The APOLLOLIFT A-3047 Full Electric Straddle Stacker delivers reliable lifting performance with a 3300 lb capacity and a maximum lifting height of 118″. Engineered with a straddle leg design, this stacker ensures compatibility with a wide range of pallet types, including closed-bottom pallets.
Its compact footprint and 87.8″ aisle width make it an ideal choice for tight warehouse layouts. The unit is powered by a durable 24V/100AH GEL battery, providing smooth lifting and driving performance during daily material handling operations.
The A-3047 is equipped with a built-in 24V/10A charger and includes a clear visual load curve diagram for capacity guidance at different lift heights. Its gel battery and straddle design provide a reliable and operator-friendly solution for medium-height warehouse racking.
Important Notice: For optimal battery longevity and reliable performance, charge monthly when idle.
| Feature | Specification |
|---|---|
| Capacity | 3300 lbs |
| Max. Lifting Height | 118″ |
| Mast Lowered Height | 84.4″ |
| Mast Extended Height | 143.5″ |
| Fork Length | 42″ |
| Fork Overall Width | 7.9″-31.5″ |
| Inside Distance Between Forks | 0.1″-23.6″ |
| Turning Radius | 52.9″ |
| Aisle Width | 87.8″ |
| Support Leg Type | Straddle |
| Battery Type | GEL Battery |
| Battery Spec | 24V/100AH |
| Charger | 24V/10A built-in |
| Driving Speed (Unladen / Laden) | 3.1 mph / 2.8 mph |
| Lifting Speed (Empty / Loaded) | 5.9 in/s / 3.5 in/s |
| Lowering Speed (Empty / Loaded) | 4.3 in/s / 5.9 in/s |
| Service Weight | 1220 lbs |
| Gross Weight | 1280 lbs |
| Package Size | 44″ x 34″ x 88″ |
