Power LiftKar HD Truck with Adjustable Handle and Brake System

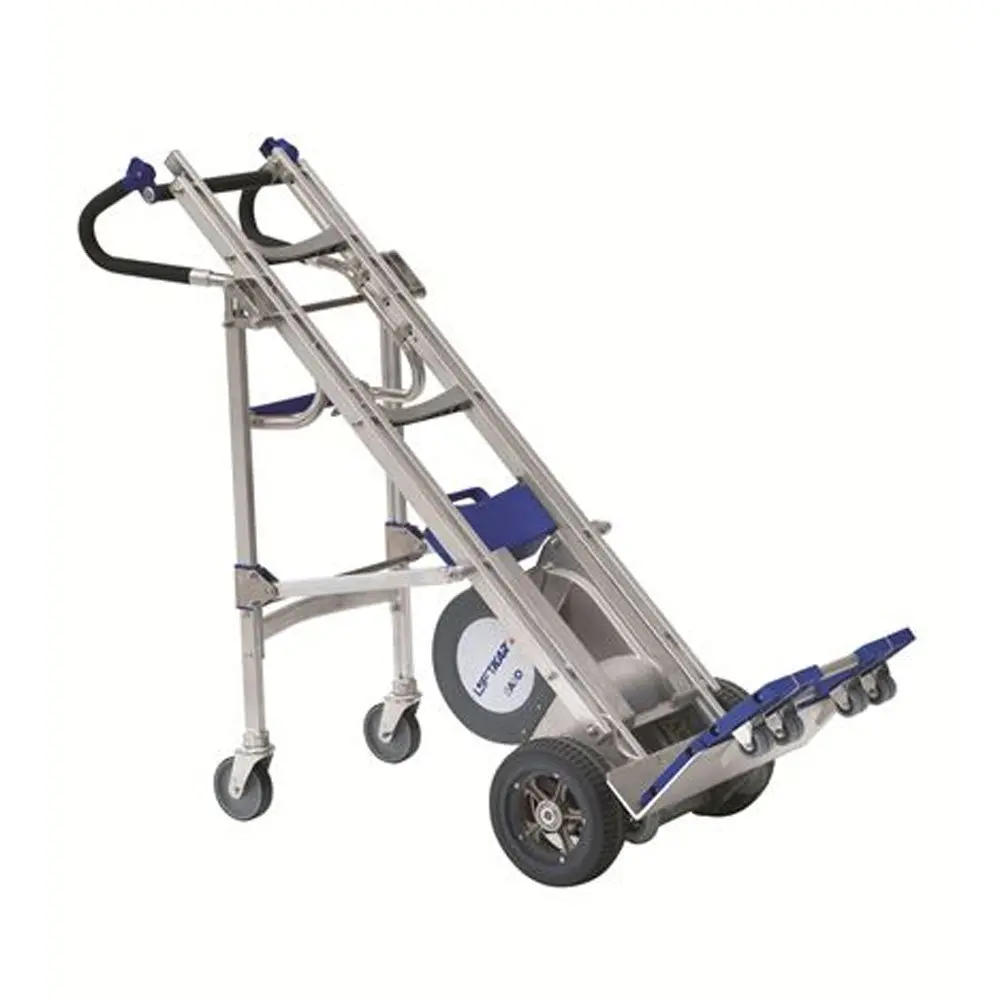

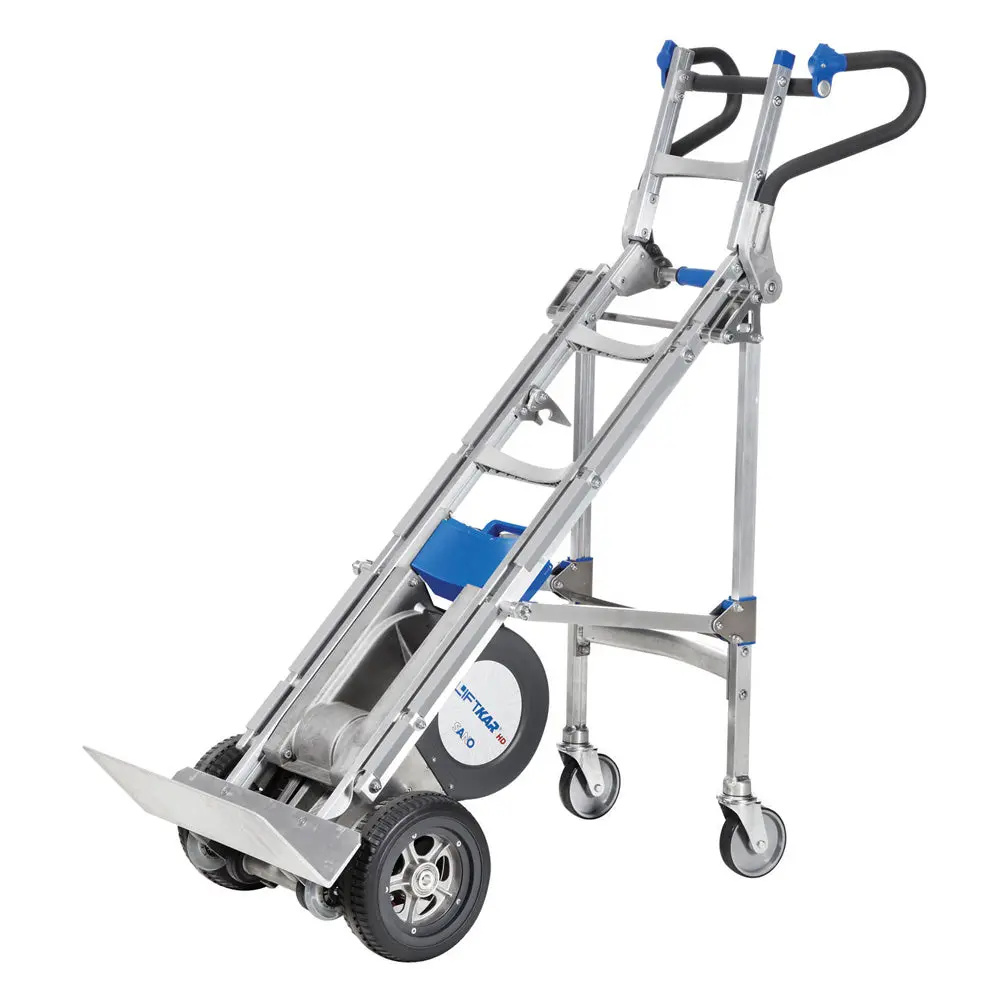

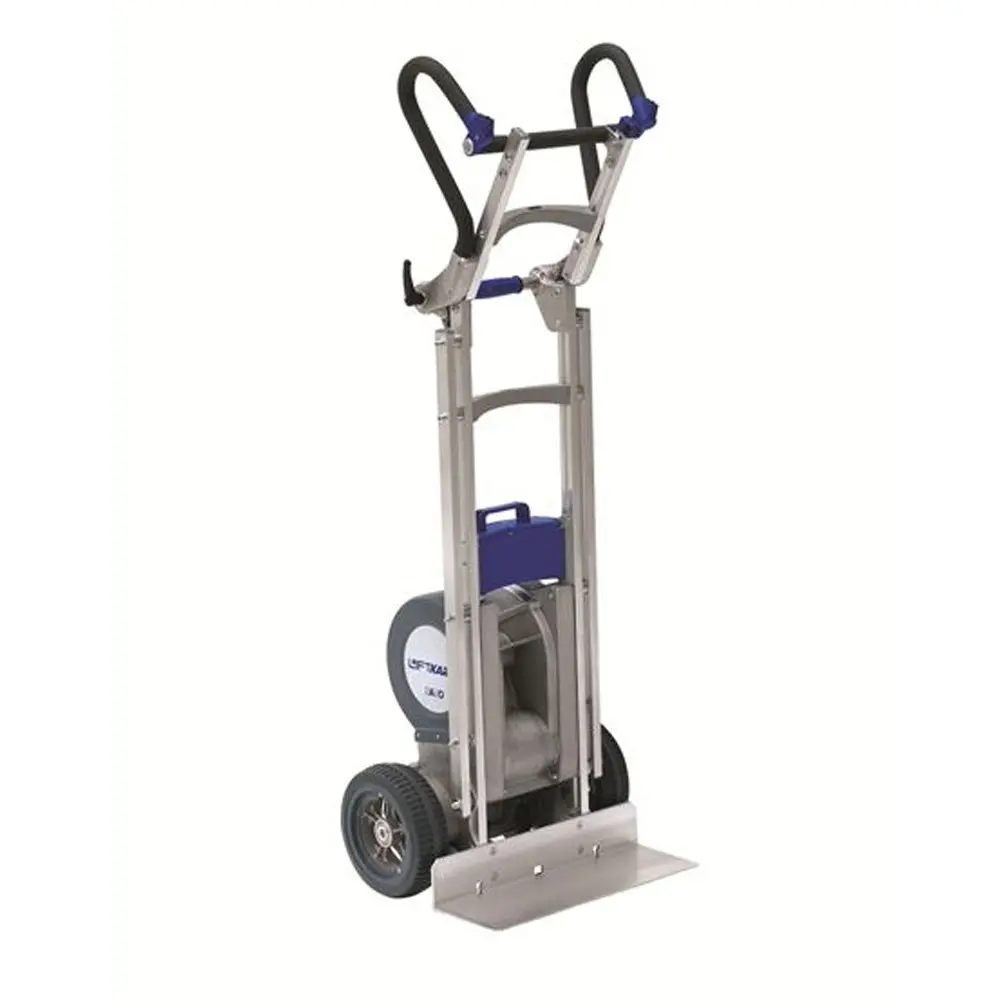

The Power LiftKar HD Truck, available in multiple models (Uni, Fold, and Extended Fold), is designed for versatile and efficient material handling. The Uni model features a straight frame that can accept a dolly option for 4-wheel support. The Fold model includes an adjustable upper handle angle, ideal for handling heavy, low-position loads like copiers, safes, and motors. This model allows the user to stand upright even when using the truck at a low angle. The Extended Fold model offers the same benefits as the Fold model, with an additional 7 inches in height and a fold-out wheel carriage.

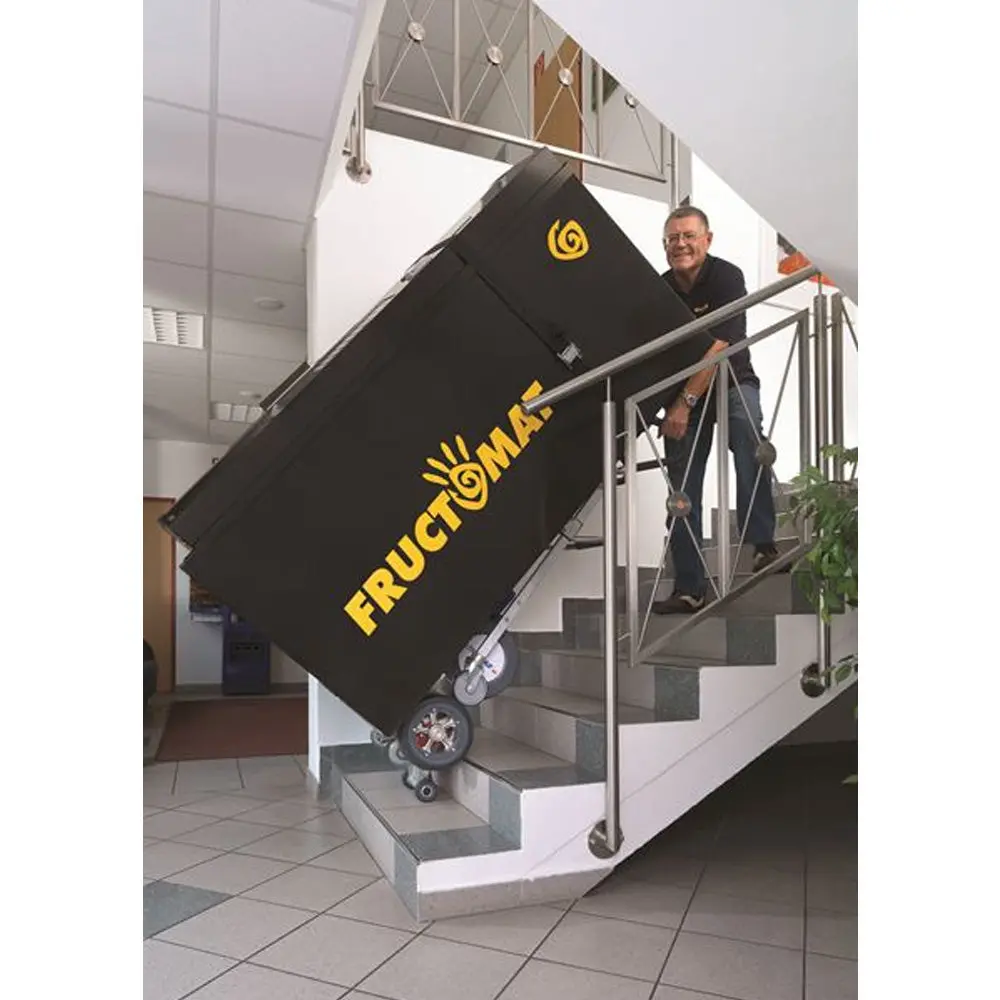

This truck is equipped with an innovative edge-of-step braking system that automatically engages when the wheels reach the edge of a step, preventing accidental rolling and ensuring load control. The brake can be deactivated for use on level ground, preventing unwanted braking on uneven surfaces. It operates in two modes: single step, where the ascend or descend button must be pressed after each step for maximum control, and continuous climb.
The Power LiftKar HD Truck includes a 24V quick-change battery pack that is sealed and maintenance-free. The package comes with a battery, charger, and a 137″ x 2″ cargo belt. The noseplate measures 21″ W x 7.25″ D, with additional sizes available upon request.
This truck offers two climbing speeds: 6 steps per minute and 10 steps per minute. On a fully charged battery, it can handle 440 lbs of cargo for 220 steps, 550 lbs for 190 steps, and 725 lbs for 120 steps. It accommodates a maximum stair height of 8.25″. The Power LiftKar HD Truck comes with a 1-year warranty on parts against defects in materials and workmanship and a 6-month warranty on the battery.
Specifications
| Specification | Part Number: 274100 | Part Number: 274101 | Part Number: 274238 |
|---|---|---|---|
| Model | Universal | Fold | Extended Height Fold |
| Capacity | 725 lb | 725 lb | 725 lb |
| Battery | Single | Single | Single |
| Belt | 2 piece with clasp – 137″ x 2″ | 2 piece with clasp – 137″ x 2″ | 2 piece with clasp – 137″ x 2″ |
| Width Noseplate | 21 “ | 21 “ | 21 “ |
| Depth Noseplate | 7.25 “ | 7.25 “ | 7.25 “ |
| Overall Width | 22 “ | 22 “ | 22 “ |
| Overall Height | 63″ straight frame | 47″ folded | 53.5″ folded/70″ unfolded |
| Overall Depth | 19 “ | 19 “ | 21.3 “ |
| Weight | 96 lb | 97 lb | 105 lb |
