Description

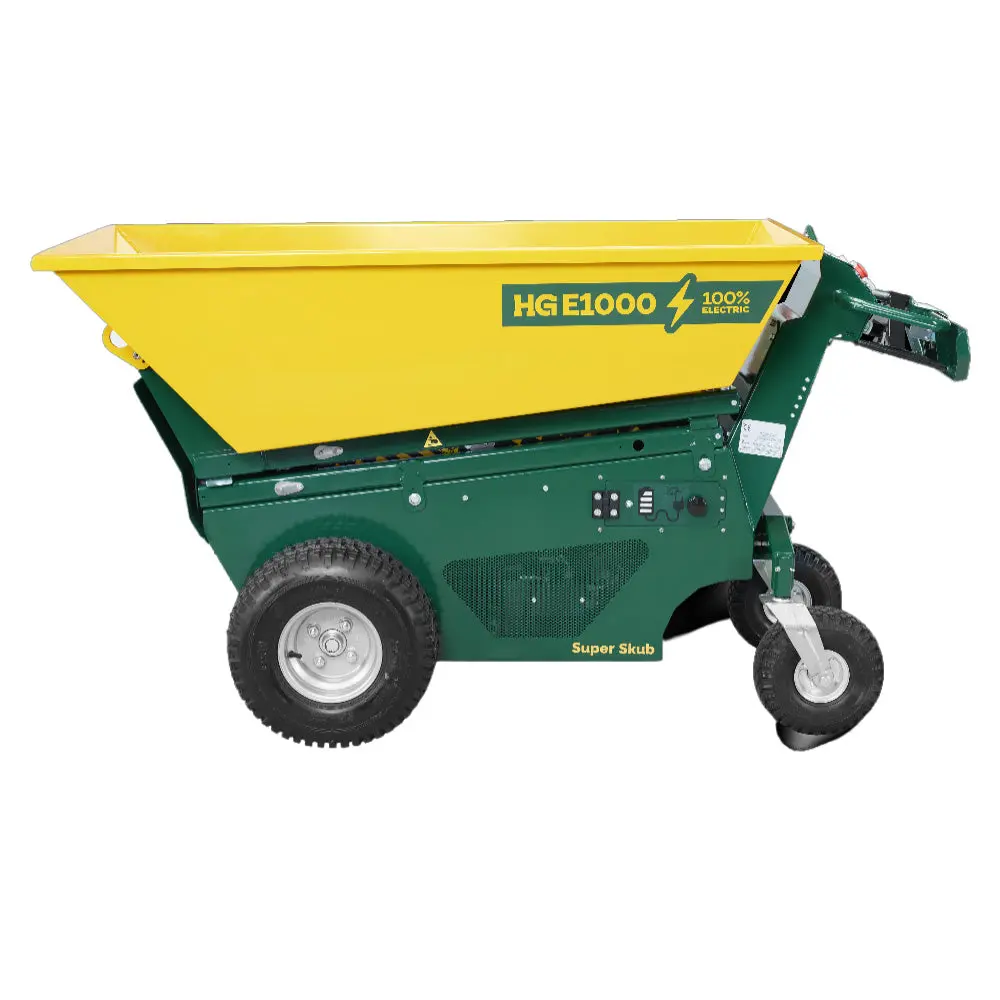

HG Electric 1t Mini Dumper (Hi Tip)
The HG E1000 High Tip Mini Dumper is a state-of-the-art electric dumper that combines robust performance with enhanced unloading capabilities. Engineered to unload directly over the rim into containers and trailers, this dumper is an excellent choice for urban construction and demolition projects where space is limited.
User-friendly and efficient, the E1000 High Tip offers the performance comparable to traditional combustion engine models but with the benefits of electric operation, including a very low noise level and minimal maintenance requirements. The high-tip function allows for easy unloading up to 125 cm, which is ideal for various worksite applications.
Equipped with lithium battery technology, this mini dumper provides a long operational runtime of up to 12 hours on a single charge, with fast recharging capabilities from 20% to 80% in just 90 minutes. The E1000 High Tip ensures safe operations while handling loads up to 1000 kg (2204 lbs), adhering to the highest safety standards.
Key Features:
- Lithium battery with 12-hour runtime
- Fast charging in just 90 minutes
- High-tip function for easy unloading up to 49 inches (125 cm)
- Load capacity of 1000 kg (2204 lbs)
- Low noise and zero emissions for indoor use
Specifications:
| Feature | Specification |
|---|---|
| Width | 850 mm (33.5 inches) |
| Length | 2050 mm (80.7 inches) |
| Height | 980 mm (38.6 inches) |
| Net Weight | 376 kg (829 lbs) |
| Content in Litres | 400 L (105.7 gallons) |
| Contents in Kilograms | 1000 kg (2204 lbs) |
| Chute Height | 60 cm (23.6 inches) |
| Driving Speed (Forward) | 0-6 km/t (0-3.7 mph) |
| Driving Speed (Reverse) | 0-3 km/t (0-1.9 mph) |
| Battery | Lithium, 120 Ah |
| Voltage | 24V |
| Driving Time | 12 hours |
| Charger | Plug, 230V plug standard AU |
| 0-100% Charging Time | 3.5 hours |
| 20-80% Charging Time | 90 minutes |
| Integrated Charger | 22 kW |
| Motor | Electric, Asynchronous three-phase electric motor 24V , 96V |
| Performance | 2000 W |
| Moment | 14 Nm |
| Leave Function | Hydraulic tip with three-way manual valve. Tip cylinder, double acting |
| Hydraulic Tank | 2.5 liters (0.66 gallons) |
| Driving Wheels | TR360 18 x 7 – 8 |
| Fork Wheels | 4.00-4 |
| Sound Pressure | Lpa, eq = 71 dB(A) max Lpa, eq = 70 dB(A) simulated operation |
| Vibrations | Weighted arm/hand level: 5 m/s² max Weighted arm/hand level: 3 m/s² simulated operation |
| Capacity | 1000 kg (2204 lbs) |
| Battery Type | Lithium |
| Run Time | 12 hours |
| Charge Time | 90 minutes (20 to 80%) |
| Unloading Height | 49 inches (125 cm) |
