Description

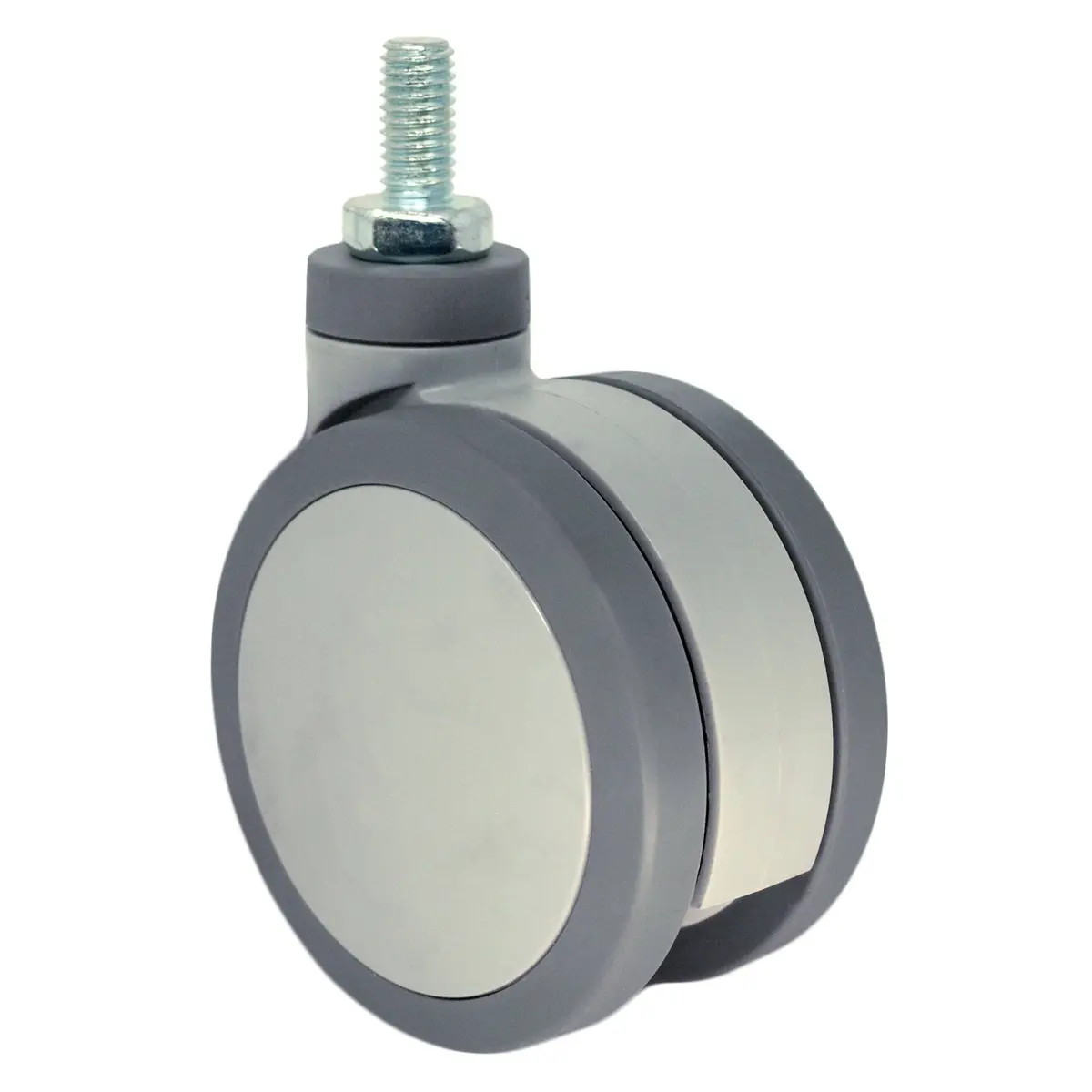

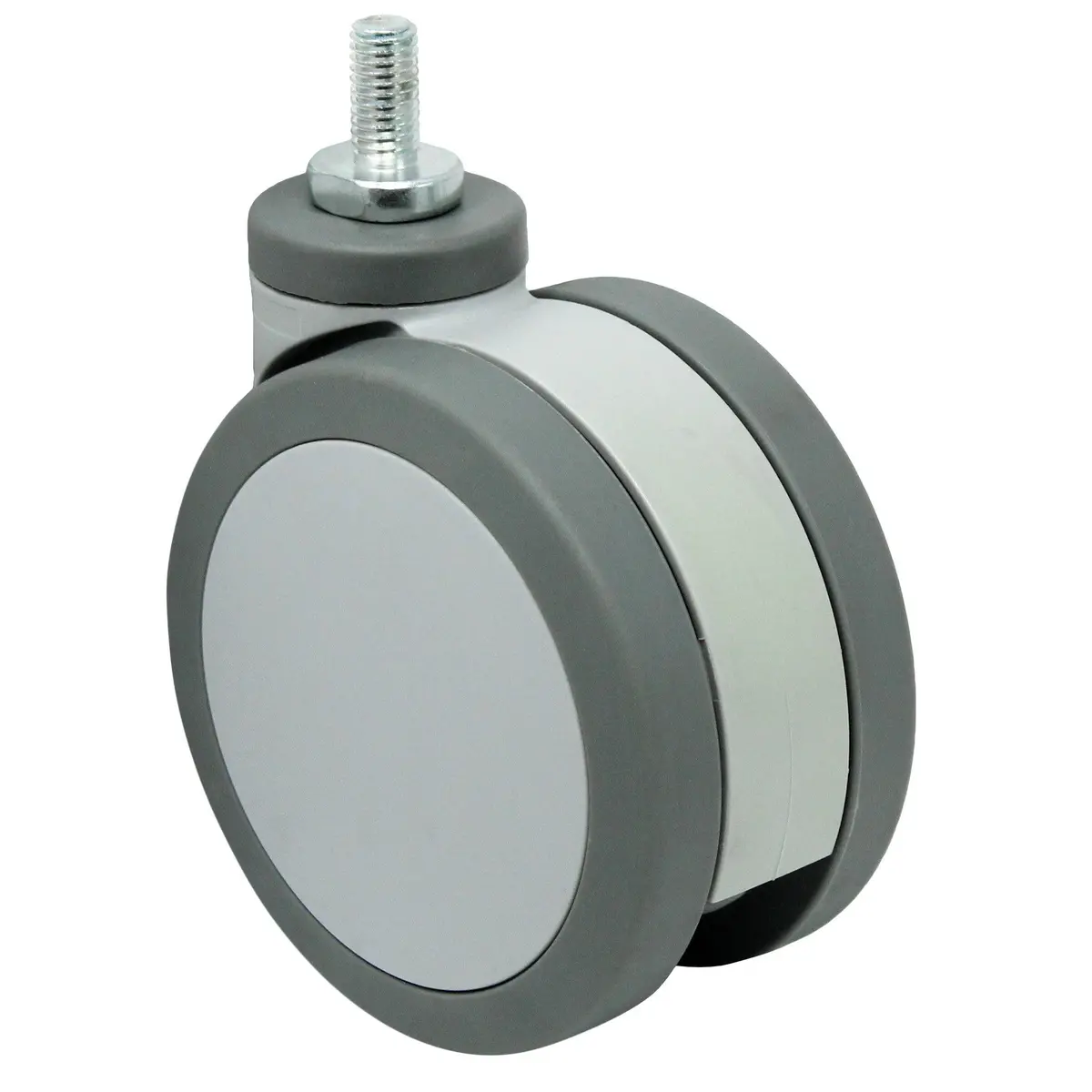

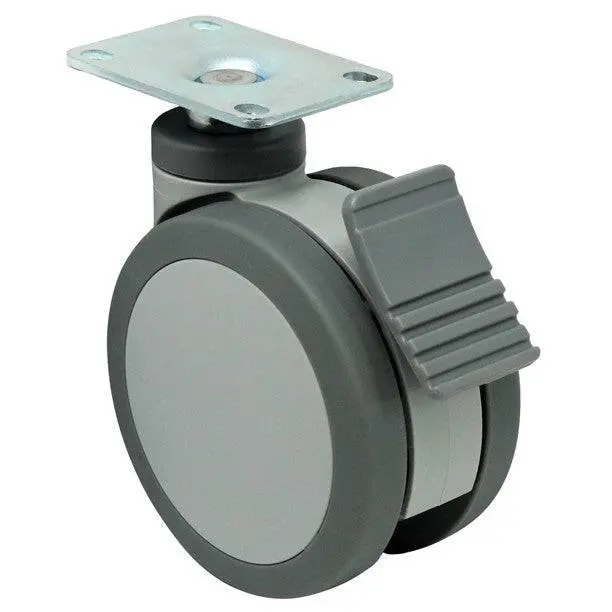

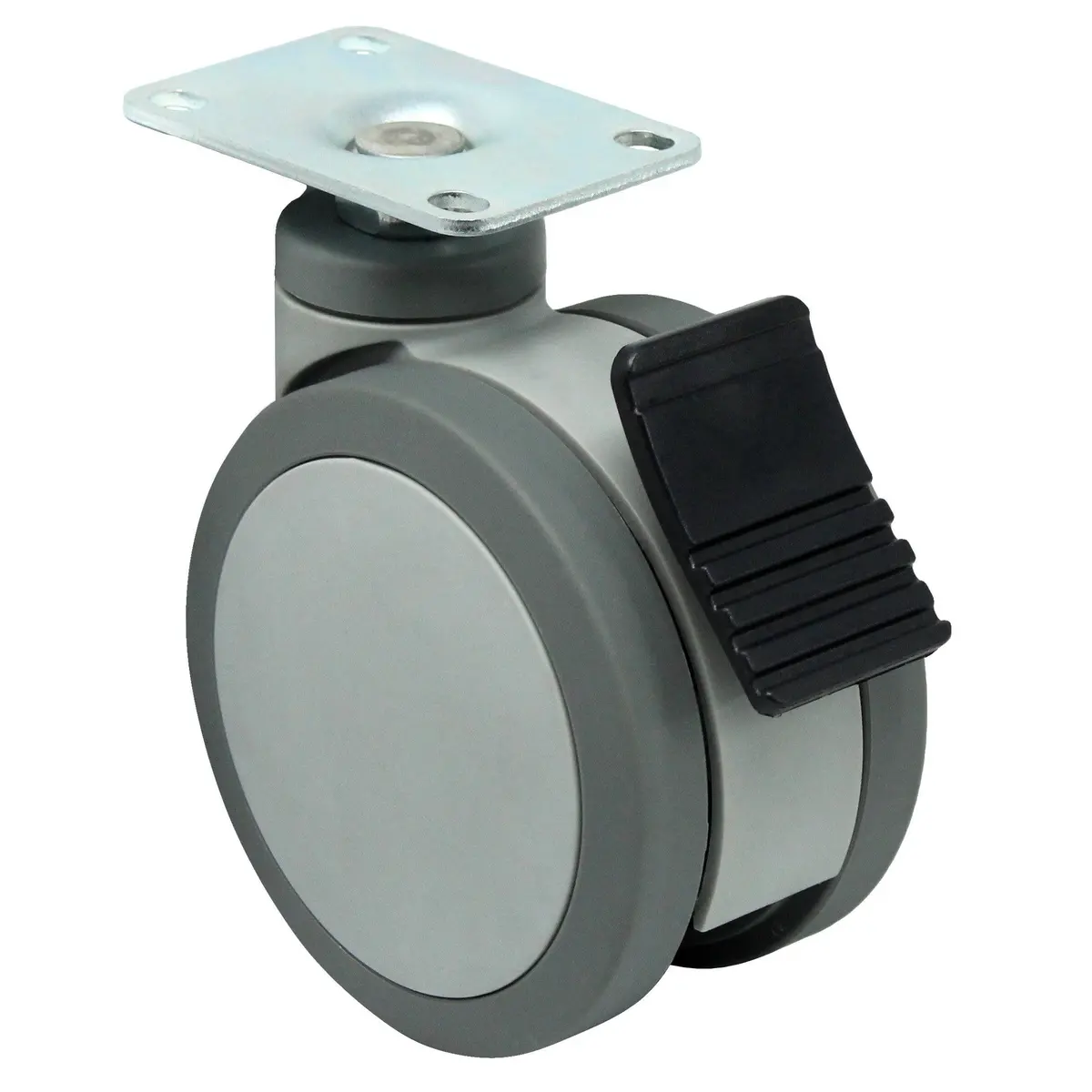

Polima Wheel Swivel Caster
Polima casters are double-wheel casters with a gray polyurethane elastomer tread. The dual-wheel design makes for easy swiveling. The core is polyolefin and the tread is Non-marking, corrosion, and chemical resistant. Sealed precision bearings in the raceway and wheel allow easy rolling and protect against hair, water, and debris contamination
Tread: Polyurethane elastomer
Core: Solid Polyolefin Core
Bearing: Ball Bearing
| Model Number | PL03PUBSWP5 | PL04PUBSW67 | PL05PUBDLB6 | PL05PUBTLB6 | PL05PUBSW67 |
| Load Capacity | 165 lbs | 220 Lbs. | 240 Lbs. | 240 Lbs. | 240 Lbs. |
| Wheel Diameter | 3″ | 4″ | 5″ | 5″ | 5″ |
| Tread Width | 2-5/16″ | 2-39/64″ | 3″ | 3″ | 3″ |
| Tread Type | Polyurethane elastomer | Polyurethane elastomer | Polyurethane elastomer | Polyurethane elastomer | Polyurethane elastomer |
| Core Type | Solid Polyolefin Core | Solid Polyolefin Core | Solid Polyolefin Core | Solid Polyolefin Core | Solid Polyolefin Core |
| Bearing Type | Ball Bearing | Ball Bearing | Ball Bearing | Ball Bearing | Ball Bearing |
| Wheel Color | Gray on Gray | Gray on Gray | Gray on Gray | Gray on Gray | Gray on Gray |
| Overall Height | 4-1/8″ | 5-3/8″ | 6-3/8″ | 6-3/8″ | 6-3/8″ |
| Swivel Radius | 2-5/16″ | 3-1/8″ | 4″ | 4″ | 4″ |
| Plate/Stem Size | 2-5/8″ x 3″ | 1/2″ NC13 x 1″ | 2- 1/2″ x 3-5/8″ | 2- 1/2″ x 3-5/8″ | 1/2″ NC13 x 1″ |
| Bolt Hole Pattern | 1-5/8″ x 1-31/32″ tp 2″ x 2-13/32″ | N/A | 1-3/4″ x 2-13/16″ to 3-1/16″ | 1-3/4″ x 2-13/16″ to 3-1/16″ | N/A |
| Bolt Hole Diameter | 5/16″ | N/A | 5/16″ | 5/16″ | N/A |
| Durometer | 75 Shore A (+/-5) | 75 Shore A (+/-5) | 75 Shore A (+/-5) | 75 Shore A (+/-5) | 75 Shore A (+/-5) |
| Temp. Range | -40° F to 180° F | -40° F to 180° F | -40° F to 180° F | -40° F to 180° F | -40° F to 180° F |
