Introduction
ACE RC Brushless ESC
Ready to enjoy brushless power to the fullest? ACE RC BLC series brushless ESC is an affordable, high performance and efficient brushless ESC offering most 1/10 scale and 1/18 scale drivers the most convenient way to upgrade their car to brushless. All series ESC are available in either stand-alone or in combos wit extreme power brushless, sensorless motor for immediate, ” plug and play ” use.

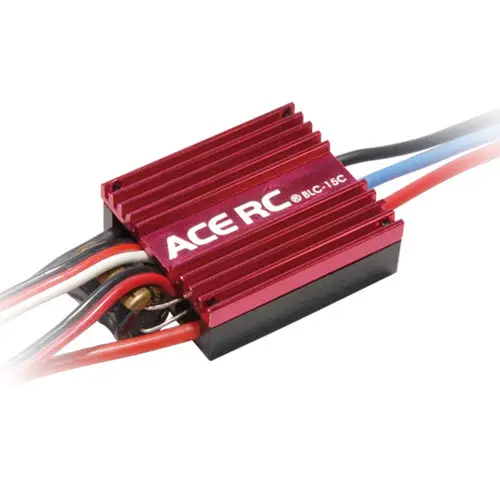

| Product Name | BLC-15C ESC | BLC-30C ESC | BLC-40C ESC | BLC-75C ESC |
| Item No. | 8058 | 8059 | 8060 | 8061 |
| NiCD/NiMH cells | 7.2V | 7.2V | 7.2V | 7.2V |
| Li Polymer cells | 7.4-11.1V | 7.4-11.1V | 7.4-11.1V | 7.4-11.1V |
| Current(Continuous) | 15A | 30A | 40A | 75A |
| Max Output | 160W/40sec | 210W/40sec | 360W/40sec | 540W/60sec |
| Size LxWxH(mm) | 28x25x10 | 50×28.6×29.5 | 46×28.8×31.5 | 37×28.8×36.5 |
| Weight(g/oz) | 15/0.53 | 51.5/1.84 | 66/2.33 | 80.3/2.83 |
Features
1. The perfect current capacity for long time flying.
2. Provides extremely high torque and high temperature rating.
3. The most mechanical design for cooling.
4. Light weight with the best performance.
5. Dual ball bearings shaft support.
