Description
PLEASE VERIFY THE SIZE OF THESE CYLINDERS WILL WORK ON YOUR TRACTOR BEFORE ORDERING.

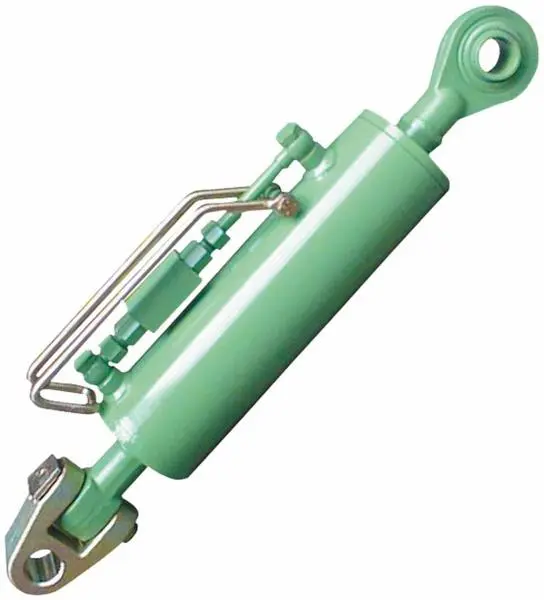

A John Deere 6410 top and tilt kit would take one hydraulic top link (part number 11224 OR 0J904020T) and one hydraulic side link (11196). Both cylinders come with a double-piloted check valve. Cylinders must be purchased individually.
TOP LINK SPECS:
| 11224 | 0J904020T | |
| Category | 3 | 3 |
| Pin hole | 1 1/4″ | 1 1/4″ |
| Ball width | 2″ | 2″ |
| Clevis width | 2″ | 2″ |
| Min length | 22 9/16″ | 23 5/8″ |
| Max length | 29 3/8″ | 31 1/2″ |
| Stroke | 6 13/16″ | 7 7/8″ |
| Cylinder bore | 3 1/8″ | 3 9/16″ |
| Rod diameter | 1 9/16″ | 1 9/16″ |
(Min and max lengths are taken from pin center to pin center)
SIDE LINK SPECS:
Pin hole (fork end): 1″
Pin hole (other end): 1″
Ball width: 1 3/8″
Fork width (internal): 1 5/8″
Min length: 26 3/8″
Max length: 33 7/8″
(Min and max lengths are taken from pin center to pin center)
Stroke: 7 1/2″
Cylinder bore: 3 1/8″
Rod diameter: 1 9/16″
Available hydraulic hose kits:
– kit with 1/4″ valve type couplers – 36″ long – kit with 1/2″ valve type couplers – 36″ long
– kit with 1/2″ ball type couplers – 36″ long – kit with 1/2″ valve type couplers – 24″ long
– kit with 1/2″ ball type couplers – 24″ long
