Valley Craft 230V Electric Box Dumpers – Efficient Material Handling System

Description

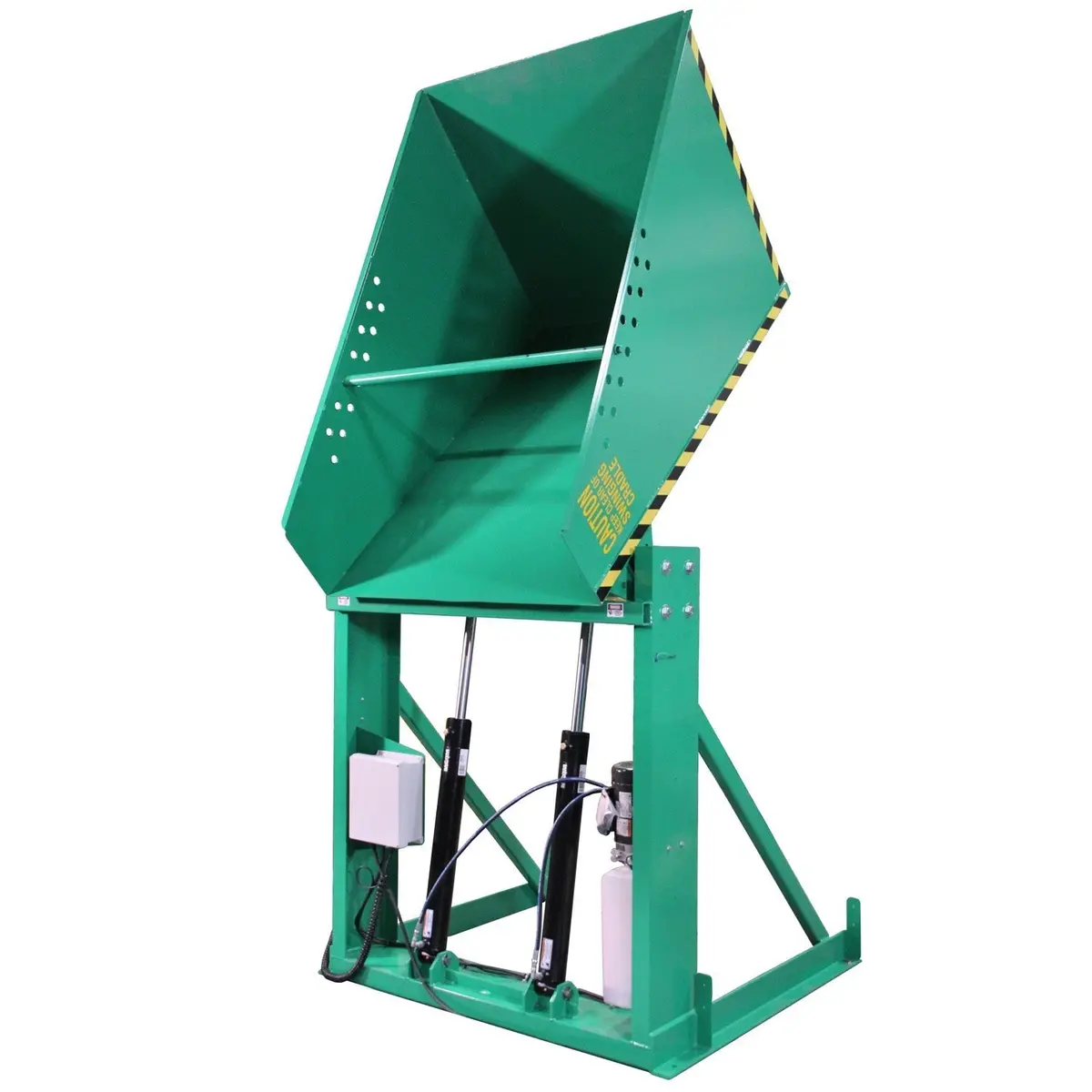

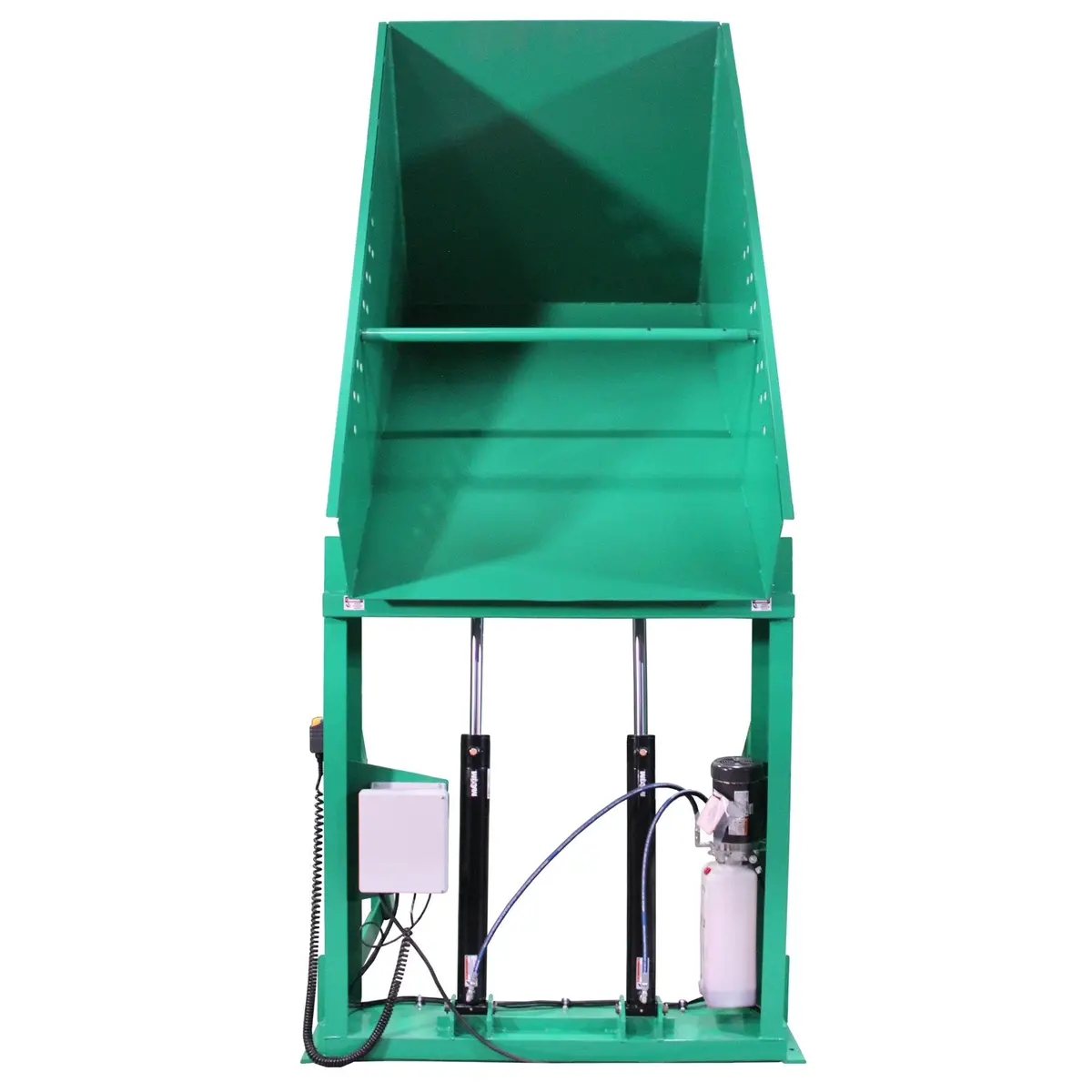

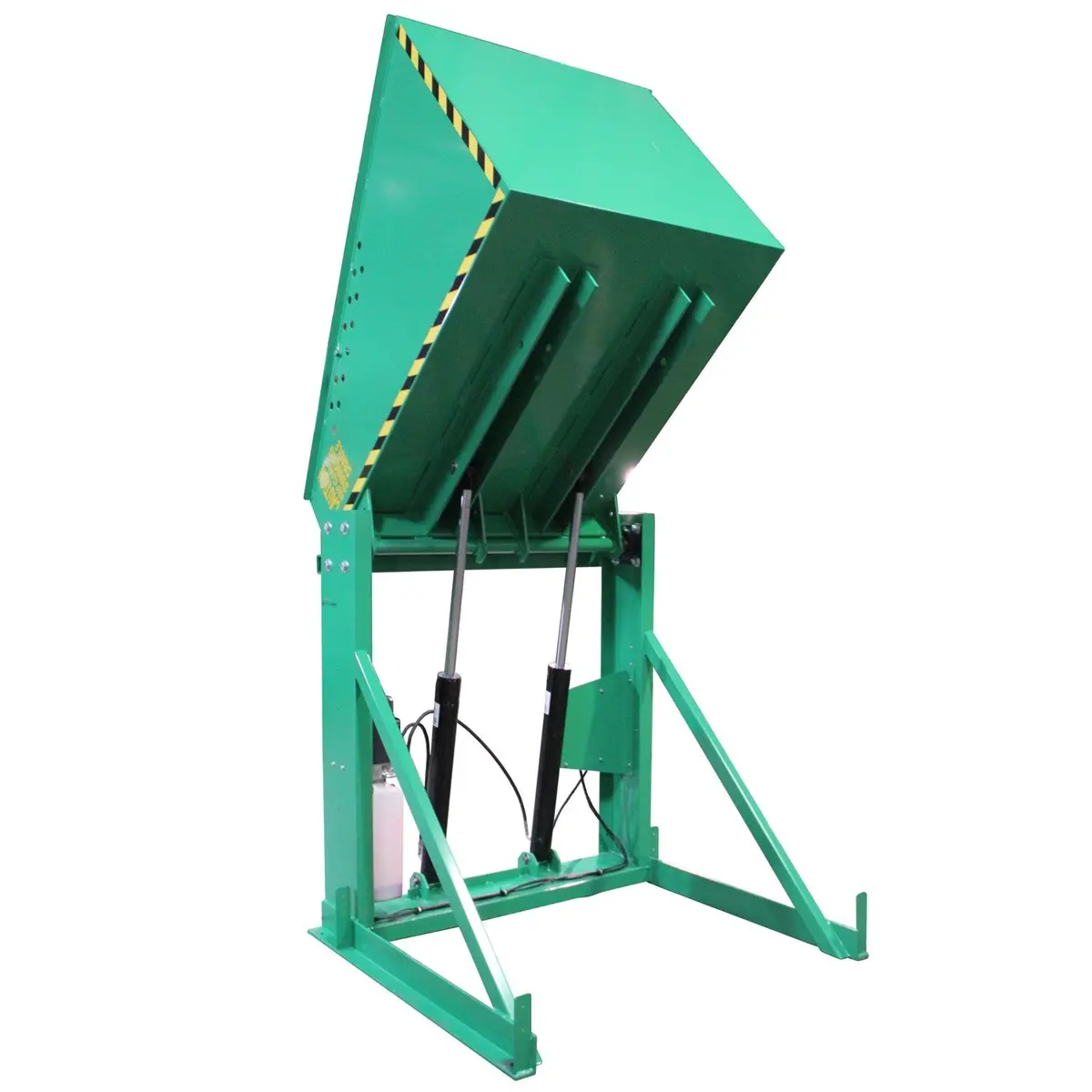

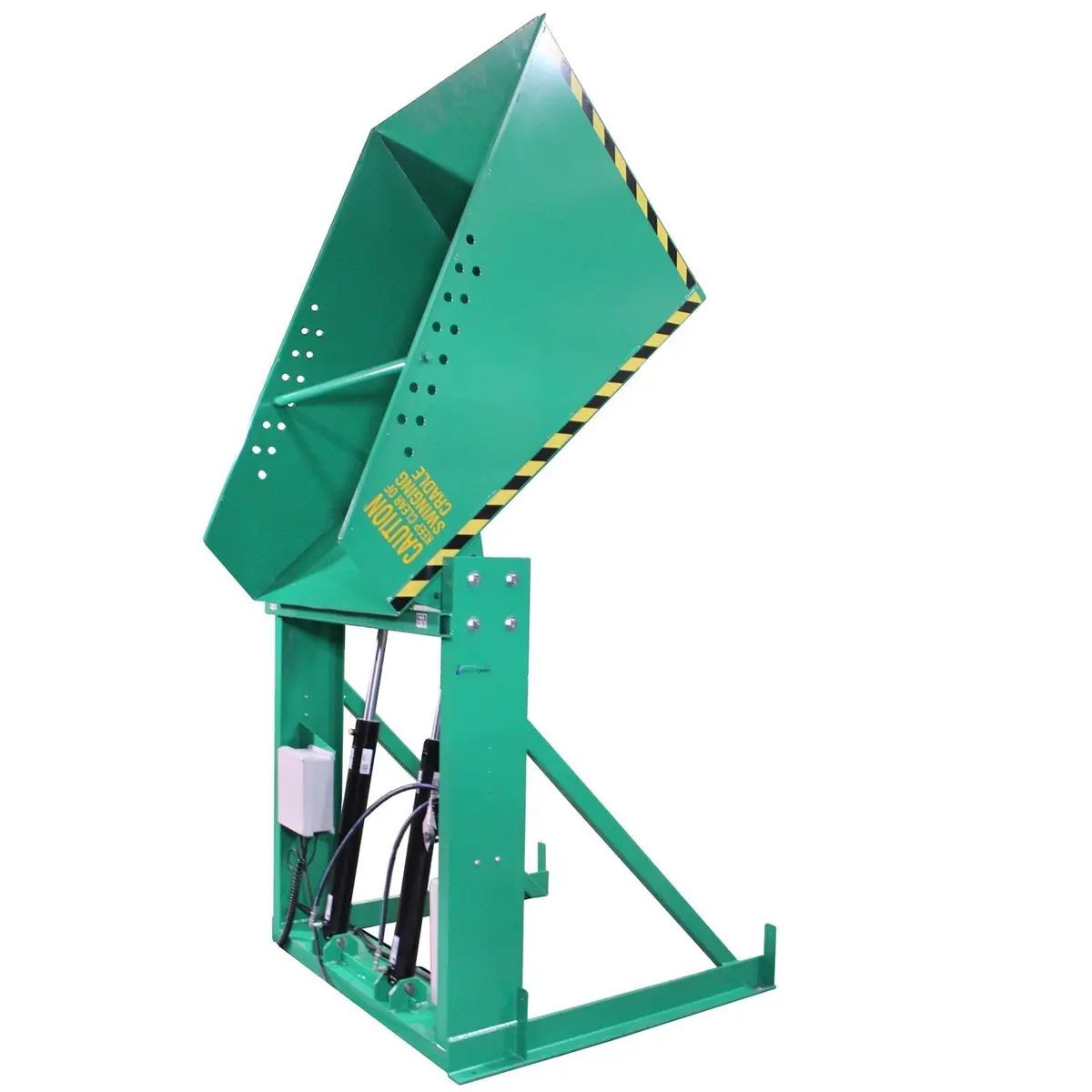

Valley Craft’s Box Dumper 230 Volt

Valley Craft’s Box Dumper is the perfect solution to effortlessly dump material with improved efficiency while reducing employee fatigue or injury. This premium box bumper is designed to be compatible with a variety of gaylords, crates, tubs, cartons and other containers to fit your needs.

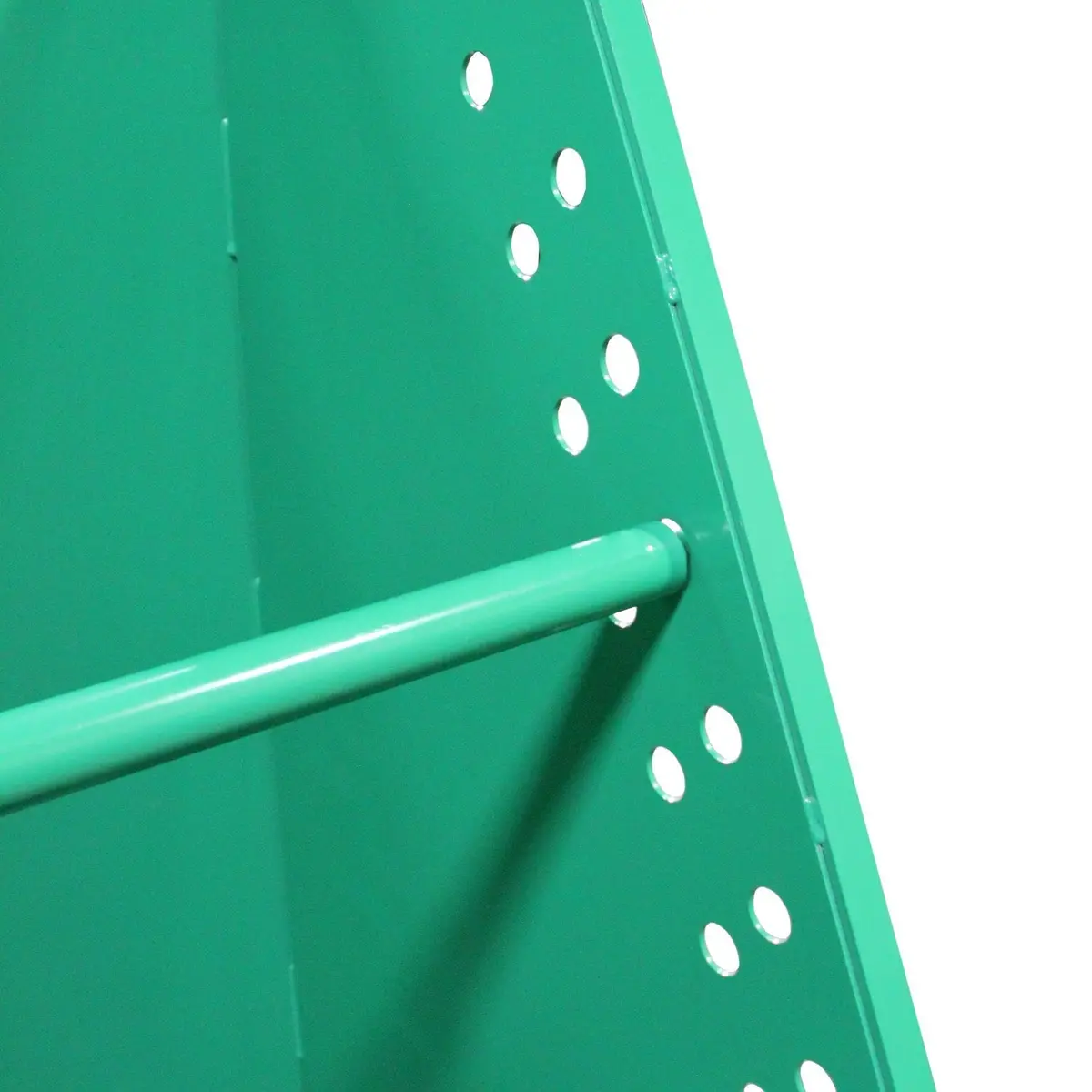

The chute comes in a variety of sizes to accommodate containers up to 48″W x 51″D, depending on model. A spring-loaded hold down bar is included to help keep containers secure, ranging from 30″ to 56″ in height (adjustable on 2″ increments). Dump height ranges from 36″ to 72″ with a large load capacity from 2,000 lbs to 6,000 lbs, again depending on the model. Side walls and body are constructed of heavy duty 7 gauge steel to withstand the most rigorous use.

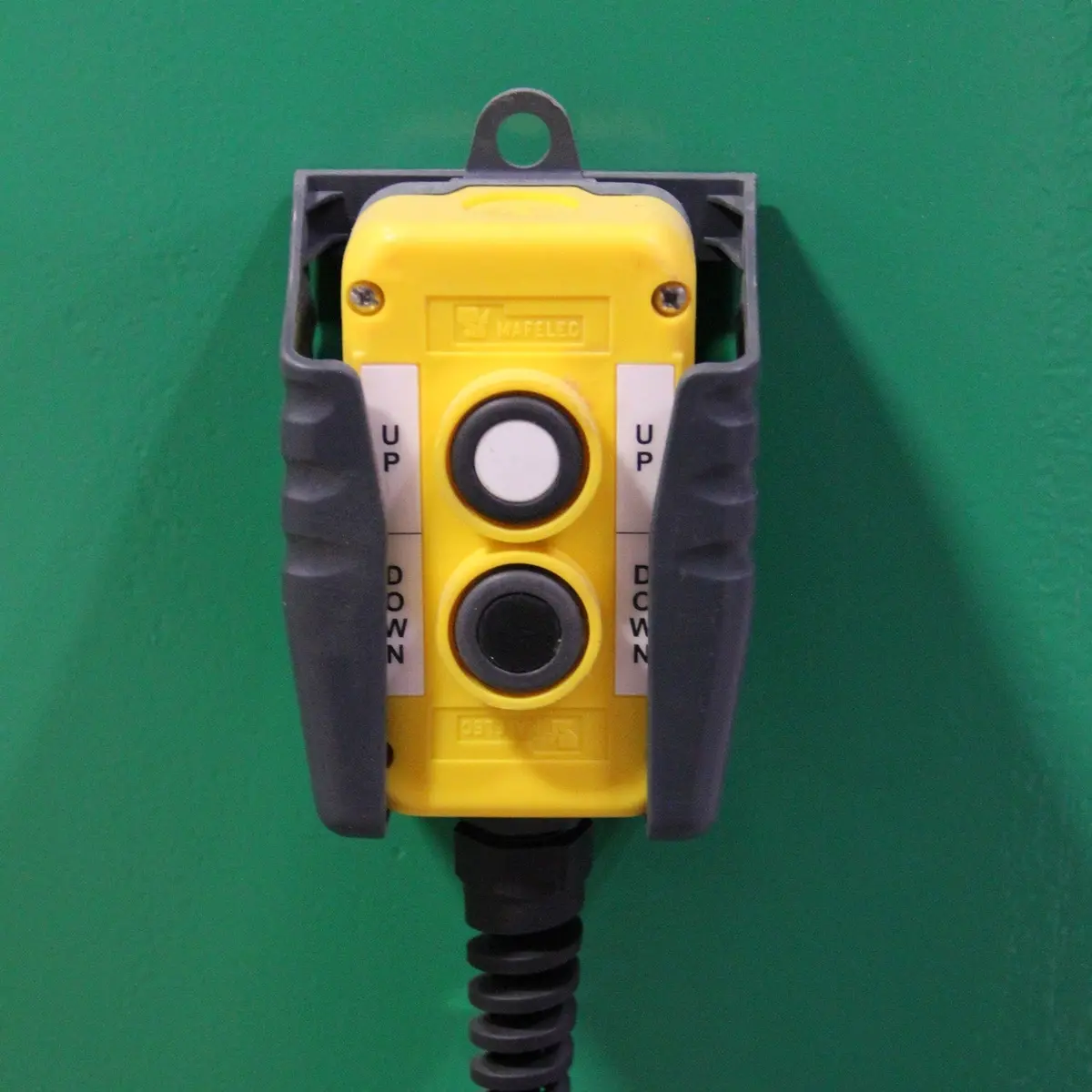

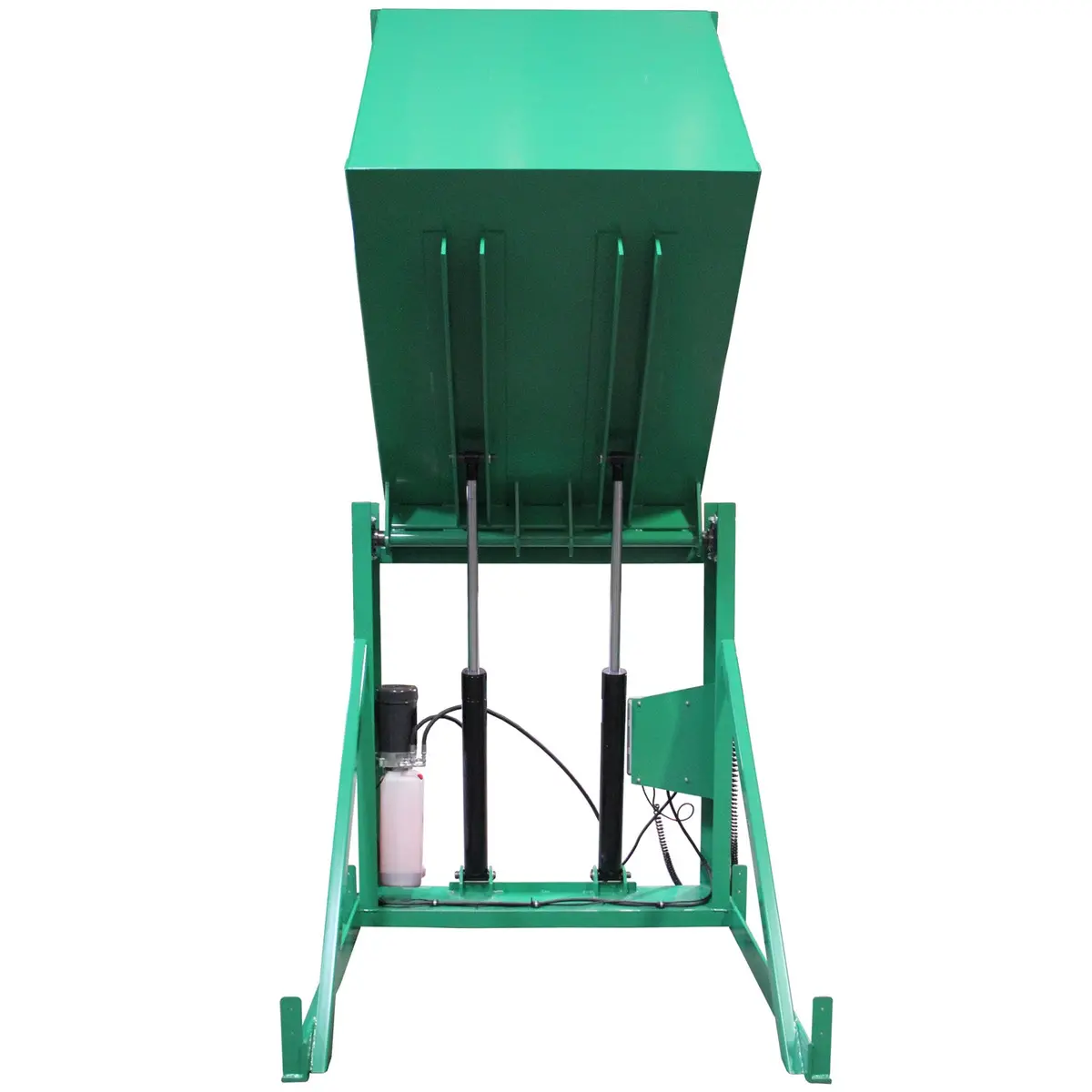

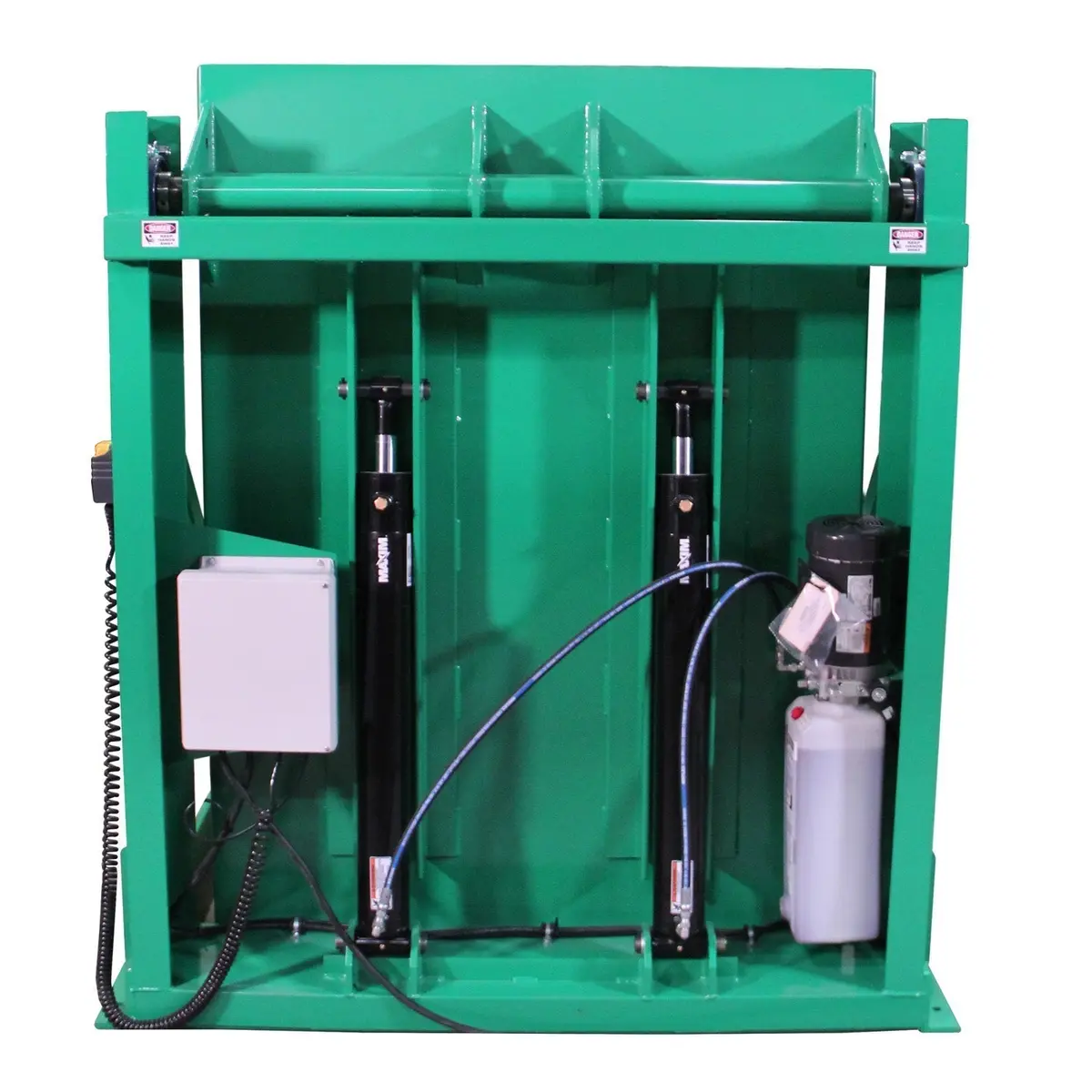

Create added safety and stability by bolting your unit directly to the floor using the predrilled mounting holes. Simply operate the unit using the convenient hand-held corded (20′ pigtailed) pendant with magnetic back (pendant holder included and can be easily installed on either side of unit). Pendant completes the powered dump cycle in less than 30 seconds and has a gravity return. Added safety decals along chute create additional awareness and protection for operators and bystanders. Stop and start your unit at any point during the entire dump process. The premium single flow hydraulic control valve system ensures a smooth operation every time while balancing the load and strain on the cylinders, adding longevity to your unit. Loading containers is simple to do manually or using a standard pallet jack. Unit operates using a 3 phase/60 hz/230V, 2HP motor. Standard rating: 12 DPH. Optional side guards are available (sold separately).

Valley Craft’s Box Dumpers reduce the need for manual bending and loading, and you can be confident they are built to last with a premium powder coat paint finish in green. All products are shipped fully assembled, ready-to-use, and are made in the U.S.A.

• Effortlessly dump material with improved efficiency.
• Ideal for use with a variety of gaylords, totes, crates, tubs, cartons, and other containers.
• Variety of sizes and configurations to fit your needs.
• Reduce need for manual lifting, bending, and loading.
• Operate using convenient handheld pendant with magnetic back, controlling the 3 phase 60 hertz, 230 volt motor (2HP).
• Powered dump cycle, with gravity return.
• Unit bolts directly to the floor to ensure safety and stability throughout operation.

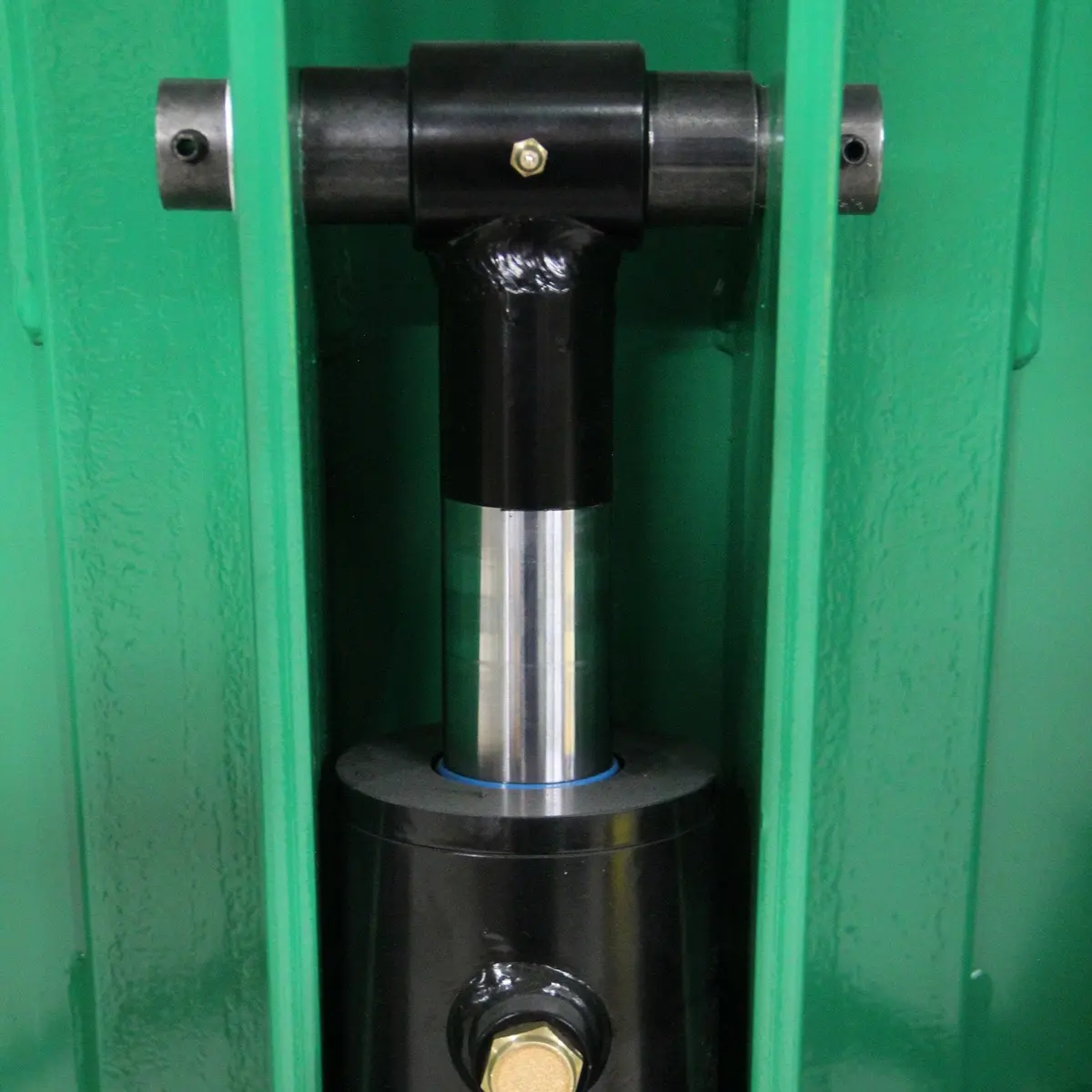

• Smooth operation utilizing dual flow hydraulic control valve system.
• Safely stop and start at any point during dump cycle.

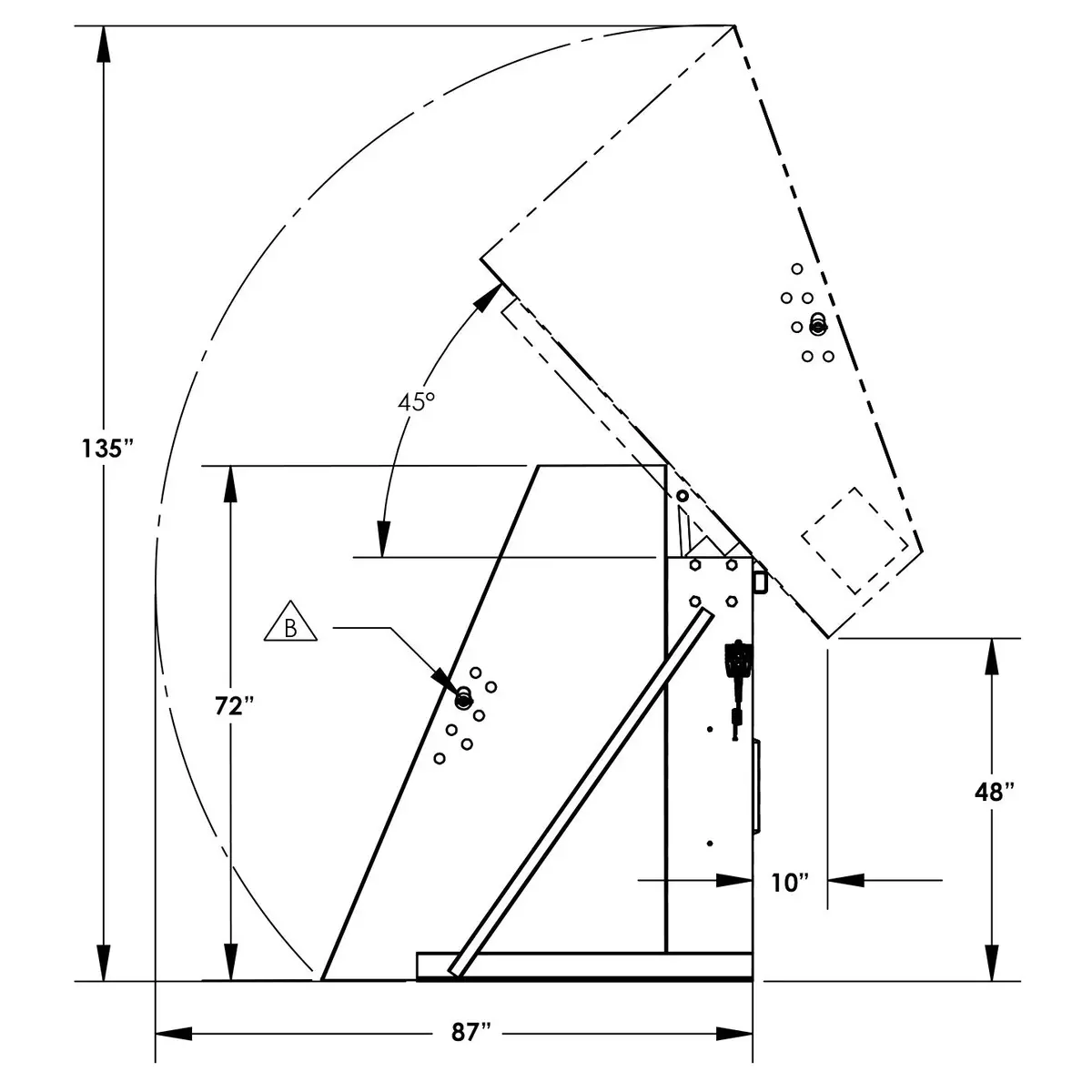

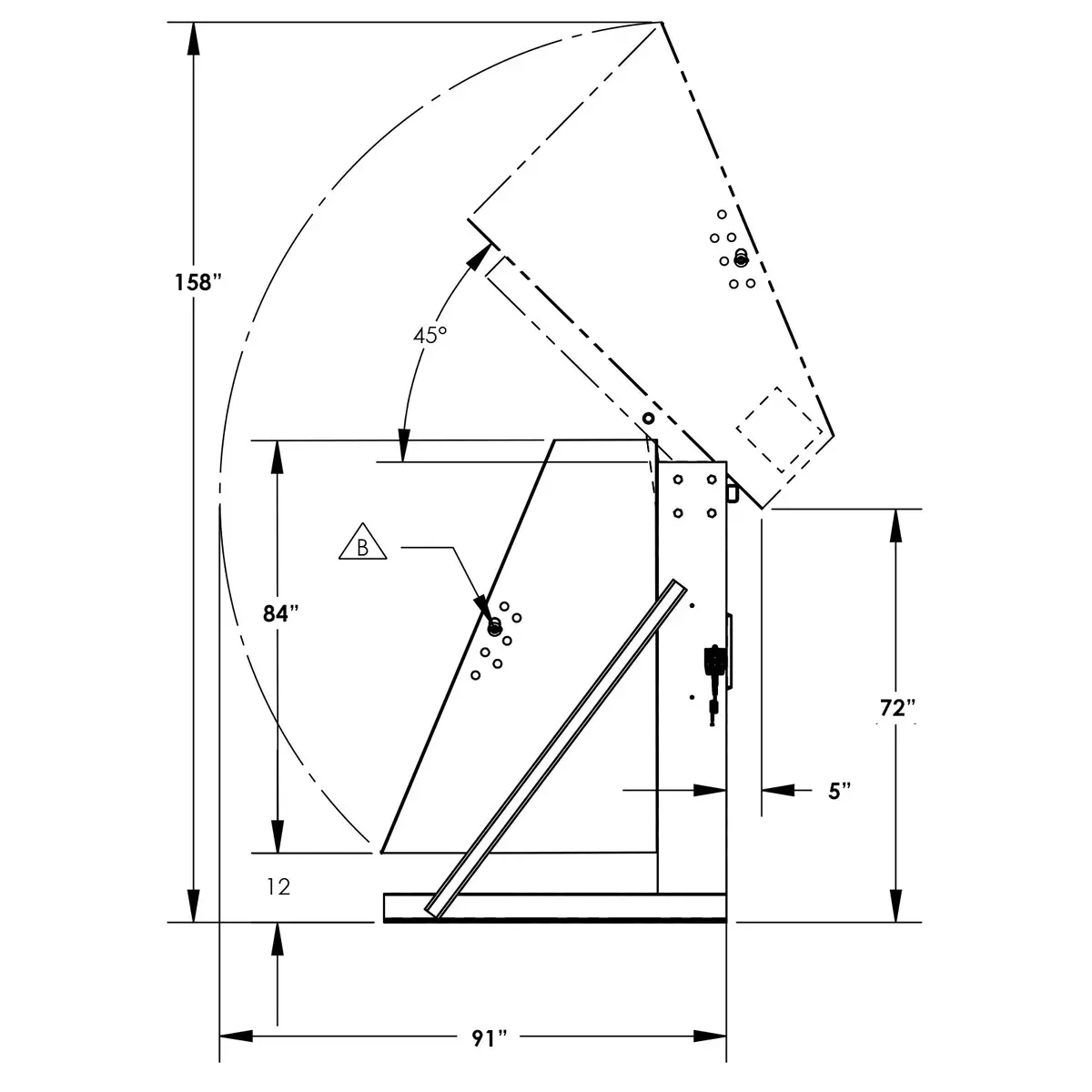

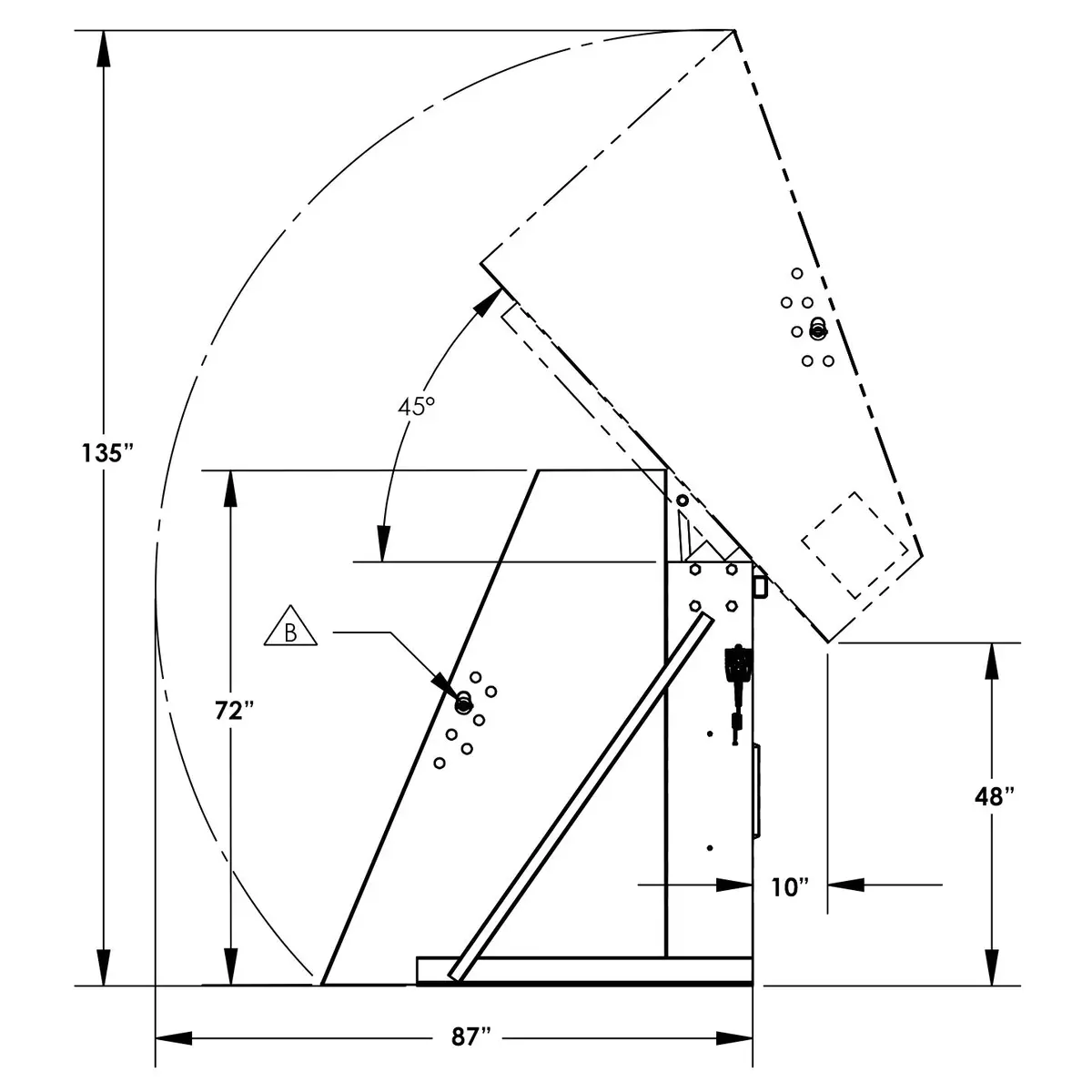

• Dump heights ranging from 36″ to 72″ (36″, 48″, 60″, 72″).
• 2,000/4,000/6,000 lb. capacities.
• Heavy duty 7 gauge steel construction.
