Description

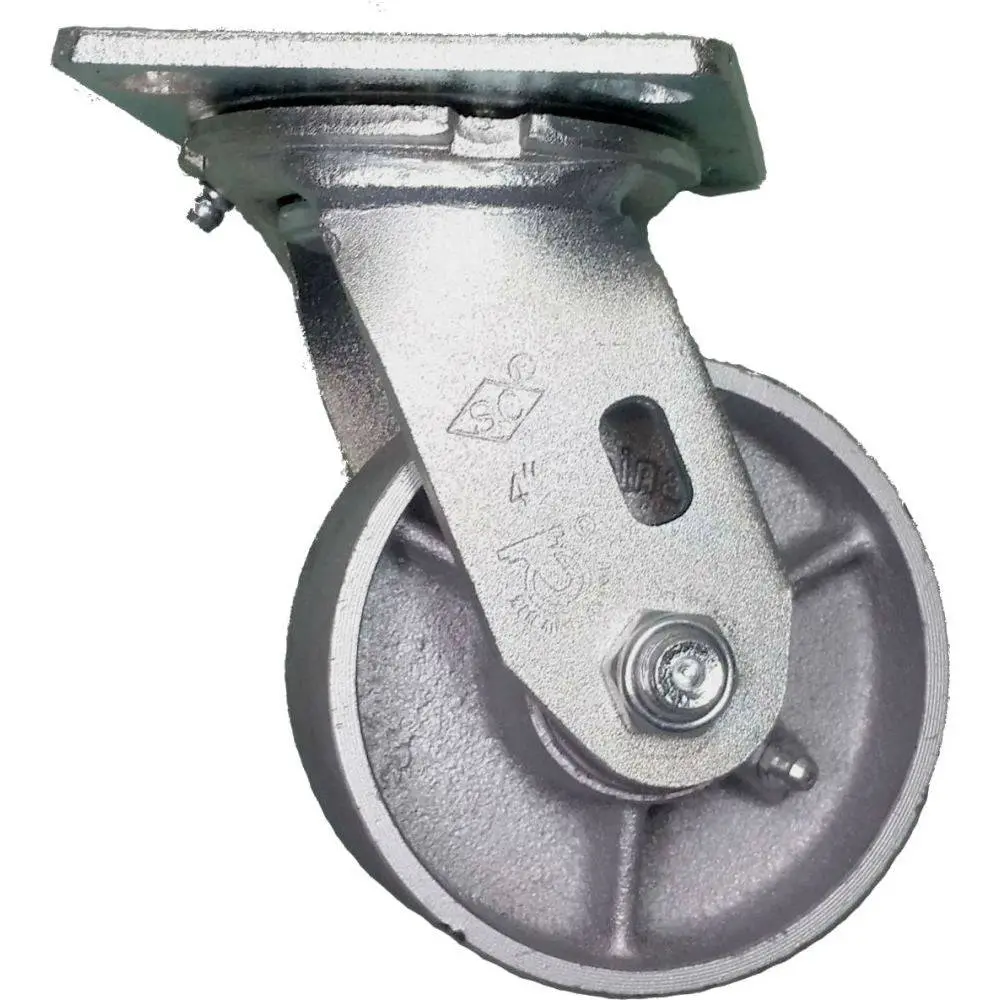

4″ x 2″ Semi-Steel Wheel Swivel Caster
Semi-Steel / Cast iron offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centered ride, tread edge is machined round.
Tread & Core: Steel Alloy
Bearing: Roller Bearing
Rig: Zinc-Plated Swivel Caster, 4″ x 4-1/2″ Mounting Plate
- Capacity: 700 Lbs.
- Color: Silver
- Hardness: Brinell 145
- Tensile Strength: 30,000 PSI
- Temperature Range: -45° F to 600° F
| Load Capacity | 700 Lbs. |
| Wheel Diameter | 4″ |
| Tread Width | 2″ |
| Tread Type | Steel Alloy |
| Core Type | Steel Alloy |
| Bearing Type | Roller Bearing |
| Wheel Color | Silver |
| Overall Height | 5-5/8″ |
| Swivel Radius | 3-1/4″ |
| Mounting Plate Size | 4″ x 4-1/2″ |
| Bolt Hole Pattern | 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ |
| Bolt Hole Diameter | 3/8″ |
| Tensile Strength | 30,000 PSI |
| Temperature Range | -45° F to 600° F |
