Description

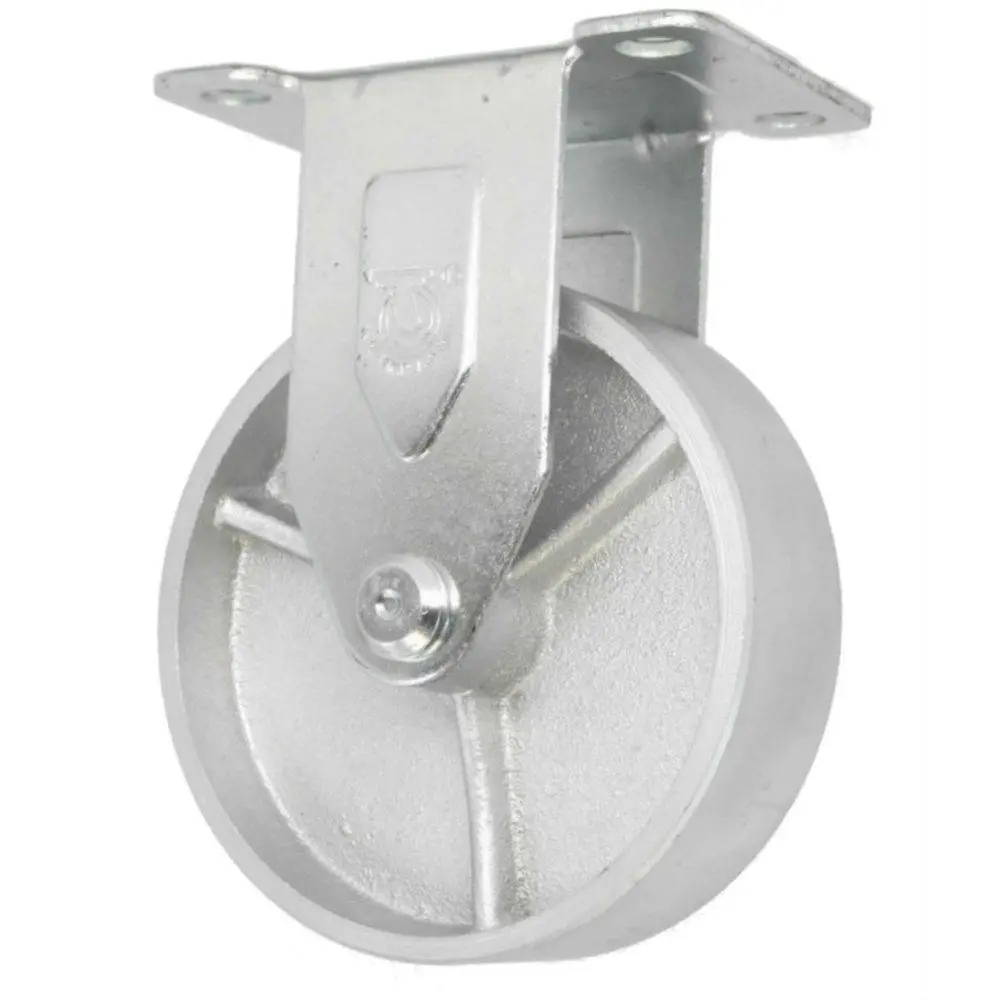

5″ x 1-1/4″ Semi-Steel Wheel Rigid Caster
Semi-Steel / Cast iron, offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.
Tread & Core: Steel Alloy
Bearing: Plain Bore
Rig: Zinc-Plated Rigid Caster, 2-3/8″ x 3-5/8″ Mounting Plate
- Capacity: 300 Lbs.
- Color: Silver
- Hardness: Brinell 145
- Tensile Strength: 30,000 PSI
- Temperature Range: -45° F to 600° F
| Load Capacity | 300 Lbs. |
| Wheel Diameter | 5″ |
| Tread Width | 1-1/4″ |
| Tread Type | Steel Alloy |
| Core Type | Steel Alloy |
| Bearing Type | Plain Bore |
| Wheel Color | Silver |
| Overall Height | 6-1/8″ |
| Plate Size | 2-3/8″ x 3-5/8″ |
| Bolt Hole Pattern | 1-3/4″ x 2-7/8″ slotted to 3″ |
| Bolt Hole Diameter | 5/16″ |
| Tensile Strength | 30,000 PSI |
| Temperature Range | -45° F to 600° F |
