Description

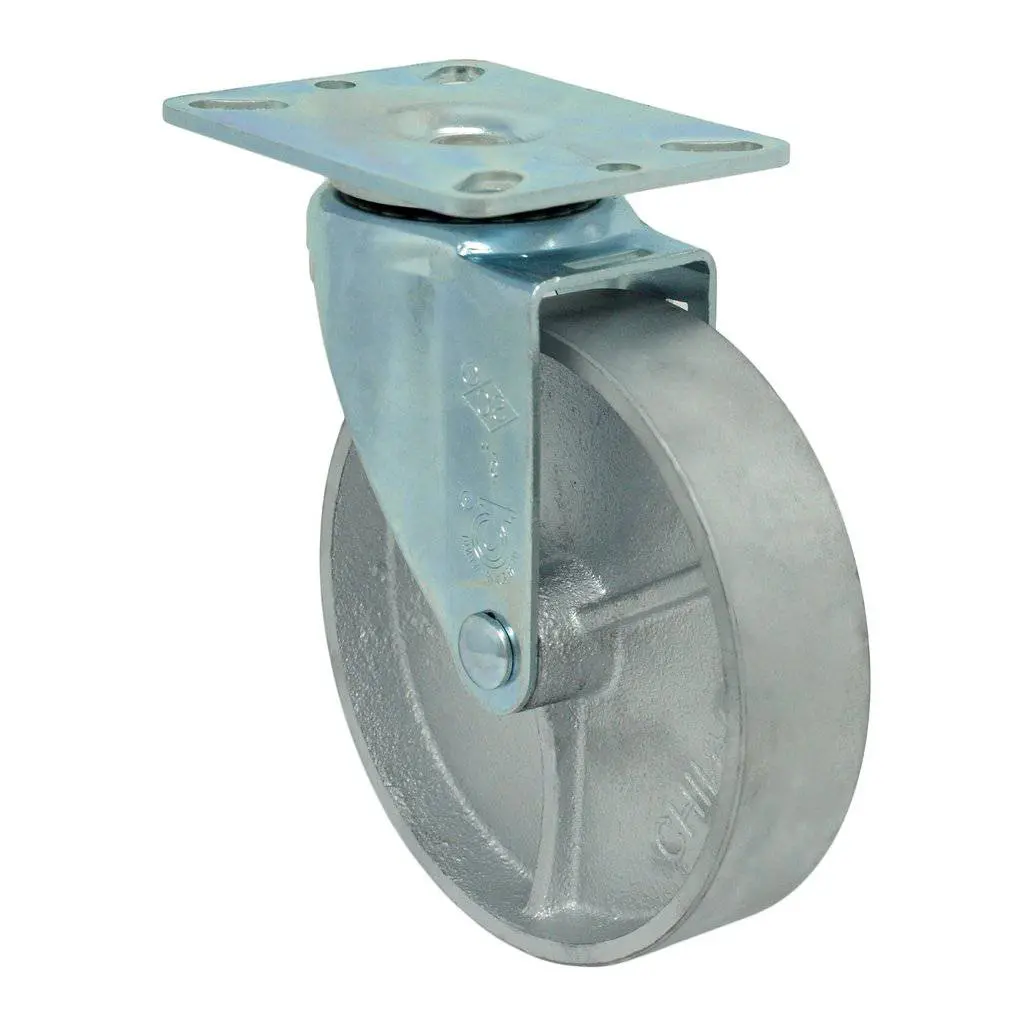

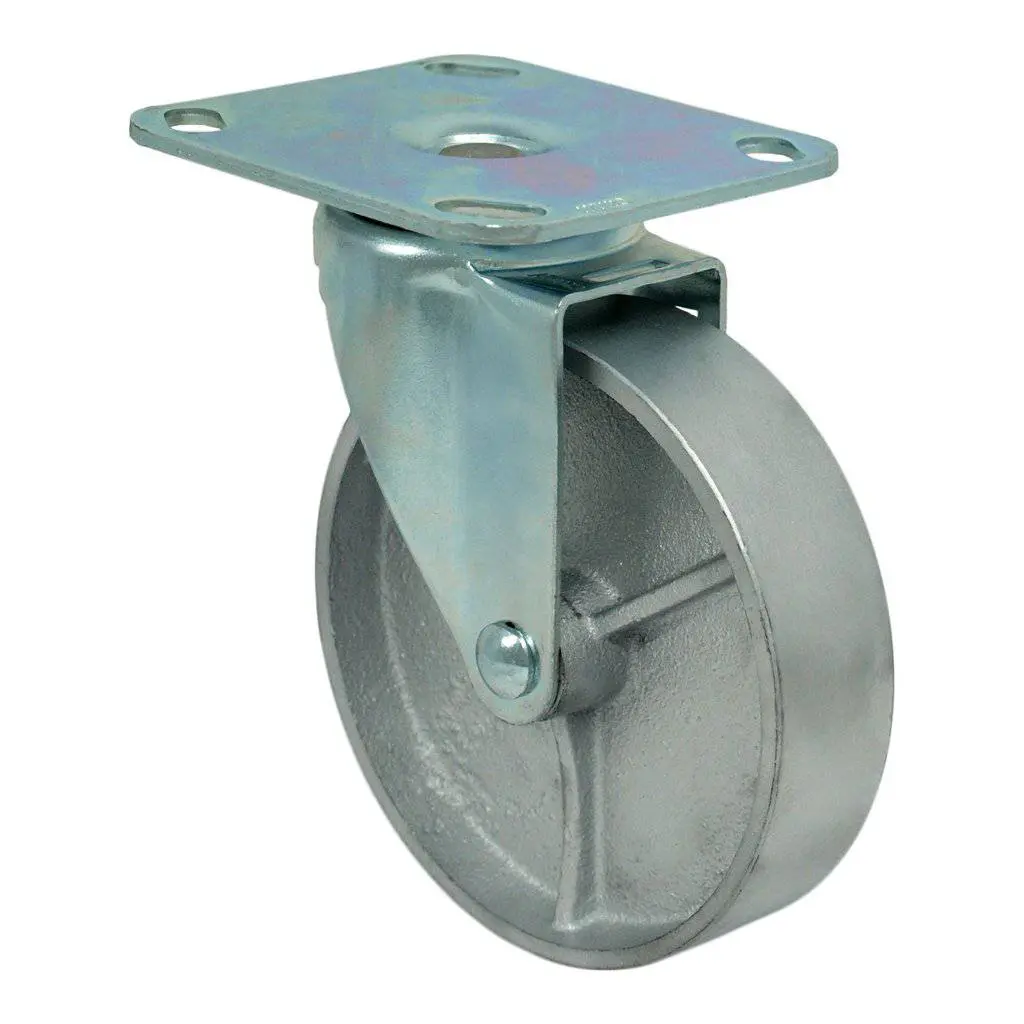

5″ x 1-1/4″ Semi-Steel Wheel Swivel Caster
Semi-Steel / Cast iron, offers a strong, durable, cost effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth, centrical ride, tread edge is machined round.
Tread & Core: Steel Alloy
Bearing: Plain Bore
Rig: Zinc-Plated Swivel Rig With Swivel Dust Cap, Multiple Mounting Plate Options
- Capacity: 300 Lbs.
- Color: Silver
- Hardness: Brinell 145
- Tensile Strength: 30,000 PSI
- Temperature Range: -45° F to 600° F
| Load Capacity | 300 Lbs. | |
| Wheel Diameter | 5″ | |
| Tread Width | 1-1/4″ | |
| Tread Type | Steel Alloy | |
| Core Type | Steel Alloy | |
| Bearing Type | Plain Bore | |
| Wheel Color | Silver | |
| Overall Height | 6-1/8″ | |
| Swivel Radius | 4″ | |
| 2-3/8″ x 3-5/8″ Plate | Bolt Hole Pattern | 1-3/4″ x 2-7/8″ slotted to 3″ |
| Bolt Hole Diameter | 5/16″ | |
| 3-1/8″ x 4-1/8″ Plate | Bolt Hole Pattern | 1-3/4″ x 2-15/16″ slotted to 2-3/8″ x 3-3/8″ |
| Bolt Hole Diameter | 3/8″ | |
| 4″ x 4-1/2″ Plate | Bolt Hole Pattern | 2-5/8″ x 3-5/8″” slotted to 3″ x 3″ |
| Bolt Hole Diameter | 3/8″ | |
| Tensile Strength | 30,000 PSI | |
| Temperature Range | -45° F to 600° F | |
