Adjustable Hydraulic Side Link: 32 11/16″ to 40 3/16″ Extended Length

Description

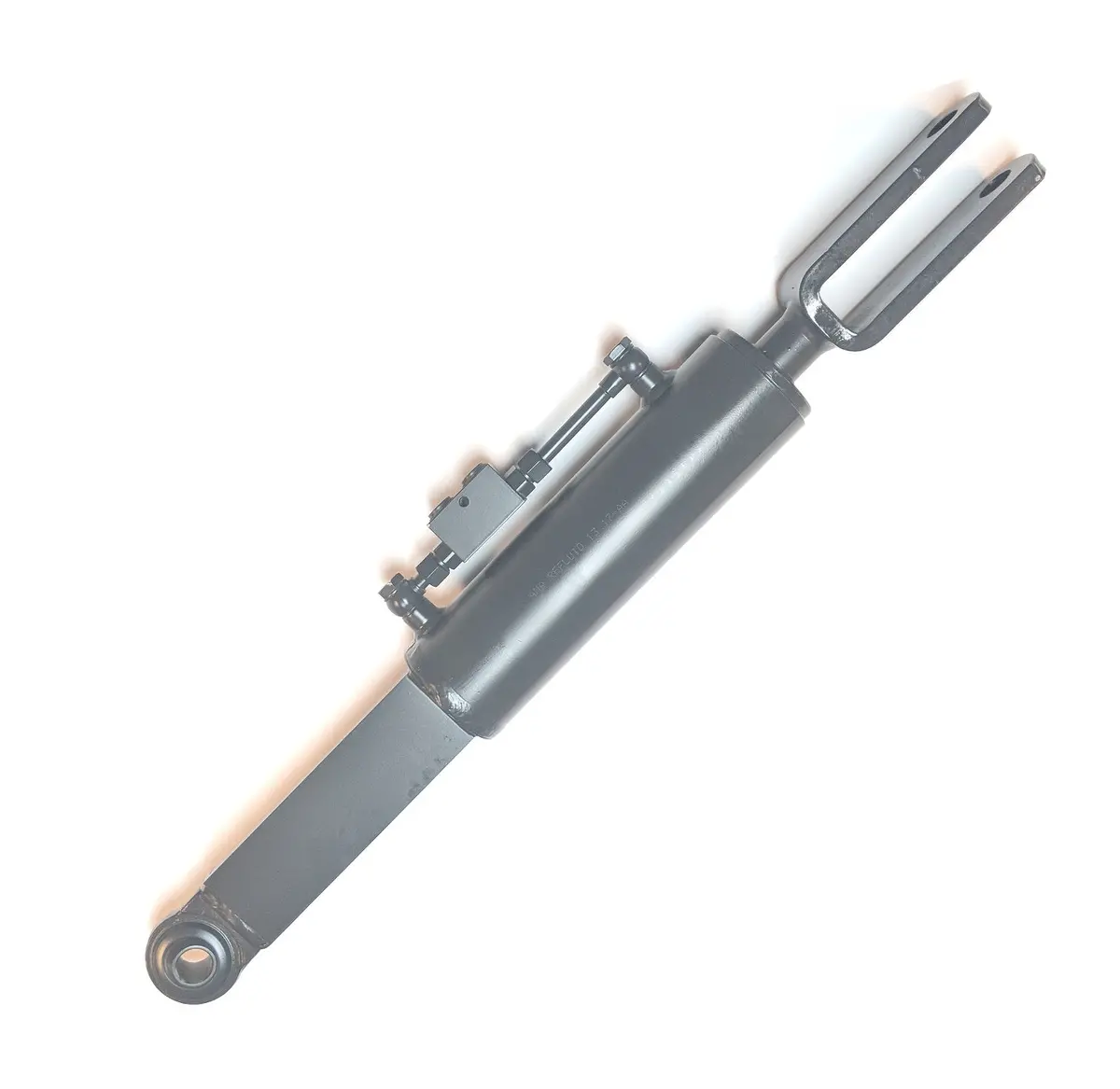

Hydraulic Side Link with 90° Front Fork and Extended Rear Connection

Part Number 36992

Pin hole (fork end): 1″
Pin hole (other end): 1″
Ball width: 1 3/8″
Fork width (internal): 1 5/8″
Min length: 32 11/16″
Max length: 40 3/16″
(Min and max lengths are taken from pin center to pin center)
Stroke: 7 1/2″
Cylinder bore: 3 1/8″
Rod diameter: 1 9/16″

Features:

Double-piloted check valve
Ports 3/8″ BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite

Fits:
Fiat model TS110
John Deere models 6800, 6810, 6900, 6910

Available hydraulic hose kits:

 – kit with 1/4″ valve type couplers – 36″ long  – kit with 1/2″ valve type couplers – 36″ long
– kit with 1/2″ ball type couplers – 36″ long  – kit with 1/2″ valve type couplers – 24″ long
– kit with 1/2″ ball type couplers – 24″ long
