Short-Reach Hydraulic Side Link: 15.38″–19.88″

Description

Hydraulic Side Link with Two Forks

Part Number 11194

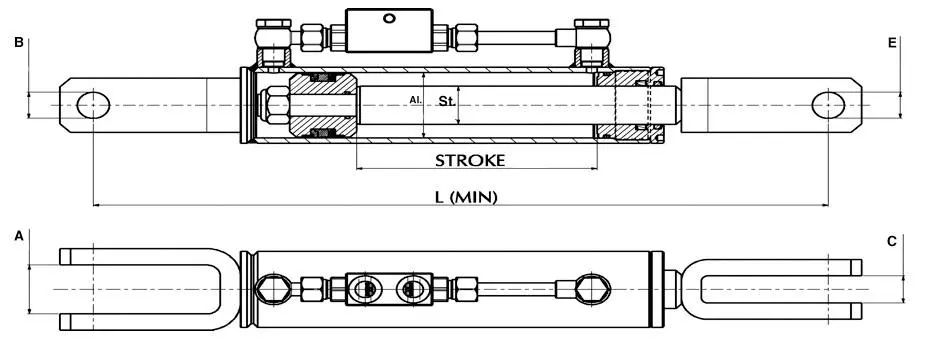

Pin hole (B): 15/16″
Pin hole (E): 3/4″
Internal fork width (A): 1 13/16″
Internal fork width (C): 1 1/16″
Min length (L): 15 3/8″
Max length: 19 7/8″
(Min and max lengths are taken from pin center to pin center)
Stroke: 4 1/2″
Cylinder bore: 2 3/8″
Rod diameter: 1 3/16″

Features:

Double-piloted check valve
Ports 3/8″ BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite

Available hydraulic hose kits:

 – kit with 1/4″ valve type couplers – 36″ long  – kit with 1/2″ valve type couplers – 36″ long
– kit with 1/2″ ball type couplers – 36″ long  – kit with 1/2″ valve type couplers – 24″ long
– kit with 1/2″ ball type couplers – 24″ long
