Description
Ariens Deluxe (30″) 306cc EFI Two-Stage Snow Blower
FEATURES:
306cc Ariens AX® EZ-Launch™ EFI (Electronic Fuel Injection) Engine
•Electronic governor to eliminate speed loss and provides ultra-quiet idle
•EFI fuel system eliminates maintenance costs, won’t gum up in off season
Starts In Two Simple Steps
•Just turn key and fire up, no more engine adjustments
•120-volt electric start w/recoil (cord not included)
•Designed to function in sub-zero conditions
Heavy Duty Disc-O-Matic Drive With Large Cast Iron Gear Case
•Easily shift into any of the six forward or two reverse speeds
Large Cast Iron Gear Case
•Provides additional power in extreme snow conditions
•Delivers more engine power to the auger to throw snow
Auto-Turn Steering Technology
•Senses change in direction automatically as you turn
•Adjusts power to the inside wheel to make turning easier
Chute Rotates Up To 200 Degrees
•Single lever adjusts direction and height of snow stream
•Adjust discharge chute up and down from the operator position
Interlocking Controls
•Locks both handles, freeing one hand for chute operation
SPECIFICATIONS
Engine
Engine Brand Ariens
Engine Type 4-Cycle OHV
CC 306 CCs
Starting System 120-Volt Electric /w Recoil
Fuel Tank 0.3 Gallons
Torque 15 lbs.
Auger Housing / Chute Control
Auger Diameter 14 Inches
Impeller Diameter 14 Inches
Profile Steel 3-Blade
Auger Material Serrated Steel
Chute Material Steel
Chute Rotation 2.5x Crank
Turning Radius 200 degrees
Max Throwing Distance 50 Feet
Clearing Width 30 Inches
Intake Height 21 Inches
Drive System
Drive Disc-O-Matic
Steering Auto-Turn
Gear Case Cast Iron
Reverse Speeds 2 Reverse
Tire Type Directional Snow Tread
Tire Size 16″ x 4.8″
Forward Speeds 6 Forward
Options
Remote Deflector Controls Yes
Drift Cutters Sold Separately
Front Weights Sold Separately
Interlocking Controls Yes
Hand Warmers Yes

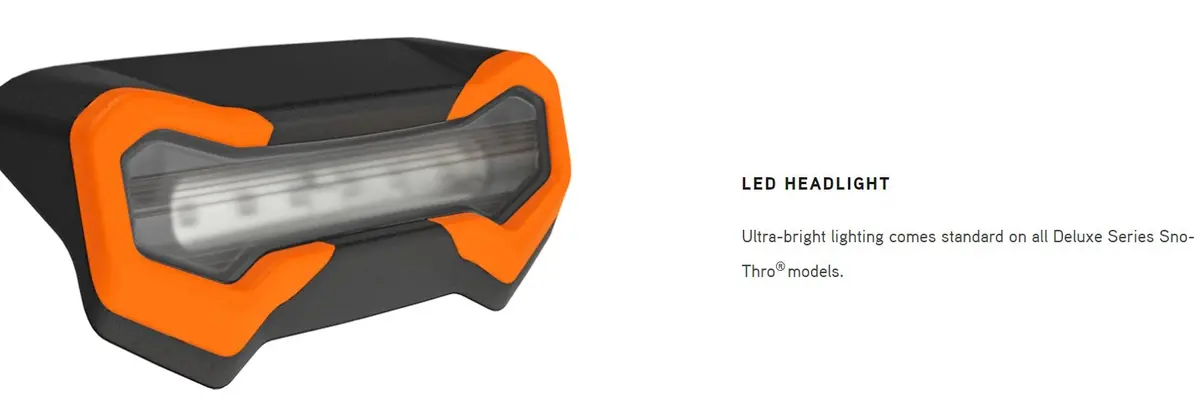

Headlights Halogen
Skid Shoes Included – Reversible
Overview
Weight 259 Pounds
Product Length 58.3 Inches
Product Width 32.4 Inches
Product Height 45.5 Inches
Consumer Warranty 3 Years
Commercial Warranty 90 Days
