Description
Counter-Balance Powered Stacker with 25″ Forks, 1000 lb Capacity
The Counter-Balance Powered Stacker, available is designed for efficient material handling with a capacity of 1000 lb. Featuring a Wesco manufactured hydraulic cylinder known for proven quality, this stacker meets ANSI B56.10 specifications and includes a battery and charger. The stacker comes with a 1-year warranty.

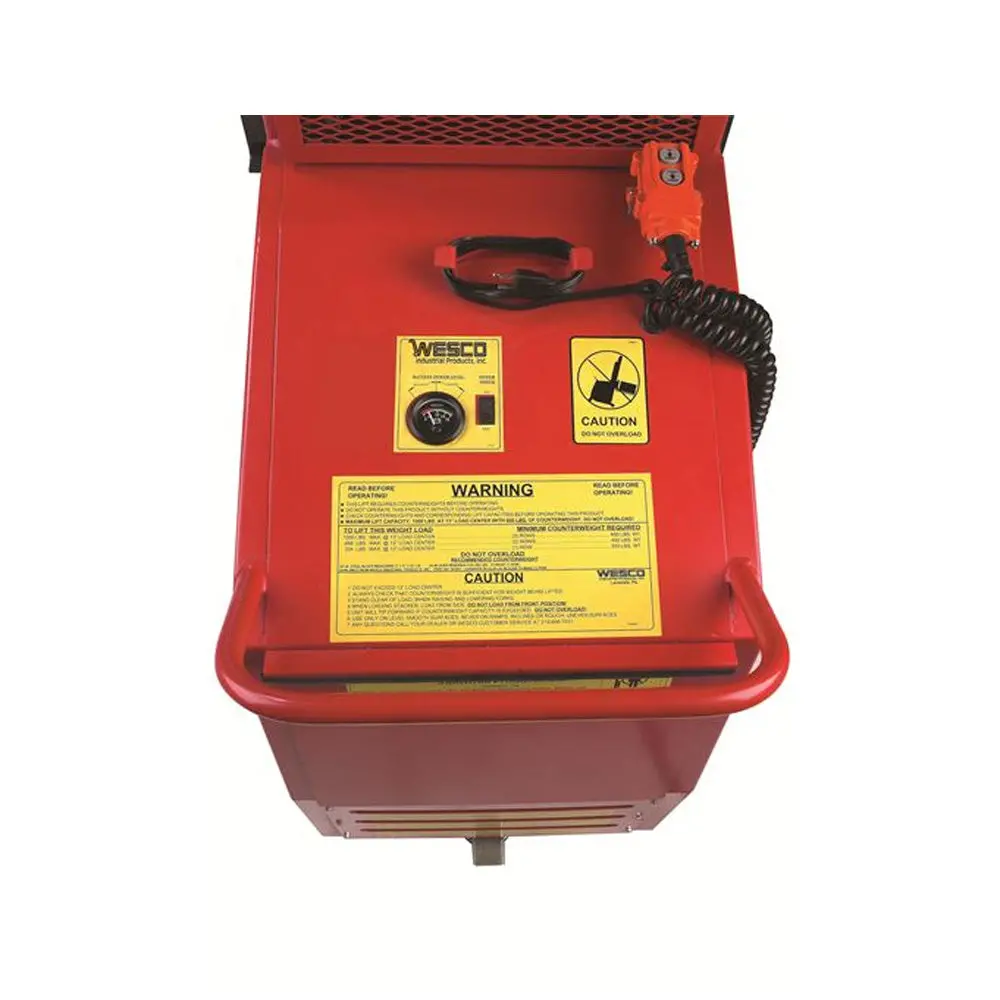

This stacker is equipped with a remote control, floor lock, and safety screen, which are standard on all models. It has a 12V DC battery with an easy-to-read illuminated battery status voltmeter at no extra cost. The unit can be used while recharging with a minimally charged battery, ensuring continuous operation.
The stacker is designed for various applications, including loading and unloading trucks, positioning dies, and feeding material to presses. It features 25″ long forks, with an option for 30″ long forks that have an 850 lb maximum capacity. The power lift manual drive is standard, with an optional power drive available.
The stacker features (2) 5″ polyolefin wheels and (2) 5″ polyolefin rear swivel casters for smooth movement and stability.
Specifications
| Specification | Part Number: 261037 | Part Number: 261038 | Part Number: 261039 |
|---|---|---|---|
| Model | PCBFL-56-25 | PCBFL-64-25 | PCBFL-76-25 |
| Lift Height | 56″ | 64″ | 76″ |
| Capacity | 1000 lb | 1000 lb | 1000 lb |
| Width Forks | 3″ | 3″ | 3″ |
| Length Forks | 25″ | 25″ | 25″ |
| Load Center | 13″ | 13″ | 13″ |
| Overall Width | 26.5″ | 26.5″ | 26.5″ |
| Overall Height | 72″ | 82.5″ | 92″ |
| Overall Depth | 59.5″ | 59.5″ | 59.5″ |
| Weight | 560 lb. Without Counter Weights | 574 lb. Without Counter Weights | 611 lb. Without Counter Weights |
| Wheel | (2) 5″ Polyolefin | (2) 5″ Polyolefin | (2) 5″ Polyolefin |
| Wheel Rear Swivel Casters | (2) 5″ Polyolefin Wheel | (2) 5″ Polyolefin Wheel | (2) 5″ Polyolefin Wheel |
