Description
Power Drive Stacker with 5″ x 35.25″ Adjustable Forks, 2200 lb Capacity
The Power Drive Stacker, model EKS-10, is designed for efficient material handling with a capacity of 2200 lb and a lift height of 98.25″. Featuring a dual chain lift, this stacker includes two 12-volt, 187 AH sealed batteries and a separate UL-approved charger. The power propulsion system takes the effort out of moving heavy loads and provides easy steering, with fingertip control for variable forward and reverse speeds.

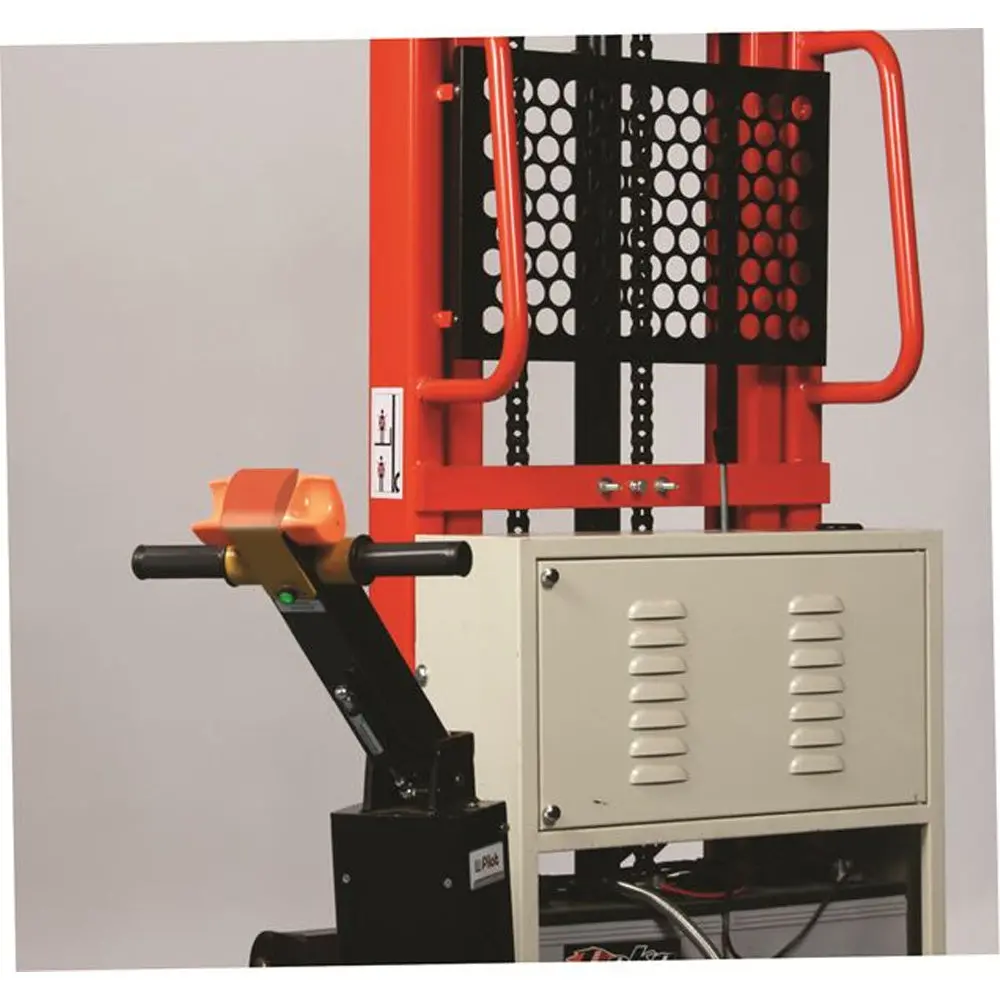

This stacker includes an automatic safety stop on top of the control post, which shuts down the unit when the safety stop contacts an obstacle. The load wheels, steering wheel, and drive wheel are all made of mold-on polyurethane. The adjustable forks offer flexibility in handling different loads but note that this stacker cannot be used with palletsonly skids without bottom slats.
All models come with a 6-month warranty on parts only, ensuring reliability and durability in material handling operations.
Specifications
| Specification | Part Number: 272943 |
|---|---|
| Model | EKS-10 |
| Capacity | 2200 lb |
| Width Forks | 5″ |
| Length Forks | 35.25″ |
| Load Center | 17.5″ |
| Overall Width | 35″ |
| Overall Height | 70″ to 117.5″ |
| Overall Depth | 64″ |
| Weight | 826 lb |
| Battery | (2) 12 V 187 Ah |
| Adjustable Outside Fork Spread | 12″ to 29″ |
| Lowered Fork Height in Standard Mode | 2.6″ |
| Raised Fork Height in Standard Mode | 98.25″ |
| Lowered Height of Mast | 70″ |
| Raised Height of Mast | 117.5″ |
