Description

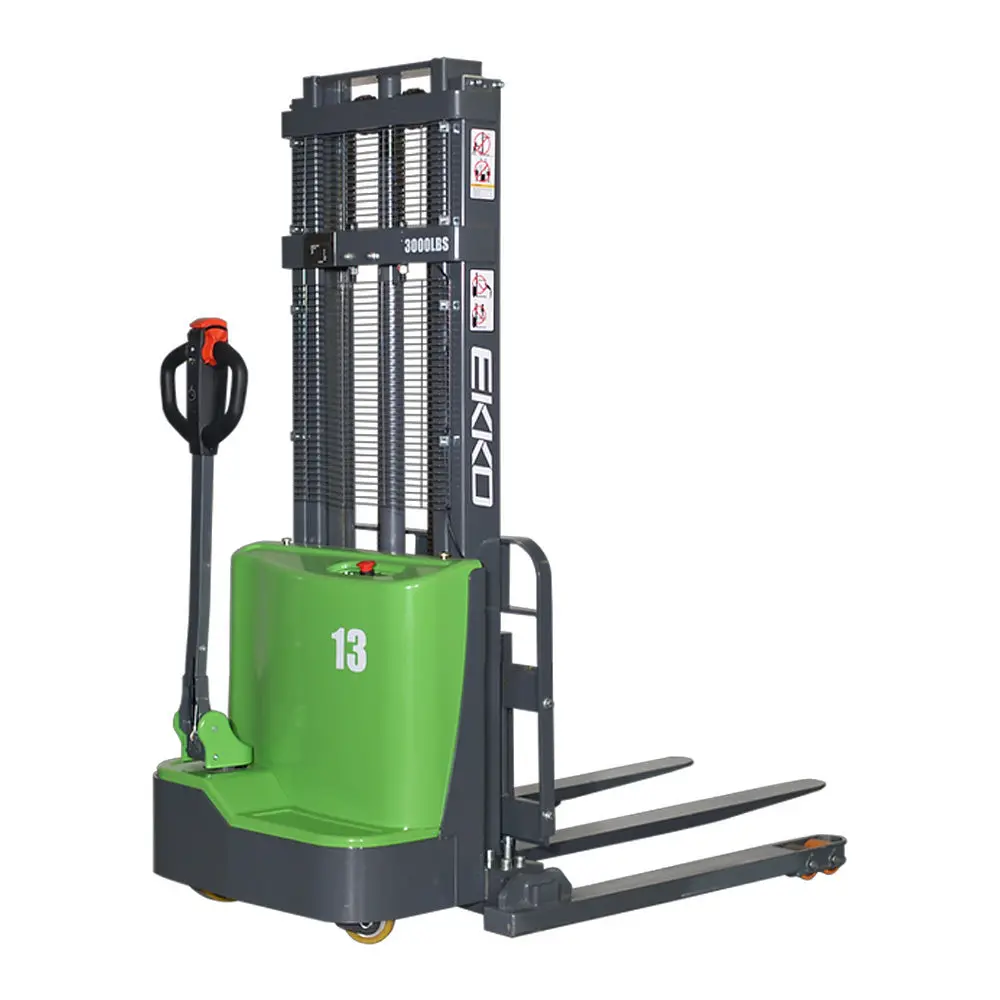

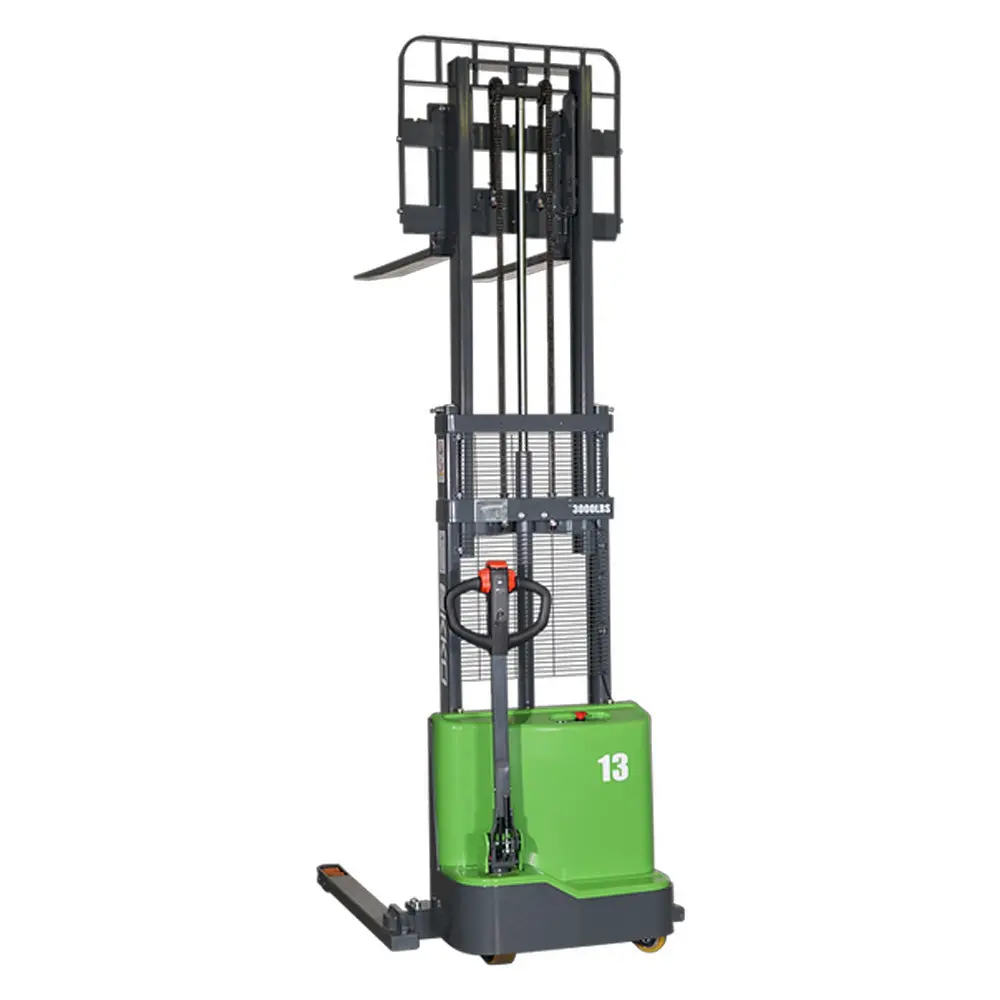

EKKO EB13C-Li Lithium Straddle Stacker
The EKKO EB13C-Li Lithium Straddle Stacker delivers the perfect balance of forklift power and walkie stacker flexibility, making it an excellent solution for loading docks, stock rooms, manufacturing areas, and warehouses. Available in three lift heights (118″, 138″, and 145″), it offers reliable, ergonomic handling with precision control in compact spaces.
Constructed from high-quality steel and engineered for consistent performance, this unit includes adjustable forks and straddle legs to fit a wide range of pallet sizes and materials. With a DC drive motor, Curtis controller, and lithium-ion battery technology, the EB13C-Li enhances operational efficiency with minimal maintenance and longer battery life.
Its robust 2800 lb capacity and advanced features like an internal 24V/20A charger and polyurethane wheels make this stacker ideal for indoor material handling tasks that demand strength, maneuverability, and zero emissions.
| Feature | Specification |
|---|---|
| Load Capacity | 2800 lbs |
| Max Lift Heights | 118″, 138″, or 145″ |
| Fork Length | 45.3 in |
| Fork Width (Single / Adjustable Range) | 4 in / 8.6-32.1 in |
| Lowered Fork Height | 2.56 in |
| Adjustable Legs | 35.4-51.2 in |
| Turning Radius | 56.1 in |
| Battery / Charger | 24V/50Ah Lithium & 24V/20A |
| Lift Motor / Drive Motor | 2.2 kW / 0.75 kW |
| Extended Mast Heights | 147.6″, 166.9″, 174.8″ |
| Lowered Mast Height | 85 in |
| Service Weight | 1380, 1400, or 1700 lbs |
