Description

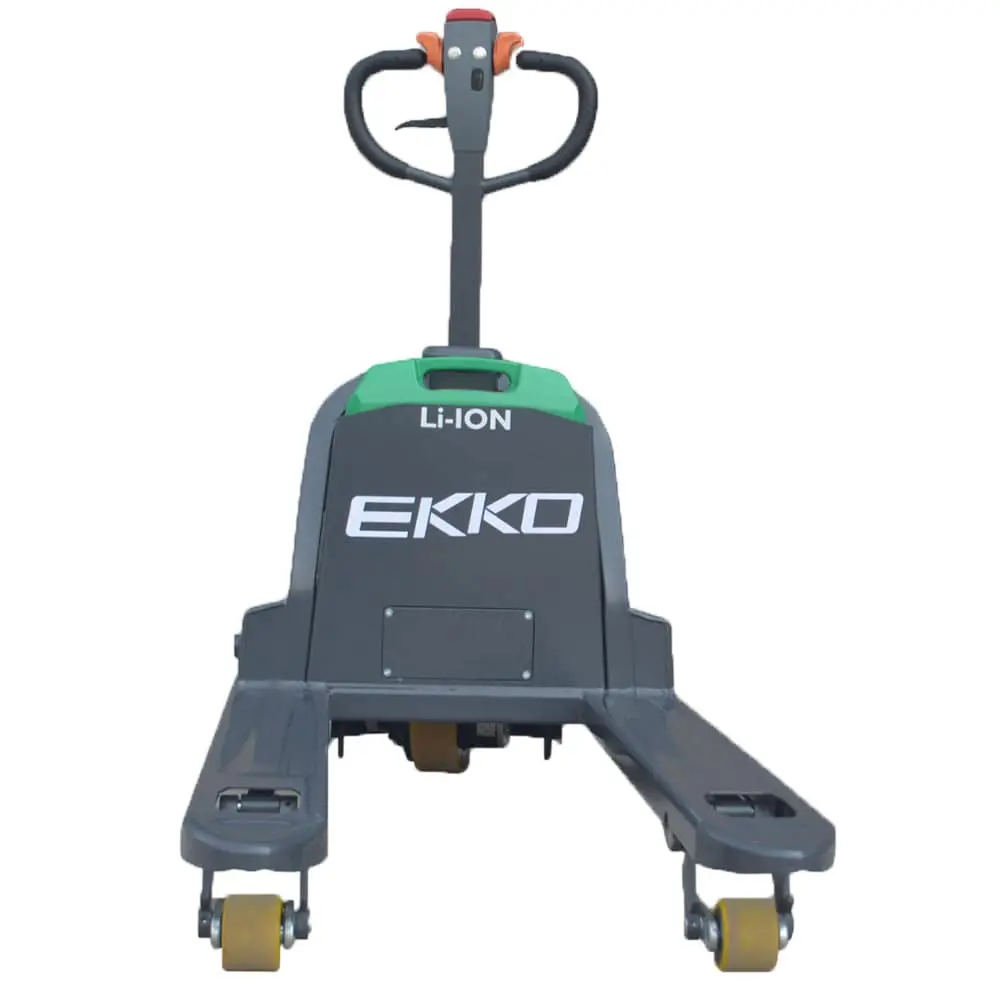

EKKO LIFTS Lithium-Ion Pallet Jack
The EKKO EP18SLI Lithium Iron Phosphate Electric Walkie Pallet Jack is a robust and versatile material handling tool, combining the simplicity of a standard pallet jack with the advanced functionality of full powerlifting and driving. It’s an excellent choice for tasks like loading and unloading trucks and operating in loading docks, stock rooms, manufacturing floors, and warehouses. With a solid load capacity of 4000 lbs and built from high-quality materials, the EP18SLI is engineered for reliable performance in various operational conditions.
Key Features:
- High Load Capacity: Capable of handling up to 4000 lbs, making it suitable for various industrial tasks.
- Lithium Iron Phosphate Battery: Powered by a 24V/40Ah LiFePO4 battery, ensuring efficient and long-lasting operation.
- Ergonomic Design: Includes an ergonomic handle and controls for ease of use and reduced operator fatigue.
- Pinwheel Capability: Allows for excellent maneuverability in tight spaces.
- Durable Construction: Made with high-quality steel and components for long-lasting use.
- Polyurethane Wheels: Ensure smooth movement and stability on various surfaces.
- Robust Steel Construction: Steel build with robotic welding for enhanced durability and strength.
- Warranty: Comes with a 3-year limited warranty for added peace of mind.
Specifications:
- Model: EP18SLI
- Service Weight: 370 lbs
- Fork Size: 27×48 inches
EKKO EP18SLI Electric Walkie Pallet Jack: A powerful, efficient, and easy-to-use solution for businesses seeking a high-performance electric pallet jack for their material handling needs.
- Lithium 24V Powered
- Load Capacity 4000 lb
- Fork Size 27×48
- Raised Height 7.87″
- Lowered Height 3.35″
- Pinwheel Capability
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- (1) Lithium Iron Battery LiFePO4 Included 24V/40Ah
- 3 Years Limited Warranty
| Model | EP18SLI | |
| Drive Type | Electric | |
| Manner of operation | Walkie | |
| Load Capacity | Q (LBS) | 4000 |
| Load Centre | c (Inch) | 23.6 |
| Distance between fork backrest and front wheel | x (Inch) | 39.92 |
| Wheel Base | y (Inch) | 51.69 |
| Tire material | PU | |
| Driving wheel size | w(Inch) | 8.27-2.76 |
| Bearing wheel size | w(Inch) | 3.15-3.35 |
| Qty of wheel, Front/Rear(x=driving wheel) | 1x/2 | |
| Tread | b11 (Inch) | 21.06 |
| Lifting Height | h3 (Inch) | 7.87 |
| The height of handle in the operation position | h14 (Inch) | 29.13/45.67 |
| Lowered fork height | h13 (Inch) | 3.35 |
| Overall Length | l1 (Inch) | 65.86 |
| Body Length | l2 (Inch) | 17.83 |
| Overall Width | b1/ b2 (Inch) | 26.97 |
| Fork Size | s/e/l (Inch) | 1.97/5.91/48.03 |
| Fork Width | b5 (Inch) | 26.97 |
| Min. Ground clearance | m2 (Inch) | 1.38 |
| Aisle width for pallets 39.37*47.24 crossways | Ast (Inch) | 73.78 |
| Aisle width for pallets 31.5*47.24 lengthways | Ast (Inch) | 75.75 |
| Turning Radius | Wa (Inch) | 57.8 |
| Driving Speed, load/unload | (km/h) | 4.2/4.5 |
| Maximum grade ability load/unload | (%) | 5/10 |
| Brake Type | Electromagnetic brake | |
| Drive Motor | (kW) | 0.75 |
| Lift Motor | (kW) | 0.8 |
| Lithium LiFePO4 Battery voltage rate capacity | (V/Ah) | 24/40 |
| Battery Weight(±5%) | LBS | 22.4 |
| Type of drive control | DC | |
| Noise level | (dB(A)) | 70 |
| Service Weight(with battery) | LBS | 370 |
