Heavy-Duty Warehouse Double Guard Rail Add-On Module

Price range: $86.18 through $99.74

Quantity
SKU: N/A Category: Brand:

Description

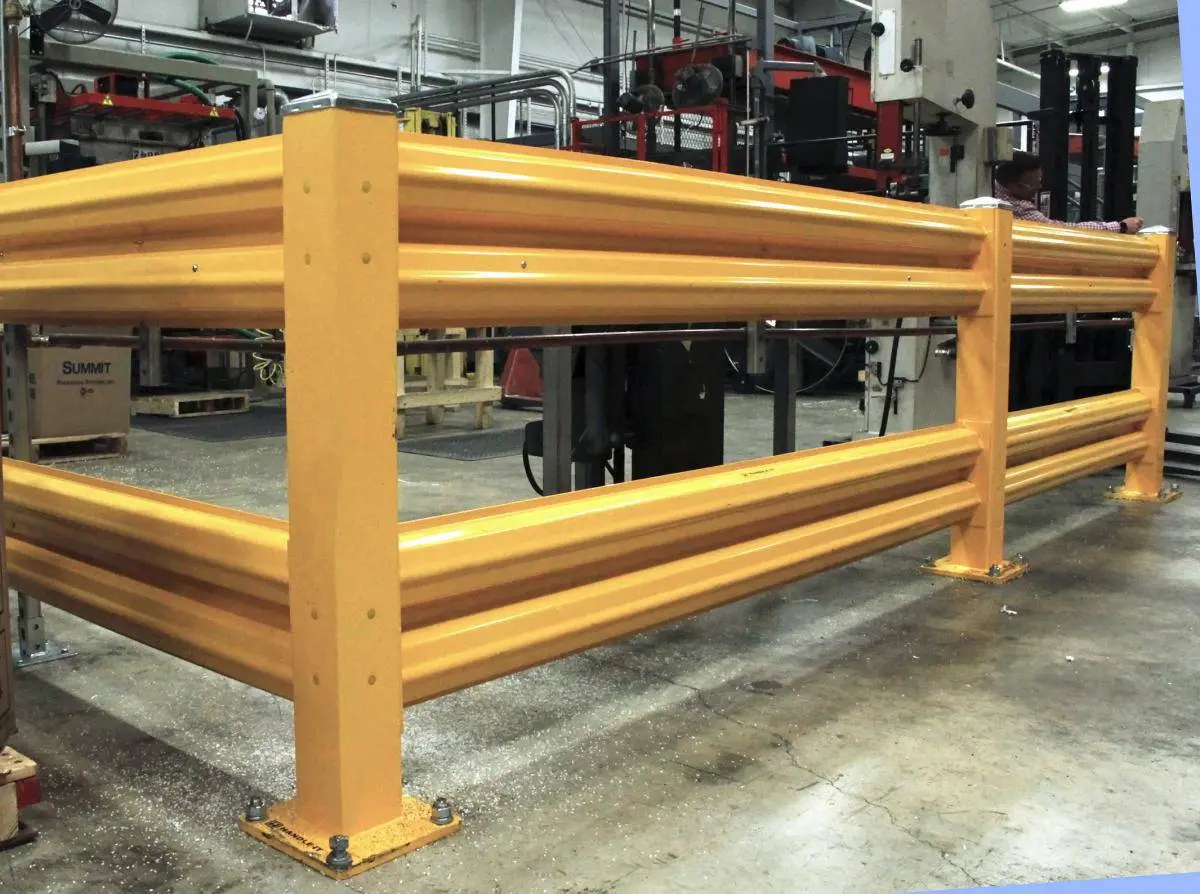

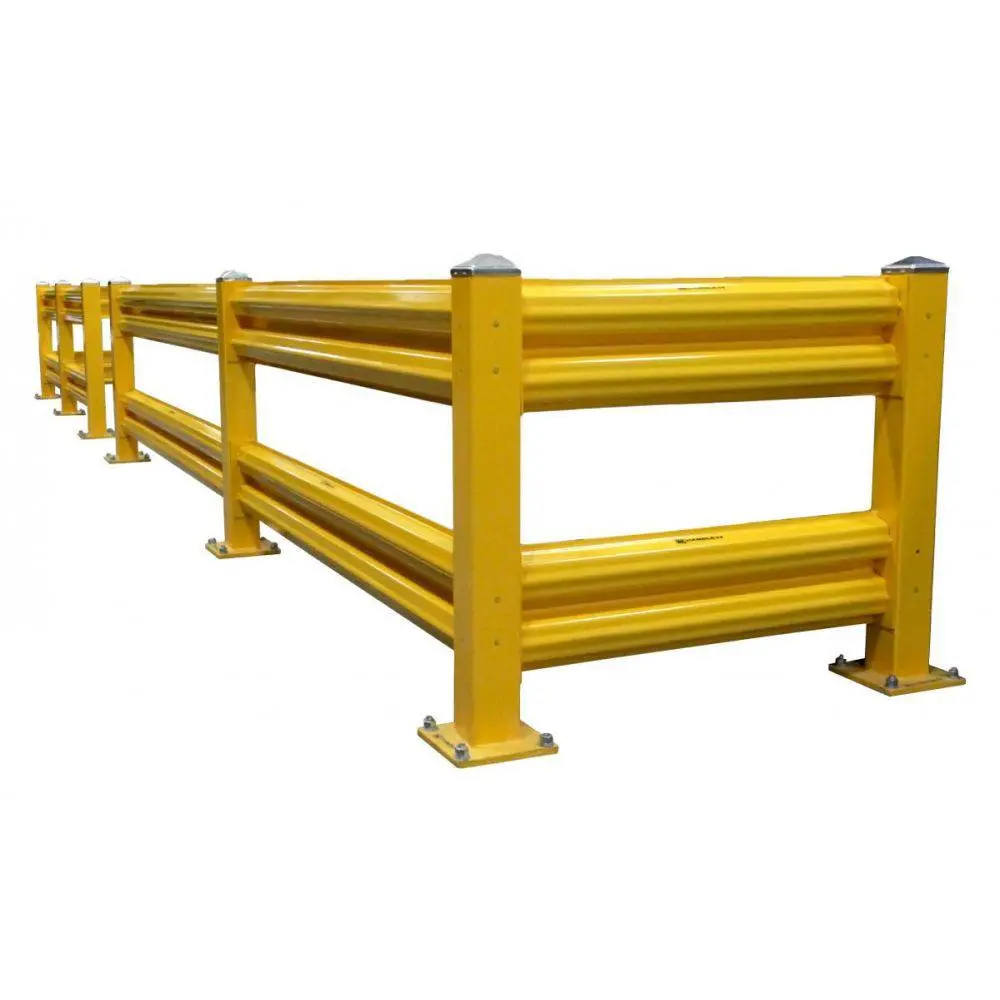

Handle-It Heavy Duty Double Guard Rail Add-On Unit

Handle-It Heavy Duty Warehouse Guard Rail Add-On unit comes with two guard rails and one post column, Safety Barriers, and Forklift Guardrails tested to withstand 10,000 lbs. at 4 mph. Quick Ship stock in Milwaukee WI warehouse. Available 2 – 10 ft. Long x 43″ Tall

To make a line of guard rail first select a Starter Unit, and then select the size and number of Add-On Units needed.

Lift Out Adapters are sold separately.

Adjustable Pedestrian Gates are sold separately.

Add On Kits Include

  • (1) 43″ Tall double rail post
  • (2) Heavy-duty rails (2′ – 10′ L)
  • All hardware for install

Features and Benefits

  • Tested to withstand 10,000 lbs. at 4 mph
  • Powder-coated Handle-It yellow yields high visibility in a durable finish
  • Columns are 4.75″ x 4.75″ steel square tube mounted on a 10″ x 10″ base plate
  • Our product design allows for faster installation cutting down on labor costs.
  • Drilled & pre-tapped posts have mounting on all four sides
  • Custom Sizes available for your special projects
  • All anchors and hardware/caps included
  • In Stock, items can ship within 24 hours.

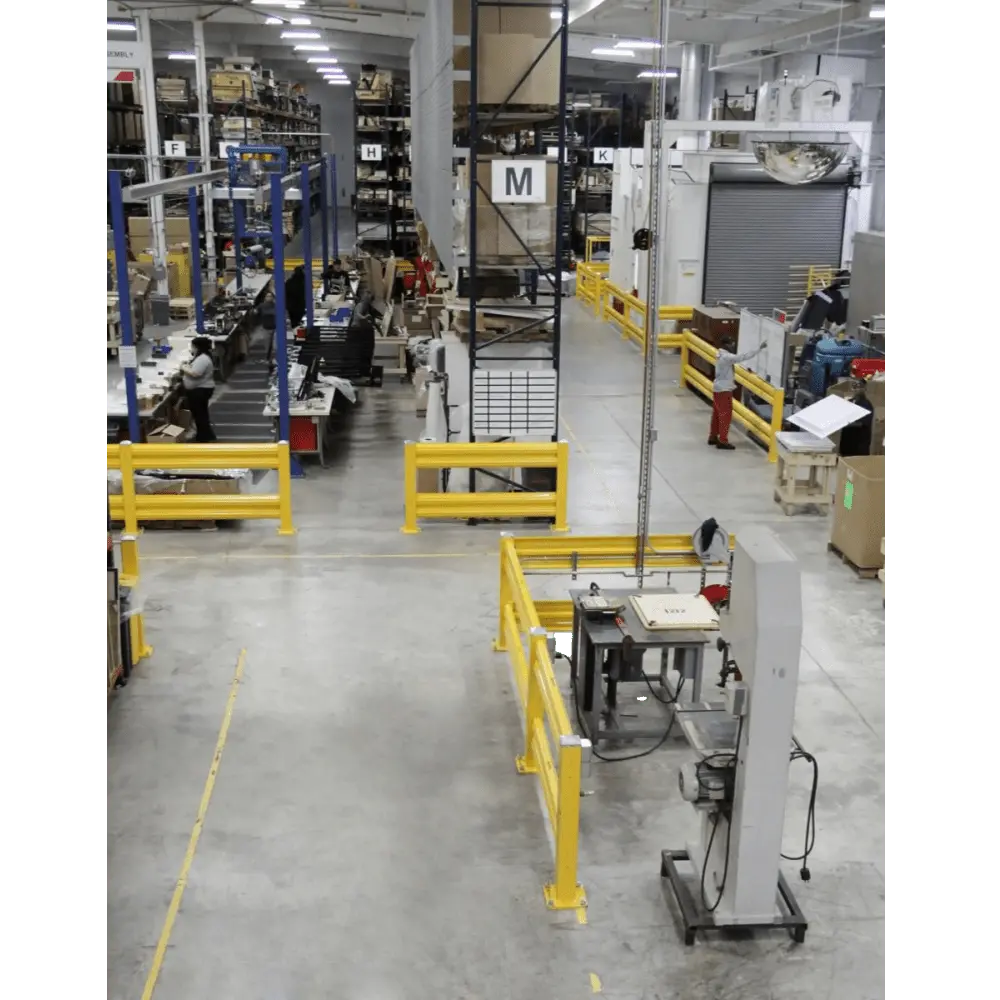

Areas for Install:

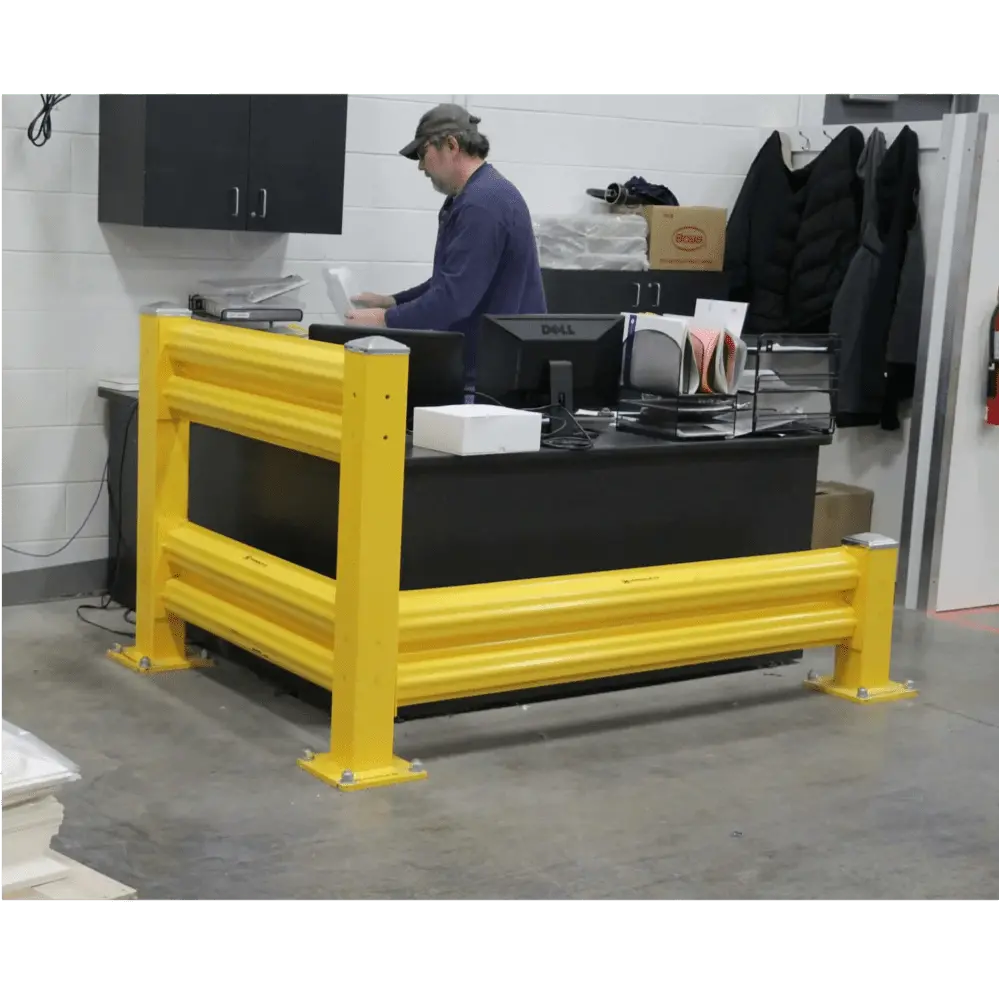

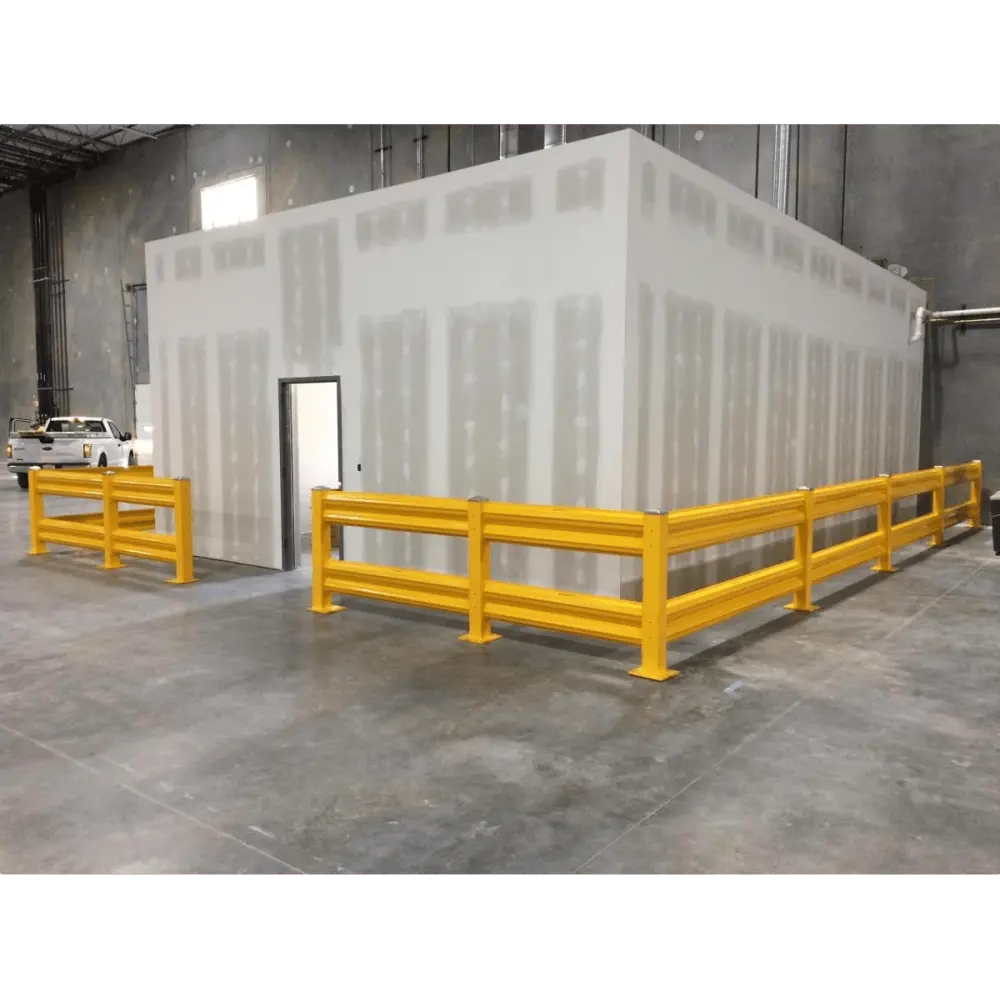

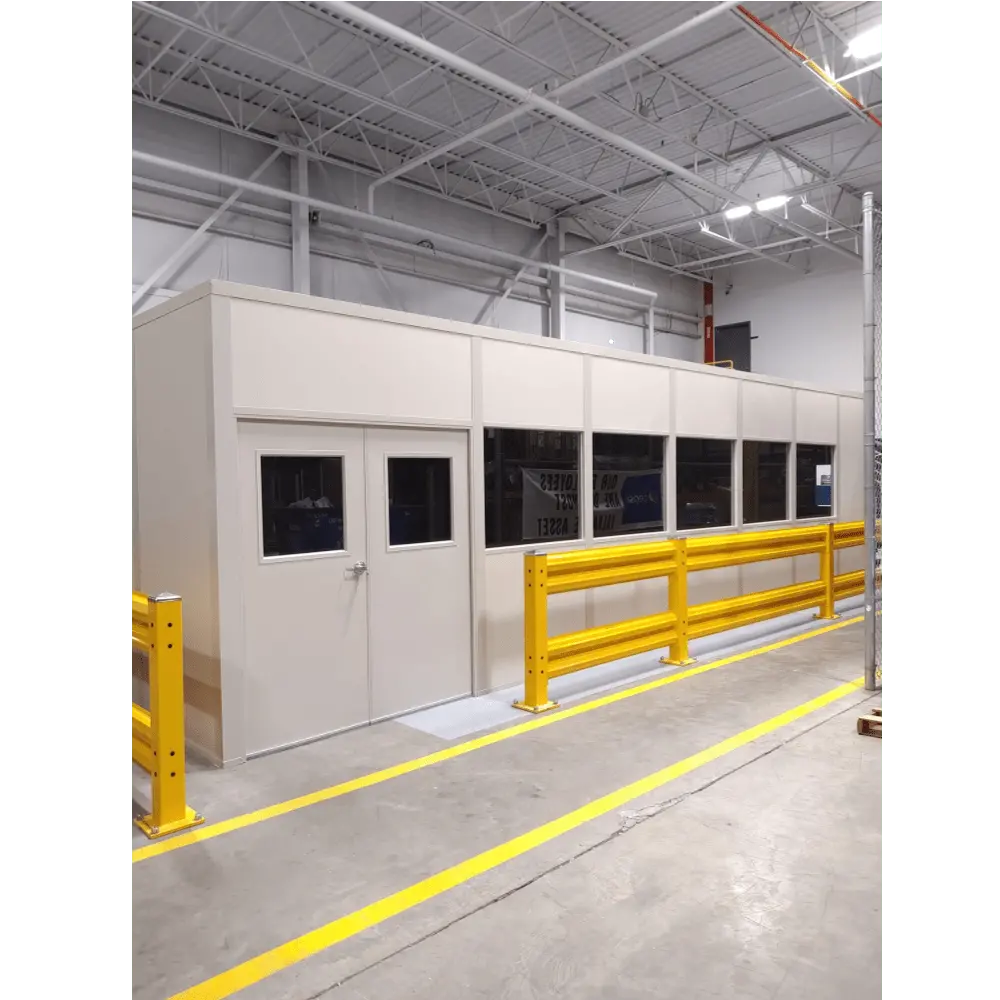

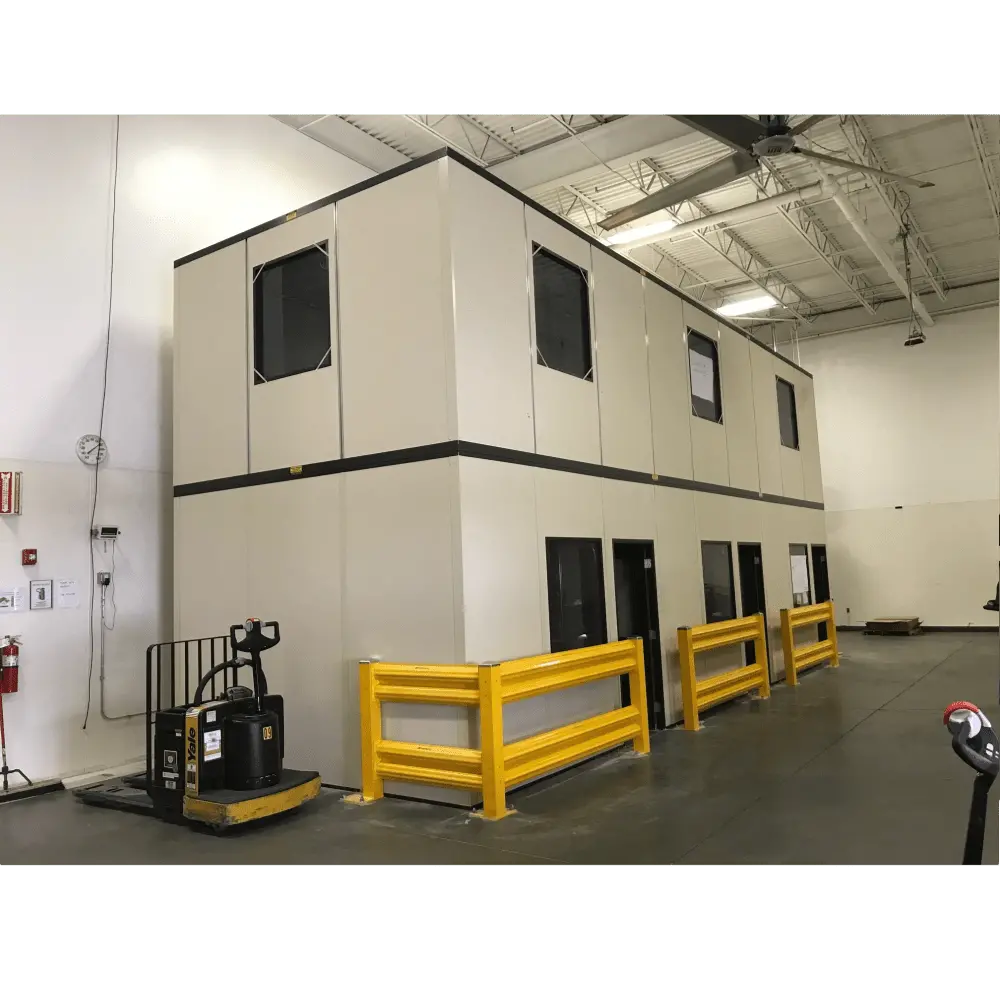

  • Around inplant offices and workstations
  • Along pedestrian walkways.
  • To protect sensitive machines
  • At the end of rack aisles
  • Adjacent to conveyor lines
  • Around mezzanines


(Click to enlarge)

Handle-It Guard Rail Dimensions
Rail Length Center to Center of Columns Outside to Outside of Base Plates
GR-10 10 Ft. Rail 115″ 120″ 130″
GR-9 9 Ft. Rail 103″ 108″ 118″
GR-8 8 Ft. Rail 91″ 96″ 106″
GR-7 7 Ft. Rail 79″ 84″ 94″
GR-6 6 Ft. Rail 67″ 72″ 82″
GR-5 5 Ft. Rail 55″ 60″ 70″
GR-4 4 Ft. Rail 43″ 48″ 58″
GR-3 3 Ft. Rail 31″ 36″ 46″
GR-2 2 Ft. Rail 19″ 24″ 34″
Column Height
Single Rail Post 18.5″
Double Rail Post 43″
Capacity 10,000 lbs. at 4 mph
Material 10-gauge steel
Model No. GR-4-A2
Finish Handle-It Yellow high visibility powder coat
